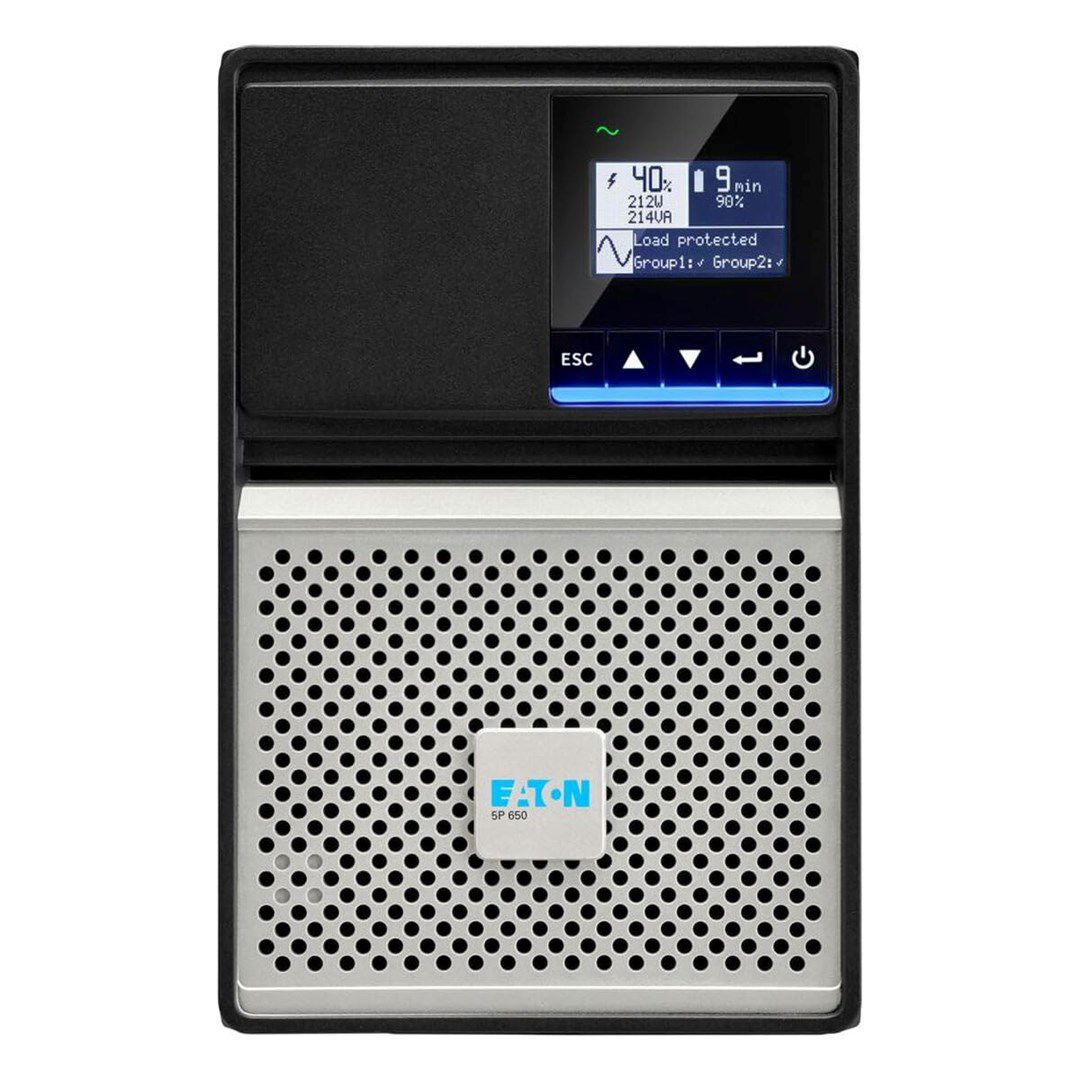

Eaton 5P Gen2 uninterruptible power supply (UPS) Line-Interactive 520 W 8 AC outlet(s)

Features
Number of output phases: 1
Input frequency: 47/70 Hz
Efficiency: 98.2%
Number of input phases: 1
Noise level: 35 dB
UPS topology: Line-Interactive
Auto shut-off: Yes
Waveform: Sine
Output frequency: 50/60 Hz
Input operation voltage (max): 294 V
Input operation voltage (min): 160 V
Output power: 520 W
Output operation voltage (max): 230 V

Design
Display type: LCD
Form factor: Tower
Product colour: Black

Operational conditions
Operating altitude: 0 - 3000 m
Operating relative humidity (H-H): 0 - 90%
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Width: 150 mm
Height: 233 mm
Weight: 7.9 kg
Depth: 345 mm

Packaging content
Cables included: USB cable
Quick installation guide: Yes
Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Certificates
Compliance certificates: Low Voltage Directive (LVD), RoHS, WEEE, Electromagnetic Compatibility (EMC)

Ports & interfaces
USB port: Yes
Serial interface: Yes
Power plug: C14 coupler
Serial interface type: RS-232
AC outlet types: C13 coupler
AC outlets quantity: 8 AC outlet(s)
Serial ports quantity: 1

Battery
Battery capacity: 9 Ah
Battery voltage: 12 V
Battery technology: Lead-Acid
Number of batteries supported: 1
