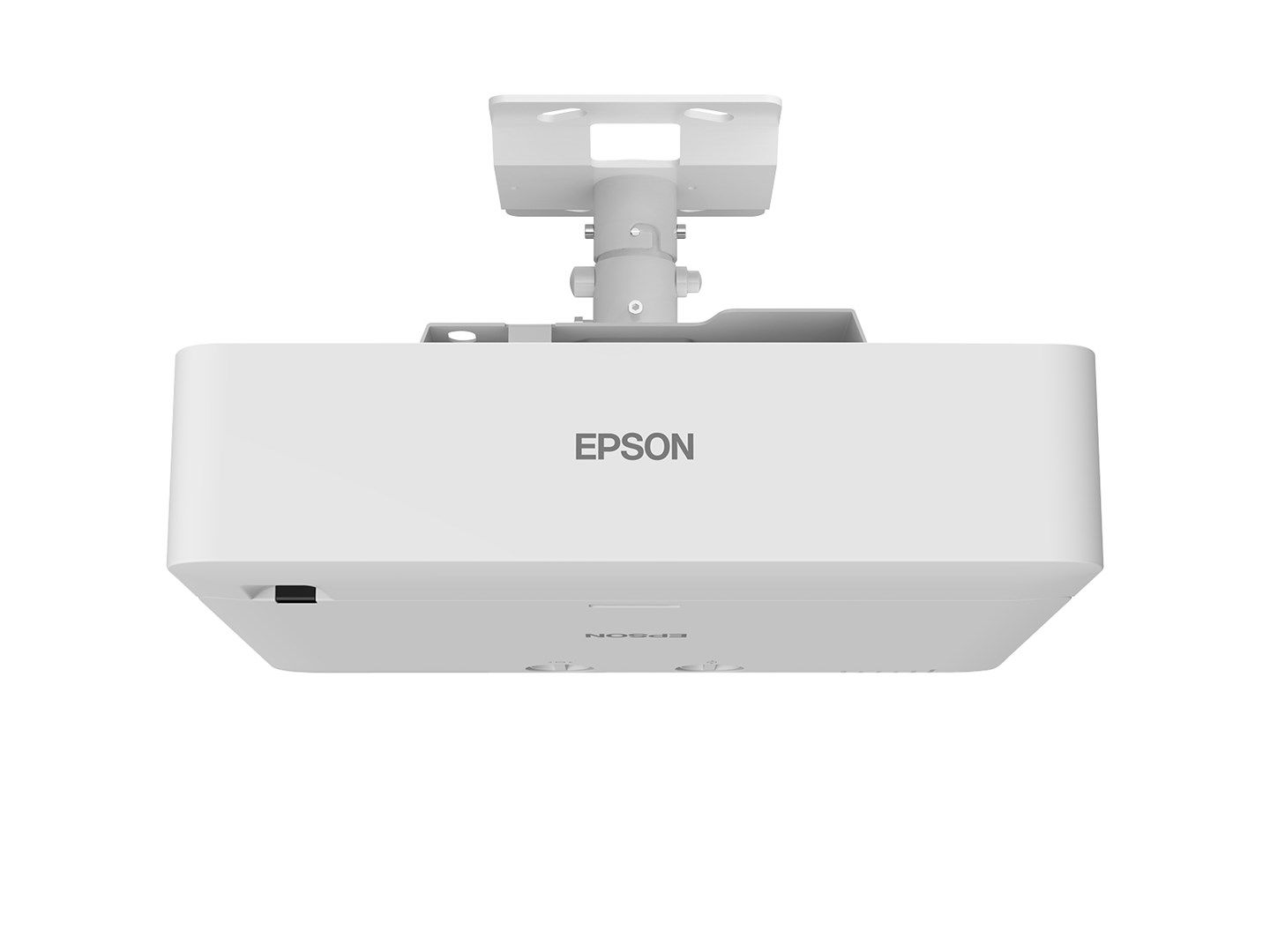

Epson EB-L530U data projector Standard throw projector 5200 ANSI lumens 3LCD WUXGA (1920x1200) White

Technical details
Sustainability certificates: TCO

Features
Noise level: 31 dB
Country of origin: Philippines
HDCP: Yes
Password protection: Yes
Interactive: No
Noise level (economic mode): 23 dB

Design
Cable lock slot type: Kensington
Product colour: White
Cable lock slot: Yes
Market positioning: Presentation
Placement: Ceiling, Desktop
Product type: Standard throw projector

Power
AC input frequency: 50 - 60 Hz
AC input voltage: 100-240 V
Power consumption (economy mode): 223 W
Power consumption (standby): 0.3 W
Power source: AC
Power consumption (typical): 293 W

Operational conditions
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -10 - 60 °C

Weight & dimensions
Package width: 540 mm
Weight: 8.2 kg
Package weight: 12 kg
Package depth: 565 mm
Package height: 210 mm
Width: 440 mm
Height: 136 mm
Depth: 339 mm

Network
Ethernet LAN (RJ-45) ports: 1
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Ethernet LAN: Yes
Miracast: Yes
Smart TV: No

Packaging content
Manual: Yes
Batteries included: Yes
Warranty card: Yes
Remote control included: Yes
Cables included: AC
WLAN adapter included: Yes

Display
Built-in display: No

Software
Software support: via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Multimedia
Built-in speaker(s): Yes
Number of built-in speakers: 1
RMS rated power: 10 W

Storage
Card reader integrated: No

Ports & interfaces
USB 2.0 ports quantity: 2
VGA (D-Sub) ports quantity: 2
PC Audio out: Yes
HDBaseT port: Yes
DVI port: No
PC Audio in: Yes
USB 2.0 Type-B ports quantity: 1
HDMI connector type: Full-size
AC (power) in: Yes
HDMI ports quantity: 3
Serial interface type: RS-232C

Other features
Supported network protocols: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Logistics data
Quantity per pack: 1 pc(s)
Products per pallet (UK): 14 pc(s)
Harmonized System (HS) code: 85286200
Products per pallet: 14 pc(s)

Video
Full HD: Yes
Video processing: 10 bit
Video colour modes: Presentation, Dynamic, Cinema, DICOM simulation mode, Multi-projection, sRGB

Lens system
Zoom type: Manual
Focus: Manual
Horizontal lens shift range: -20 - 20%
Vertical lens shift range: -50 - 50%
Focal length range: 20 - 31.8 mm
Zoom ratio: 1.6:1
Throw ratio: 1.35 - 2.2:1
Aperture range (F-F): 1.5 - 1.7
Zoom capability: Yes

Projector
Native aspect ratio: 16:10
Projection distance (tele): 2.4 - 23.8 m
Keystone correction, vertical: -30 - 30°
Projector brightness (economic mode): 3640 ANSI lumens
Screen size compatibility: 1270 - 12700 mm (50 - 500")
Projector native resolution: WUXGA (1920x1200)
Contrast ratio (typical): 2500000:1
Keystone correction, horizontal: -30 - 30°
Number of colours: 1.07 billion colours
Projection distance: 1.44 - 23.84 m
Projection technology: 3LCD
Projector brightness: 5200 ANSI lumens
Matrix size: 1.7 cm (0.67")
Projection distance (wide): 1.4 - 14.8 m
Smart projector: No

Light source
Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h
