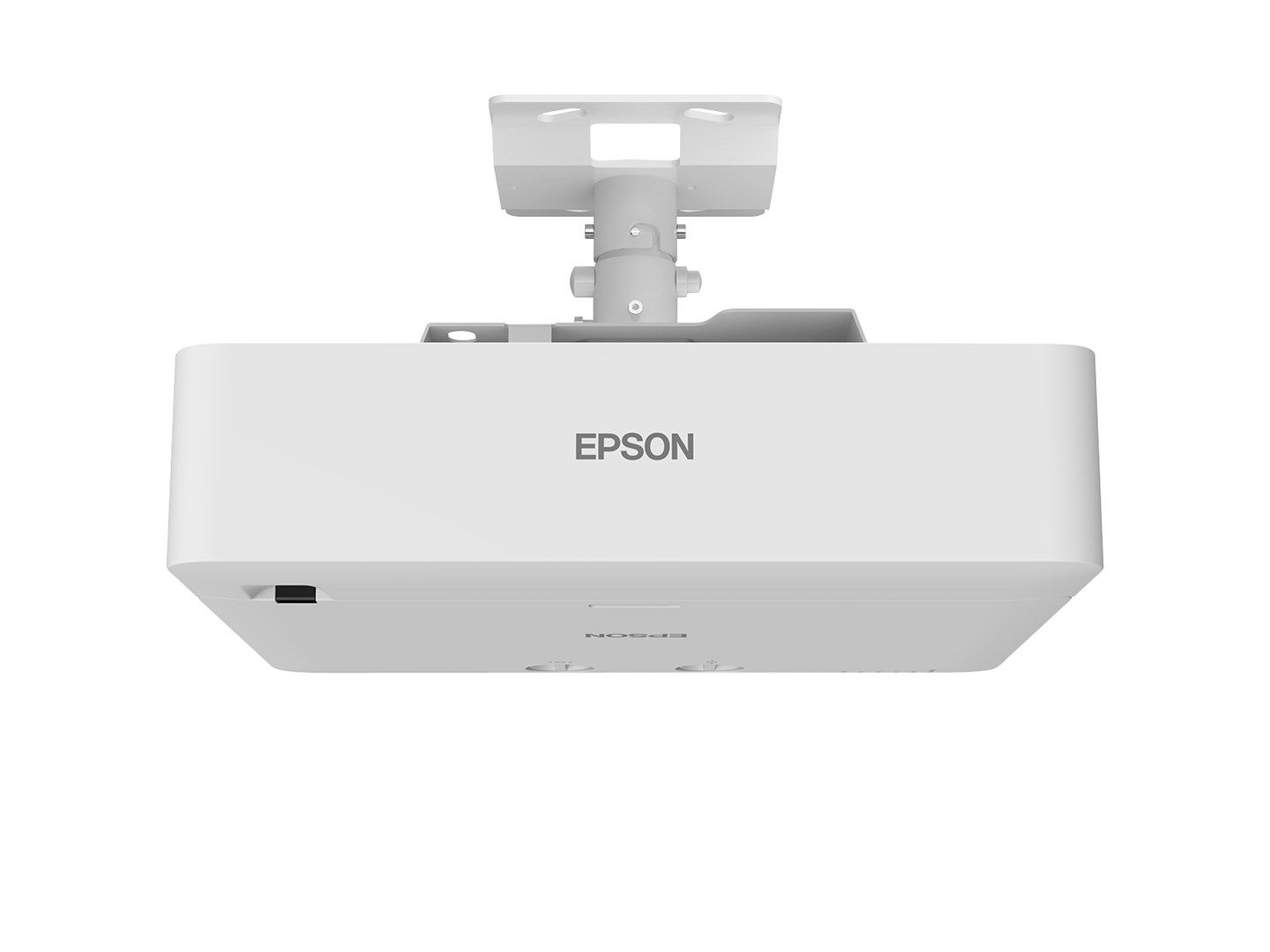

Epson EB-L630U data projector Standard throw projector 6200 ANSI lumens 3LCD WUXGA (1920x1200) White

Technical details
Sustainability certificates: TCO

Features
Noise level: 38 dB
Password protection: Yes
Interactive: No
Noise level (economic mode): 27 dB
HDCP: Yes

Design
Cable lock slot type: Kensington
Market positioning: Presentation
Placement: Ceiling, Desktop
Product type: Standard throw projector
Product colour: White
Cable lock slot: Yes

Power
Power source: AC
AC input frequency: 50 - 60 Hz
Power consumption (standby): 0.3 W
AC input voltage: 100-240 V
Power consumption (economy mode): 258 W
Power consumption (typical): 345 W

Operational conditions
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -10 - 60 °C

Weight & dimensions
Package width: 540 mm
Package weight: 12.3 kg
Width: 440 mm
Depth: 339 mm
Height: 136 mm
Package height: 210 mm
Weight: 8.4 kg
Package depth: 565 mm

Network
Wi-Fi: Yes
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN: Yes
Smart TV: No
Miracast: Yes
Ethernet LAN (RJ-45) ports: 1

Packaging content
Cables included: AC
Manual: Yes
Batteries included: Yes
Remote control included: Yes
WLAN adapter included: Yes
Warranty card: Yes

Display
Built-in display: No

Software
Software support: via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Multimedia
RMS rated power: 10 W
Number of built-in speakers: 1
Built-in speaker(s): Yes

Storage
Card reader integrated: No

Ports & interfaces
HDMI connector type: Full-size
AC (power) in: Yes
HDMI ports quantity: 3
DVI port: No
USB 2.0 ports quantity: 2
VGA (D-Sub) ports quantity: 2
PC Audio out: Yes
Serial interface type: RS-232C
HDBaseT port: Yes
USB 2.0 Type-B ports quantity: 1
PC Audio in: Yes

Other features
Supported network protocols: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Logistics data
Harmonized System (HS) code: 85286200
Products per pallet: 14 pc(s)
Quantity per pack: 1 pc(s)
Products per pallet (UK): 14 pc(s)

Video
Full HD: Yes
Video processing: 10 bit
Video colour modes: Presentation, Multi-projection, sRGB, DICOM simulation mode, Dynamic, Cinema

Lens system
Focal length range: 20 - 31.8 mm
Vertical lens shift range: -50 - 50%
Zoom type: Manual
Throw ratio: 1.35 - 2.2:1
Zoom ratio: 1.6:1
Horizontal lens shift range: -20 - 20%
Aperture range (F-F): 1.5 - 1.7
Focus: Manual
Zoom capability: Yes

Projector
Projector brightness: 6200 ANSI lumens
Projector brightness (economic mode): 4340 ANSI lumens
Contrast ratio (typical): 2500000:1
Keystone correction, horizontal: -30 - 30°
Matrix size: 1.7 cm (0.67")
Native aspect ratio: 16:10
Screen size compatibility: 1270 - 12700 mm (50 - 500")
Number of colours: 1.07 billion colours
Projection distance: 1.44 - 23.84 m
Projection distance (tele): 2.4 - 23.8 m
Keystone correction, vertical: -30 - 30°
Smart projector: No
Projector native resolution: WUXGA (1920x1200)
Projection technology: 3LCD
Projection distance (wide): 1.4 - 14.8 m

Light source
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h
Light source type: Laser
