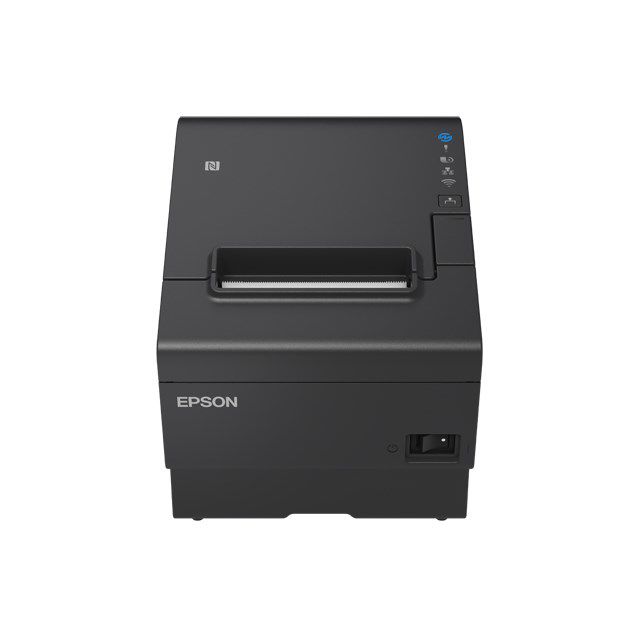

Epson TM-T88VII (112) 180 x 180 DPI Wired & Wireless Thermal POS printer

Technical details
Changeable interface: Y
Lifetime: 20000000 lines
Built-in sensors details: Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor
Certification: CE

Features
Wall mountable: Yes
Country of origin: Philippines
Sound pressure level (printing): 52 dB
Autocutter durability: 3 million cuts
Mean time between failures (MTBF): 360000 h
Sound pressure level (standby): 52 dB
Mounting position: Horizontal/Vertical
Paper save function: Yes
Print head life: 200 km

Design
Product colour: Black

Power
Power consumption (standby): 1.4 W, 1400 mA
Power consumption (printing): 27.9 W
Power consumption: 27900 mA
AC input voltage: 24 V

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 5 - 45 °C
Storage relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -10 - 50 °C

Weight & dimensions
Width: 145 mm
Weight: 1.7 kg
Depth: 195 mm
Height: 148 mm

Network
Ethernet LAN: Yes

System requirements
Pre-installed software: Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print

Packaging data
Package weight: 2.7 kg
Package width: 195 mm
Package height: 260 mm
Package depth: 235 mm
Quantity per pack: 1 pc(s)

Ports & interfaces
Serial interface type: RS-232
Near Field Communication (NFC): Yes
Serial interface: Yes
USB connector: USB Type-A / USB Type-B
USB port: Yes
Connectivity technology: Wired & Wireless
Optional connectivity: Wireless LAN

Other features
Buffer size: 4 KB
Mean cycles between failures (MCBF): 70000000

Printing
Maximum resolution: 180 x 180 DPI
Print technology: Thermal
Character sets: ANK
Type: POS printer
Print speed: 500 mm/sec
Character size: 1.41 x 3.39 mm
Printing characters: 2D barcode, Text, Barcode, Graphic

Logistics data
Pallet weight (UK): 0 g
Products per pallet: 112 pc(s)
Pallet gross weight: 0 g
Harmonized System (HS) code: 84433210
Products per pallet (UK): 168 pc(s)

Paper handling
Media thickness: 48 - 80 mm
Printing media thickness: 48 - 80 µm
Supported paper width: 80 mm
Maximum roll diameter: 8.3 cm

Print technology
Column capacity: 42/56
