Technical details
Sustainability compliance: Yes
Compliance certificates: RoHS, CE
Power
Power source type: USB
AC adapter output voltage: 5 V
Operational conditions
Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 70 °C
Weight & dimensions
Depth: 79 mm
Width: 70 mm
Height: 173 mm
Weight: 102 g
Performance
Protection features: Drop proof, Water resistant
International Protection (IP) code: IP54
Housing material: Acrylonitrile butadiene styrene (ABS)
Product colour: Black
Country of origin: China
Packaging data
Stand included: Yes
Package width: 150 mm
Package height: 100 mm
Package depth: 207 mm
Package weight: 460 g
Ports & interfaces
Standard interfaces: USB
Connectivity technology: Wired
Cable length: 1.8 m
Other features
Mobile operating systems supported: iOS, Android
Linux operating systems supported: Yes
Windows operating systems supported: Windows 10 Education x64, Windows XP Home x64, Windows XP Professional x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows XP Home, Windows 10 Home, Windows 7 Starter x64, Windows 10 Enterprise x64, Windows 10 x64, Windows 10, Windows 10 IOT Core, Windows 7 Enterprise, Windows 10 Pro x64, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 IoT Enterprise, Windows 7 Home Basic, Windows 7 Ultimate, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 11, Windows 10 Education, Windows XP Professional, Windows XP, Windows 10 Home x64, Windows 7 Professional x64, Windows 11 Enterprise, Windows 7 Professional, Windows 7
Quick start guide: Yes
Logistics data
Master (outer) case width: 440 mm
Products per master (outer) case: 30 pc(s)
Master (outer) case length: 485 mm
Harmonized System (HS) code: 8471900090
Master (outer) case height: 525 mm
Master (outer) case gross weight: 15.5 kg
Scanning
Linear (1D) barcodes supported: Code 39, Standard 2 of 5, Codabar, ISSN, Code 93, Industrial 2 of 5, GS1 DataBar, Code 128, EAN 128, Plessey, UPC-E, ISBN, Interleaved 2 of 5, Code 11, EAN-13, EAN-8, UPC-A, Matrix 2 of 5, MSI-Plessey
2D (matrix & stacked) barcodes supported: QR Code, PDF417, Data Matrix
Read rate (max): 220 reads/s
Working distance: 150 cm
Scanner resolution: 5 mm
Sensor type: LED
Scanner type: 1D/2D
Tilt reading angle: 0 - 360°
Yaw reading angle: -35 - 35°
Pitch reading angle: -30 - 30°
Trigger mode: Auto-induction, Continuous, Manual

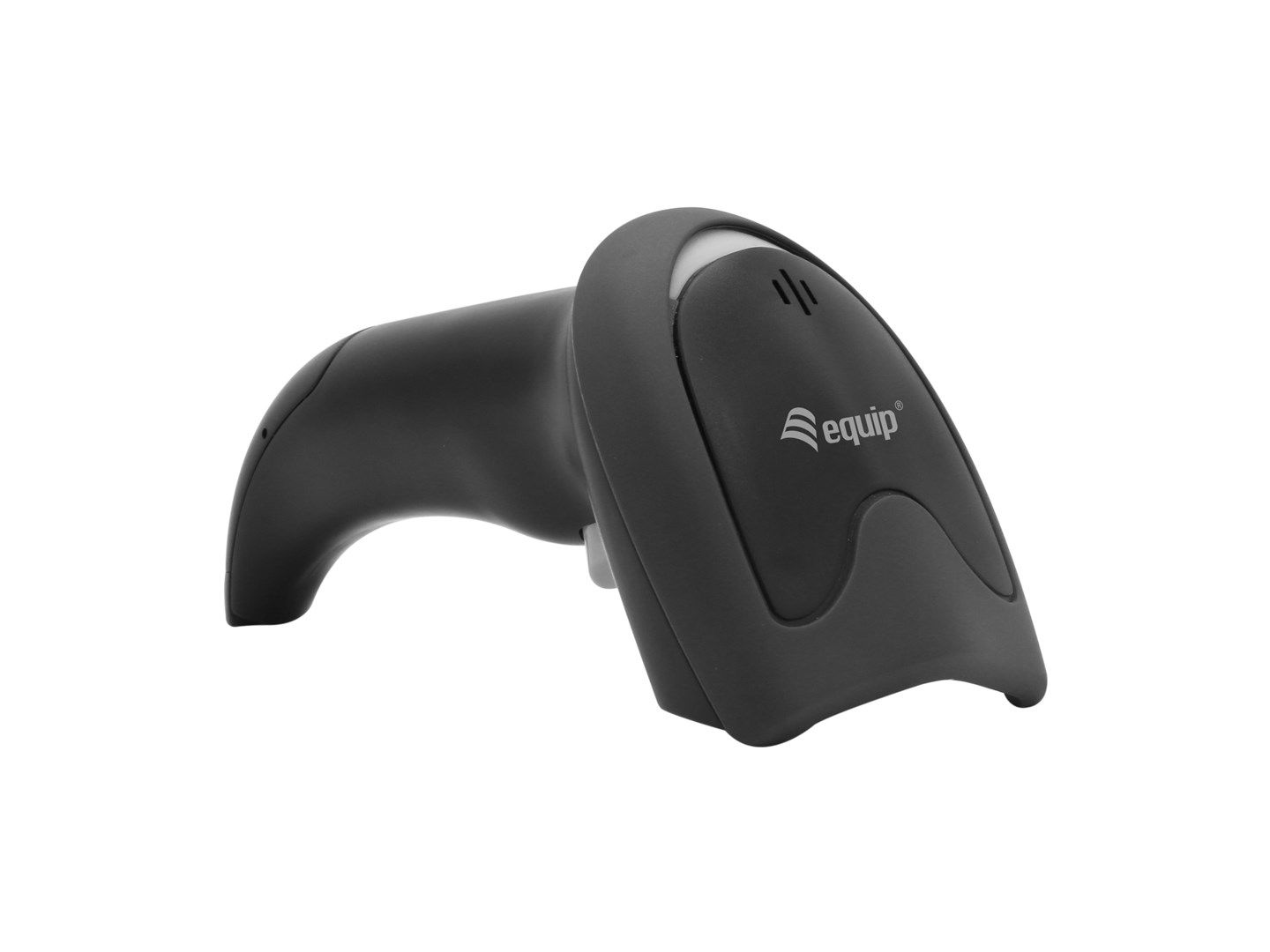

Type: Handheld bar code reader
