Technical details
Compliance certificates: RoHS, CE
Sustainability compliance: Yes
Power
Power source type: Battery
Battery type: Built-in battery
Battery voltage: 3.7 V
Battery capacity: 1500 mAh
Battery life: 20 h
Battery technology: Lithium-Ion (Li-Ion)
Number of batteries supported: 1
Operational conditions
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 85 °C
Weight & dimensions
Weight: 445 g
Depth: 175 mm
Height: 180 mm
Width: 111 mm
Performance
Protection features: Water resistant, Drop proof
Country of origin: China
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP54
Product colour: Black
Packaging data
Charging base: Yes
Package weight: 685 g
Package height: 80 mm
Package depth: 262 mm
Package width: 231 mm
Ports & interfaces
Connectivity technology: Wireless
Wireless range: 200 m
Standard interfaces: Wireless LAN
Cable length: 1.8 m
Operating frequency: 433 MHz
Battery
Battery capacity: 5.55 Wh
Standby time: 3 month(s)
Other features
Quick start guide: Yes
Windows operating systems supported: Windows 7 Professional x64, Windows 11 Enterprise, Windows 10 Home x64, Windows 10 Education, Windows XP Professional, Windows XP, Windows 10 Pro x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 IoT Enterprise, Windows XP Professional x64, Windows 10, Windows 10 IOT Core, Windows 7 Enterprise, Windows 10 Enterprise x64, Windows 10 x64, Windows 7 Home Basic, Windows 7 Ultimate, Windows XP Home, Windows 10 Home, Windows 7 Starter x64, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 11, Windows 7 Professional, Windows 7, Windows 10 Education x64, Windows XP Home x64
Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes
Logistics data
Master (outer) case height: 420 mm
Harmonized System (HS) code: 8471900090
Products per master (outer) case: 20 pc(s)
Master (outer) case width: 485 mm
Master (outer) case gross weight: 15 kg
Master (outer) case length: 550 mm
Scanning
Scanner type: 1D
Sensor type: LED
Read rate (max): 200 reads/s
Linear (1D) barcodes supported: Codabar, ISSN, GS1 DataBar, UPC-E, ISBN, Code 11, EAN-13, EAN-8, UPC-A, Code 93, Interleaved 2 of 5, Code 128, EAN 128, Code 39
Working distance: 70 cm
Wavelength: 650 nm
Maximum scan width: 30 cm
Scanner resolution: 4 mm

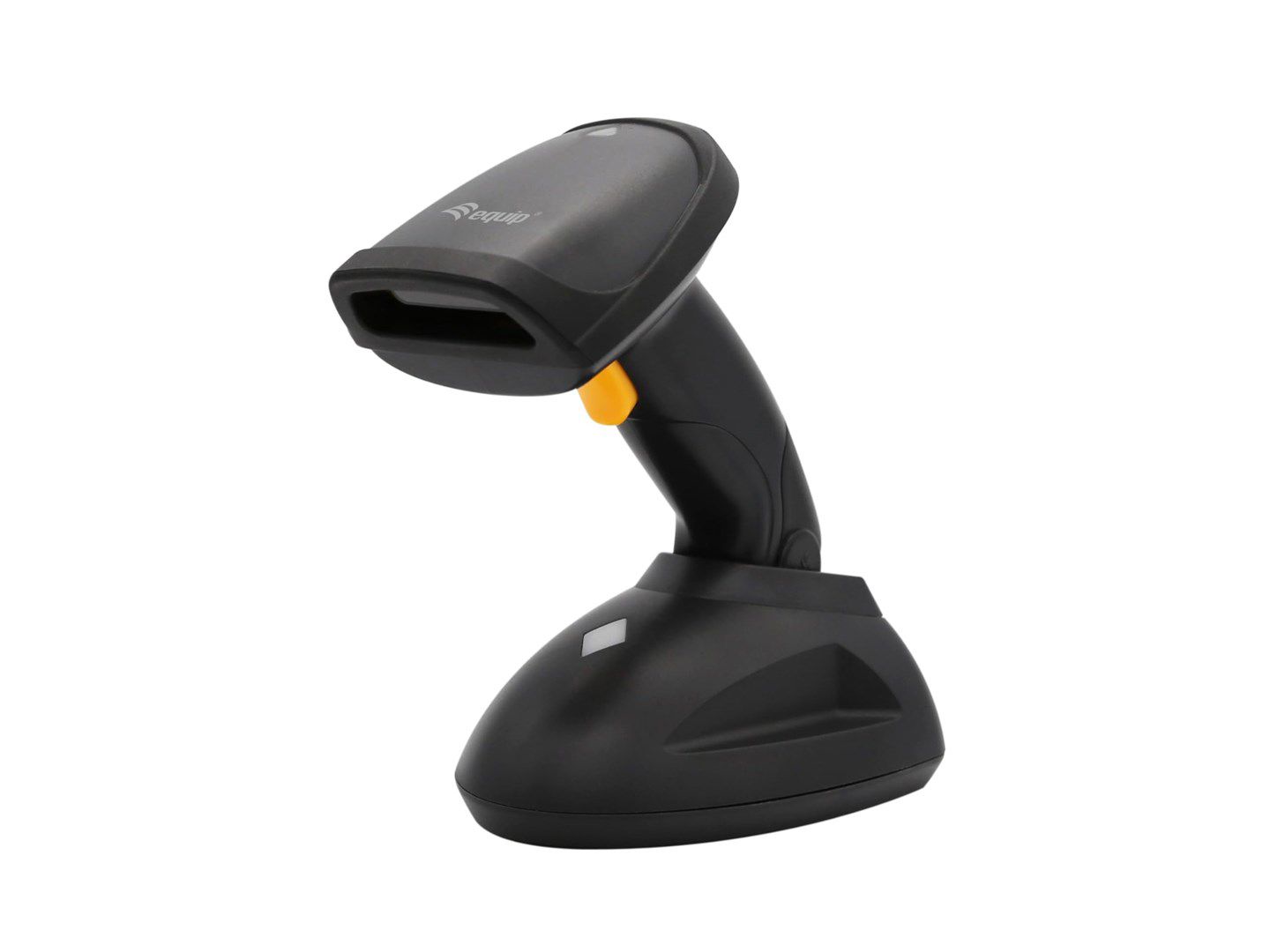

Type: Handheld bar code reader
2D (matrix & stacked) barcodes supported: Not supported
Trigger mode: Auto-induction, Continuous, Manual
Depth of field range: 7.5 cm
