Technical details
Sustainability compliance: Yes
Compliance certificates: RoHS, CE
Power
Battery capacity: 1500 mAh
Battery life: 20 h
Number of batteries supported: 1
Battery voltage: 3.7 V
Power source type: Battery
Battery type: Built-in battery
Input voltage: 5 V
Battery technology: Lithium-Ion (Li-Ion)
Operational conditions
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -20 - 60 °C
Weight & dimensions
Height: 175 mm
Weight: 190 g
Depth: 101 mm
Width: 72 mm
Performance
International Protection (IP) code: IP54
Housing material: Acrylonitrile butadiene styrene (ABS)
Product colour: Black
Country of origin: China
Protection features: Drop proof, Water resistant
Packaging data
Receiver type: Nano receiver
Receiver included: Yes
Stand included: Yes
Cables included: USB
Package weight: 465 g
Package height: 100 mm
Package width: 150 mm
Charging base: Yes
Package depth: 207 mm
Ports & interfaces
Standard interfaces: RF Wireless
Operating frequency: 2400 MHz
Cable length: 1.8 m
Connectivity technology: Wireless
Battery
Battery capacity: 5.55 Wh
Other features
Mobile operating systems supported: iOS, Android
Linux operating systems supported: Yes
Windows operating systems supported: Windows 10 Home x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 11, Windows 10 Pro x64, Windows 10 Education, Windows XP Professional, Windows XP, Windows 7 Ultimate x64, Windows 7 x64, Windows 10, Windows 10 IOT Core, Windows 7 Enterprise, Windows 7 Professional x64, Windows 11 Enterprise, Windows 10 Enterprise x64, Windows 10 x64, Windows 7 Professional, Windows 7, Windows XP Home, Windows 10 Home, Windows 7 Starter x64, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 IoT Enterprise, Windows 7 Home Basic, Windows 7 Ultimate, Windows XP Professional x64, Windows 10 Education x64, Windows XP Home x64
Quick start guide: Yes
Logistics data
Master (outer) case length: 485 mm
Products per master (outer) case: 30 pc(s)
Master (outer) case gross weight: 15.5 kg
Master (outer) case width: 440 mm
Harmonized System (HS) code: 8471900090
Master (outer) case height: 525 mm
Scanning
Maximum scan width: 30 cm
Read rate (max): 200 reads/s
Sensor type: LED
Scanner type: 1D
2D (matrix & stacked) barcodes supported: Not supported
Working distance: 70 cm
Scanner resolution: 4 mm
Wavelength: 650 nm
Linear (1D) barcodes supported: Code 39, Code 93, Code 11, EAN-13, EAN-8, UPC-A, Codabar, ISSN, GS1 DataBar, Code 128, EAN 128, Interleaved 2 of 5, UPC-E, ISBN
Trigger mode: Auto-induction, Continuous, Manual
Depth of field range: 7.5 cm

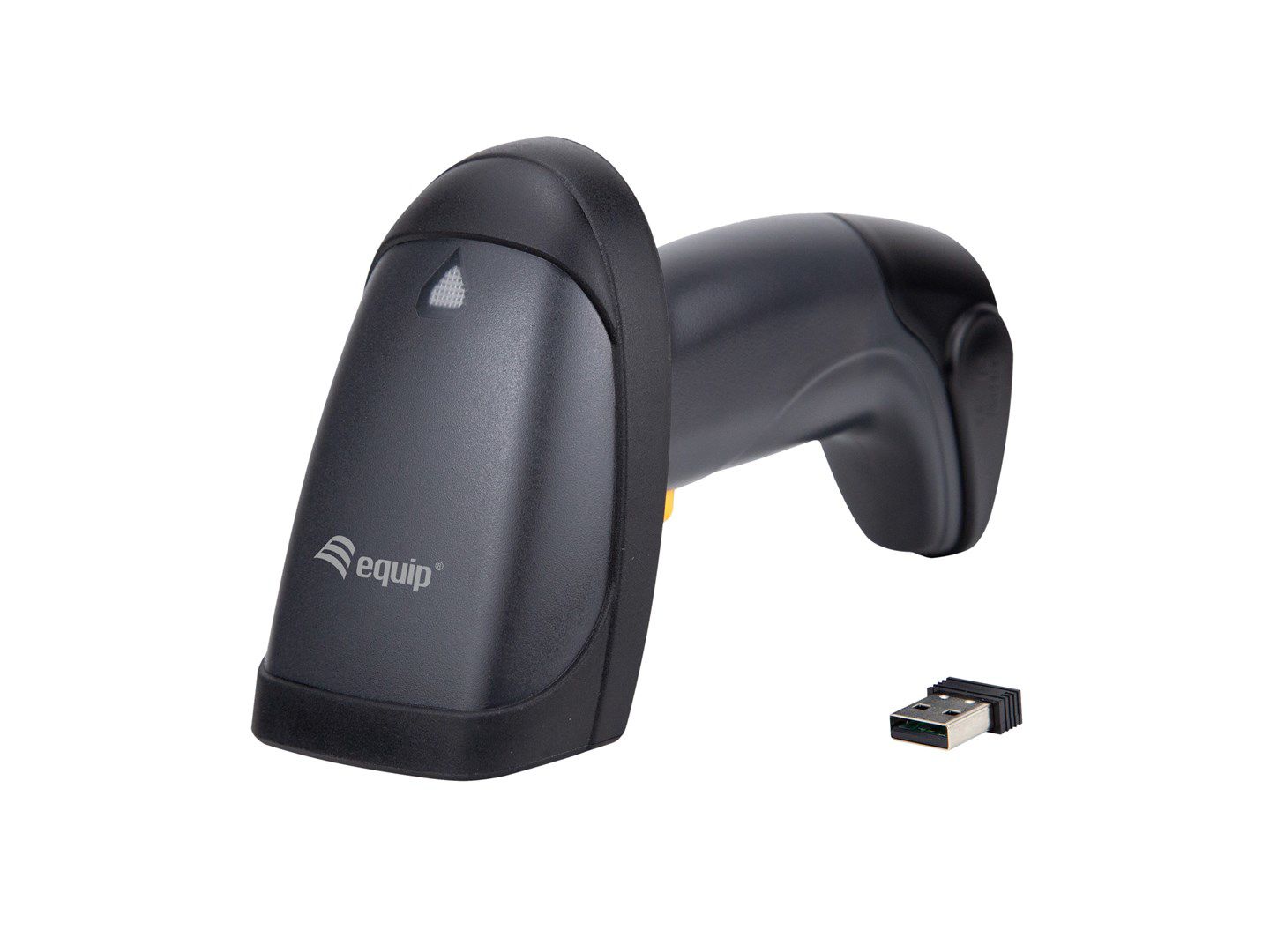

Type: Handheld bar code reader
