Technical details
Compliance certificates: RoHS, CE
Power
Battery type: Built-in battery
Battery technology: Lithium-Ion (Li-Ion)
Battery life: 20 h
Battery capacity: 1500 mAh
Battery voltage: 3.7 V
Power source type: Battery
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 90 °C
Weight & dimensions
Height: 175 mm
Depth: 101 mm
Width: 72 mm
Weight: 187 g
Performance
International Protection (IP) code: IP54
Protection features: Water resistant
Housing material: Acrylonitrile butadiene styrene (ABS)
Country of origin: China
Product colour: Black
Packaging data
Package width: 150 mm
Cables included: USB Type-A to USB Type-C
Package height: 100 mm
Package depth: 207 mm
Stand included: Yes
Receiver included: Yes
Package weight: 465 g
Ports & interfaces
Operating frequency: 2400 MHz
Standard interfaces: Bluetooth, RF Wireless
Connectivity technology: Wireless
Battery
Standby time: 3 month(s)
Battery capacity: 5.55 Wh
Other features
Windows operating systems supported: Windows 10 Home x64, Windows 8, Windows 10 Pro x64, Windows 8 Enterprise, Windows 7 Professional, Windows 7, Windows 10 Enterprise x64, Windows 10 x64, Windows 7 Professional x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 7 Home Basic, Windows 7 Ultimate, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 10, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise, Windows 8 x64, Windows 10 Education, Windows 8 Pro x64, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 IoT Enterprise, Windows 10 Home, Windows 7 Starter x64, Windows 10 Education x64
Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes
Quick start guide: Yes
Logistics data
Master (outer) case length: 485 mm
Master (outer) case width: 440 mm
Master (outer) case height: 525 mm
Harmonized System (HS) code: 8471900000
Products per master (outer) case: 30 pc(s)
Master (outer) case gross weight: 15.5 kg
Scanning

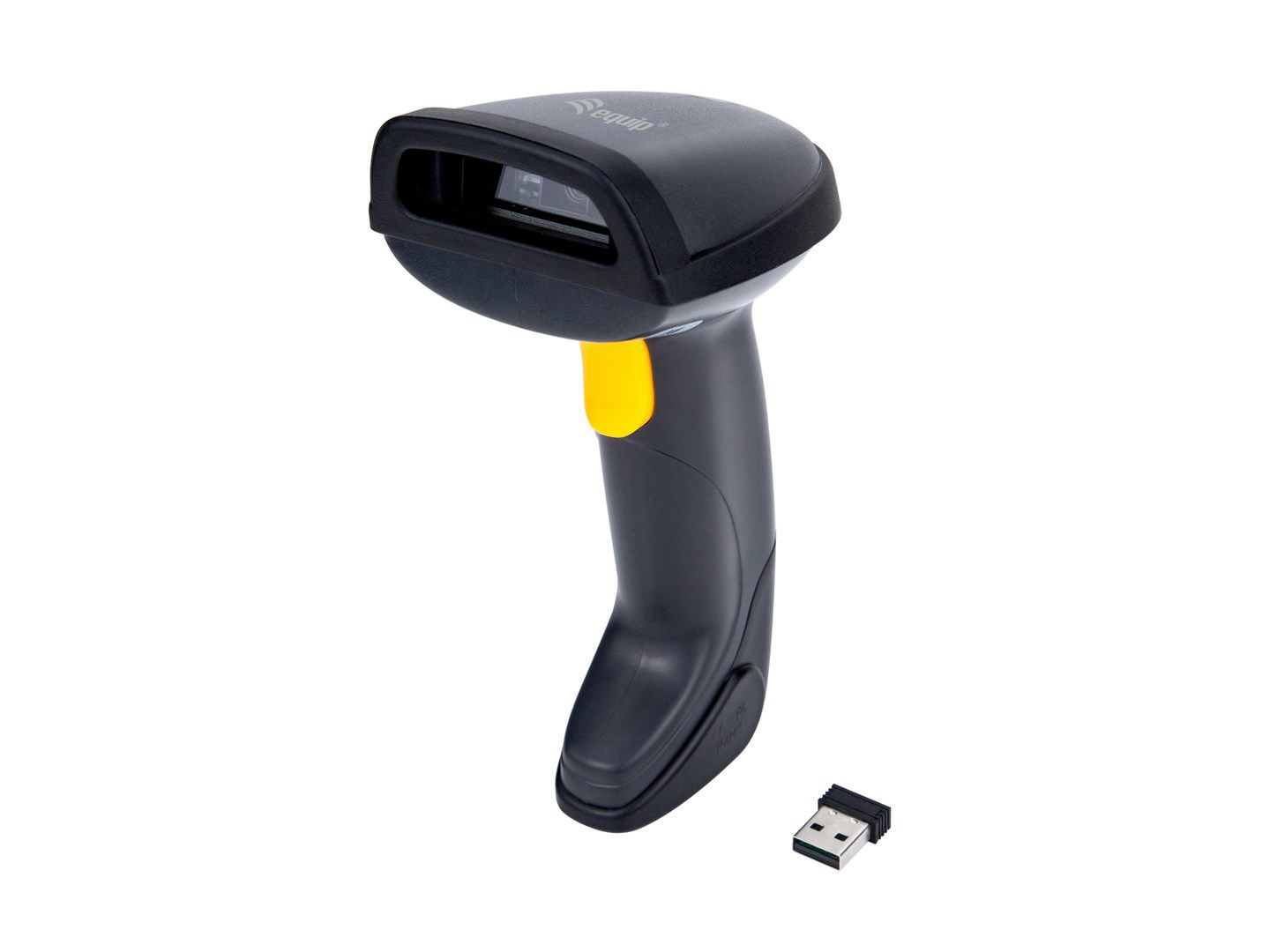

Type: Handheld bar code reader
Trigger mode: Continuous, Manual, Auto-induction
Depth of field range: 60 cm
Sensor type: CMOS
Scanner type: 1D/2D
Linear (1D) barcodes supported: Code 39, GS1-128 (UCC/EAN-128), Plessey, UPC-E, ISBN, Code 128, Matrix 2 of 5, MSI-Plessey, Code 11, EAN-13, EAN-8, UPC-A, Codabar, ISSN, Interleaved 2 of 5, Code 93, GS1 DataBar, Standard 2 of 5
Working distance: 150 cm
Scanner resolution: 4 mm
Pitch reading angle: -30 - 30°
2D (matrix & stacked) barcodes supported: PDF417, QR Code, Data Matrix
Read rate (max): 220 reads/s
Yaw reading angle: -35 - 35°
Tilt reading angle: 0 - 360°
