Ermenrich Ping SM110 Cable Tester

Ermenrich Ping SM110 cable tester

The Ermenrich Ping SM110 is a multifunctional testing device for cable tracking, length measurement and testing of different cable types. It can also be used to check the condition of telephone lines and determine polarity. Optionally, a PoE test can be performed and the device has a flash port function to identify the port on the switch or router. The VFL function helps you detect if a cable is damaged or locate a cable in a cable bundle by flashing a red light on the connector.

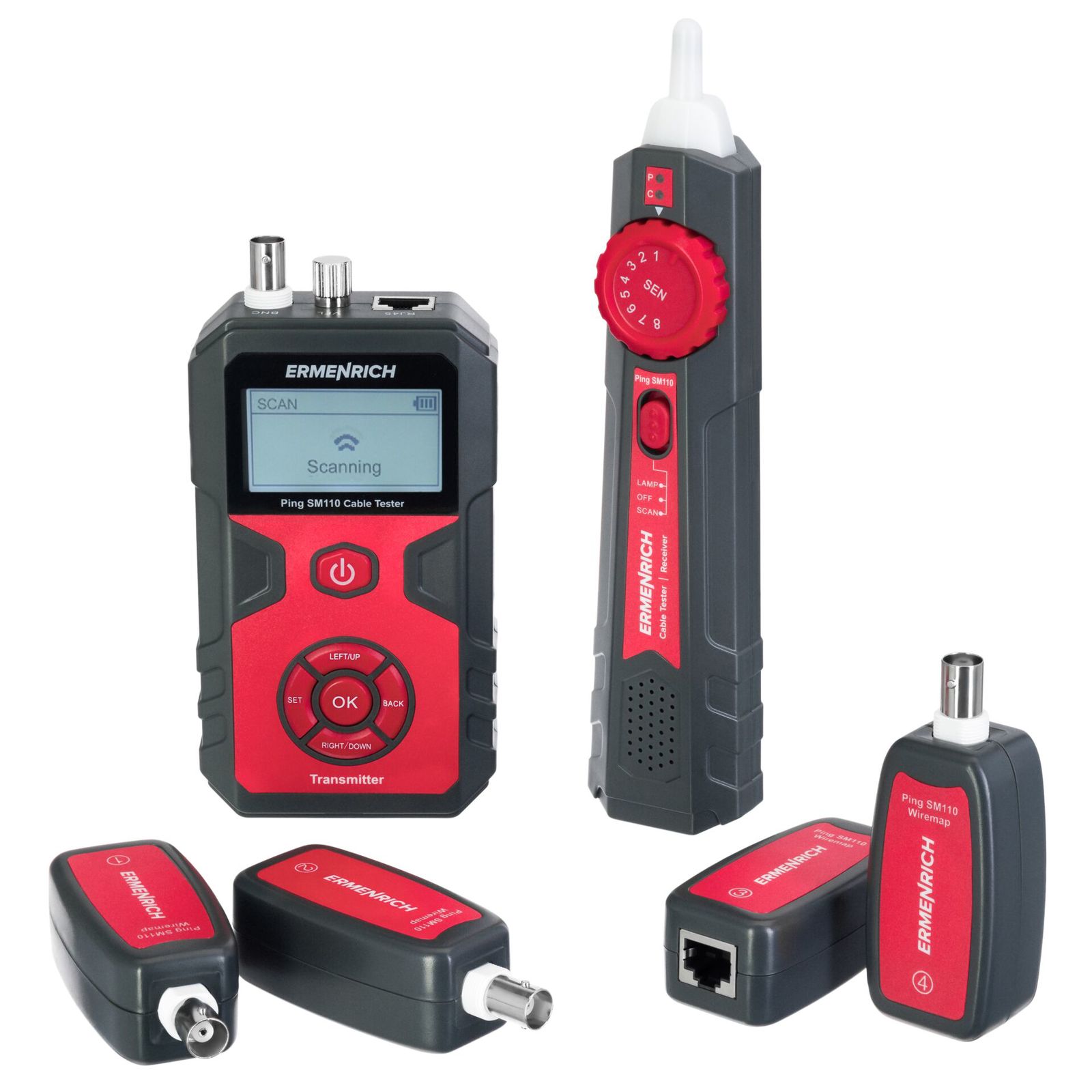

The Ermenrich Ping SM110 cable tester consists of three main units: a transmitter with display and control buttons, a receiver with speaker and adjustable sensitivity and 4 remote units. Adapters and patch cables are also included. All accessories are delivered in a convenient carry bag that can safely store all devices.

Transmitter and receiver are equipped with batteries, adapters and charging cables.

Features:

• Cable assignment and tracking of coaxial and network cables
• Checking the condition and polarity of telephone lines
• Measurement of cable lengths up to 2,000 meters
• PoE test, port flash and VFL functions
• Powered by rechargeable battery (transmitter and receiver)

Technical data:

• Transmitter connections: microUSB, RJ45 (main), RJ45 (scan), BNC, PoE, Flash, VFL
• Supported cable types: telephone cable, coaxial cable, STP/UTP (CAT5, CAT6), network cable
• Maximum length of cable tested: 2000 m
• Cable tracking
• Detection of voltage polarity
• Measuring range: 10 - 2000 m
• Visual Troubleshooting (VFL)
• Signal frequency: 130 kHz
• Data transfer: + (5 memory locations)
• Display: LCD
• Display resolution: 128 х 64 pixels
• Display backlight
• Power source: 1400 mAh, 3.7 V lithium polymer battery
• Display at low battery level
• Automatic shutdown: 15  / 60 min / 30 min
• Temperature range:  10...+ 60 degrees
