Ermenrich Seek TV50 Thermal Camera

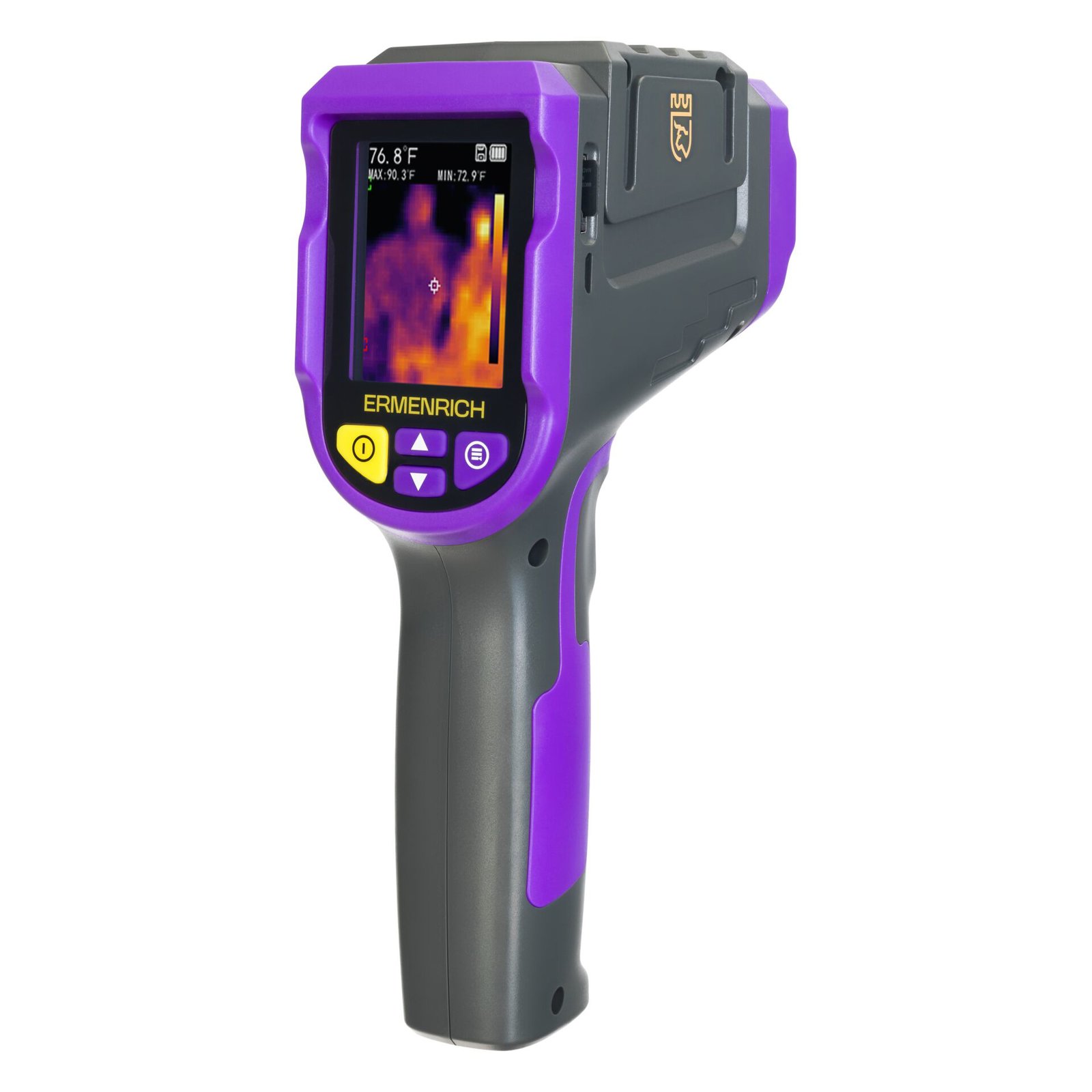

Ermenrich Seek TV50 thermal imaging device, black / purple

The Ermenrich Seek TV50 is suitable for a wide range of applications. When inspecting electrical equipment with a thermal imaging device, hidden faults such as overheated contacts can be detected. When inspecting industrial and residential buildings, the Ermenrich Seek TV50 helps to find thermal bridges in facades and foundations. It can be used in construction work to control the installation of underfloor heating, radiators and water heaters. The thermal imaging device can also be useful for maintenance and repair of cars as well as pest control (to find pest infestation in a building). The temperature measurement range of the Ermenrich Seek TV50 ranges from -20 to +400°C.

The thermal imager is equipped with a 32x32 pix thermal image sensor (1024pix in total) and a 2 Mpix camera for visible light. Four modes are available: infrared mode, infrared edge detection mode, dual-light view mode and visible light mode. You can also choose from 7 colour palettes, the image is displayed on the integrated colour display. The operation and settings are controlled by four buttons below the display and one button on the handle. There is a photo capture function - the photos are stored on a memory card.

The device is held in the hand; there is no tripod mount, and the power source is a rechargeable battery.

Features:

• 32 x 32 pix thermal image sensor and 2 Mp camera, adjustable emissivity
• 7 color palettes, 4 modes including the fusion of visible and IR image
• High measurement accuracy in the range of 20 to +400°C
• Image capture function, the data is stored on a memory card
• Shock-resistant housing, power supply via rechargeable battery

Technical data:

• Type of thermal imaging device: manual
• Resolution of the microbolometer matrix: 32 x 32 pixels
• Spectral range: 8 - 14 μm
• Speed:  9
• Temperature range: -20 - 400°C
• Temperature error precision (%): 0 to +400°C:  1.8°C;  20 to 0.9°C:  3°C, resolution: 0.1°C
• Temperature sensitivity (NETD): 150 mK
• Color palettes: Hot Black, Hot White, Hot Red, Red Iron, Cold Colored, Rainbow, Lava
• Field of view (horizontal) x (vertical): 33° (horizontal), 18 mrad (direct)
• Fusion of optical and thermal images
• Display: LCD, 2.4 inch TFT
• Display resolution: 320 x 240 pixels
• Operating mode: infrared mode, infrared edge detection mode, dual-light viewing mode, visible light mode
• Power supply: 2600 mAh, 3.7V, charge via micro-USB cable (included)
• Maximum load (impact), g: fall from a height of up to 1 meter
• Temperature range: -10...+45° C
• Integrated recorder
• Memory: 16 GB memory card (included)
• Image format: bmp
• Interface connections: micro USB
• Bag in set
• Additional features: automatic power off function, low battery indicator, camera resolution 2 MP, adjustable emissivity from 0.1 to 0.99, response time: 150 ms
• Colour: black / purple
