Technical details
Speakerphone: Yes
Maximum number of cameras supported: 1
Colour: Yes
Compliance certificates: REACH, RoHS, CE, UKCA, WEEE
Wall mountable: Yes
Motion detection function: Yes
Number of displays supported: 1
Frequency band: 2.4 - 2.4835 GHz
Built-in microphone: Yes
Connectivity technology: Wireless
Design
Control type: Wireless, Buttons
Product colour: Silver
Power
Power consumption (typical): 2.2 W
Battery type: Built-in battery
Indoor unit power type: Battery
Battery life: 90 day(s)
Battery technology: Lithium
Battery capacity: 4600 mAh
Operational conditions
Operating temperature (T-T): -10 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
Width: 71 mm
Height: 71 mm
Door station dimensions (WxDxH): 115.5 x 85.5 x 24.5 mm
Depth: 48.3 mm
Weight: 320 g
Network
Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Wi-Fi: Yes
Security algorithms: WPA, 64-bit WEP, WPA2, 128-bit WEP, WPA2-PSK, WPS
Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
Packaging data
Indoor unit included: Yes
Outdoor unit included: Yes
Mounting kit: Yes

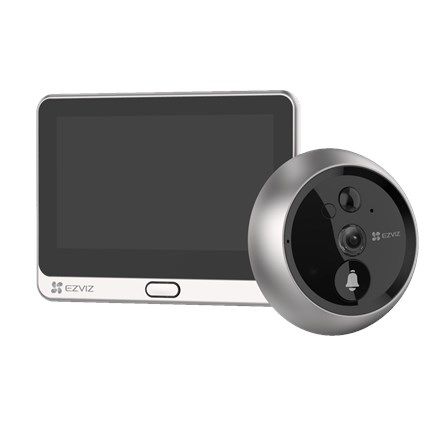

Packaging content: DP2 2K Peephole Doorbell
Panel
Mounting Base
Base Cover
Buckle
Screws × 6
Power Cable
Regulatory Information
Quick Start Guide
Packaging content
Cables included: Power
Screws included: Yes
Quick start guide: Yes
Display
Backlight display: Yes
Touchscreen: Yes
Wide Dynamic Range (WDR): Yes
Display diagonal: 10.9 cm (4.3")
Audio
Number of speakers: 1
Built-in speaker(s): Yes
Storage
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB
Memory card slot: Yes
Camera
Maximum aperture number: 2
Viewing angle, diagonal: 166°
Viewing angle, horizontal: 136°
Maximum frame rate: 15 fps
Megapixel (approx.): 3 MP
Motion sensor: Yes
Motion sensor technology: Passive infrared (PIR) sensor
Motion sensor distance: 6 m
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Viewing angle, vertical: 80°
Motion sensor detection angle: 110°
Sensor type: CMOS
Logistics data
Quantity per pack: 1 pc(s)
Night vision
LED type: IR
Night vision distance: 5 m
Night vision: Yes
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
