Design
Product colour: White
Mounting type: Ceiling
Form factor: Dome
Weatherproof: Yes
Power
Power source type: DC
DC output voltage: 12
Power consumption (typical): 12 W
DC output current: 1 A
Security
Anti-flicker: Yes
Password protection: Yes
Digital watermark: Yes
Security algorithms: WPA-PSK, WPA2-PSK
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 50 °C
Management features
Cloud-managed: Yes
Cloud services supported: EZVIZ Cloud
Weight & dimensions
Weight: 539.7 g
Height: 140 mm
Depth: 136 mm
Width: 100 mm
Network
Supported network protocols: EZVIZ Cloud Proprietary Protocol
Ethernet LAN: Yes
Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n)
Bluetooth: No
Channel bandwidth: 20 MHz
Wi-Fi: Yes
Certification: CE / UL / RoHS / WEEE / REACH
Performance
Auto-tracking: Yes

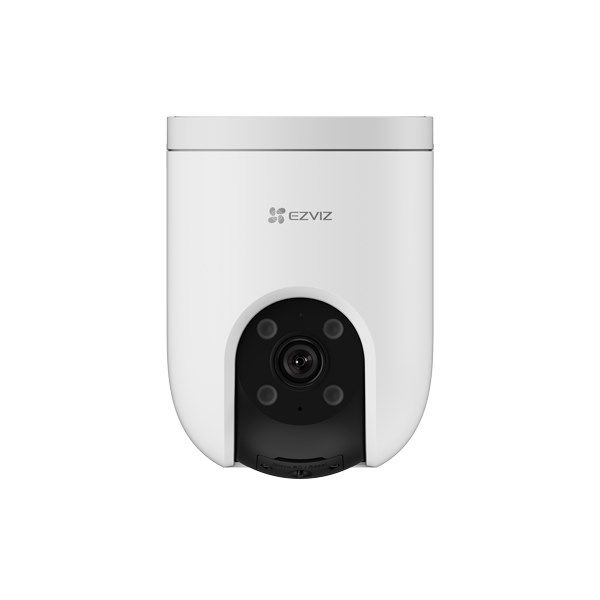

Type: IP security camera
Connectivity technology: Wireless
Placement supported: Outdoor
Luminous flux: 0.5 lm
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Packaging data
Package width: 140 mm
Package weight: 823.6 g
Package depth: 140 mm
Package height: 192 mm
Packaging content
Number of cameras: 1
Storage
Maximum memory card size: 512 GB
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt angle range: 0 - 80°
Lens viewing angle, diagonal: 108°
Pan range: 0 - 350°
Lens viewing angle, vertical: 48°
Lens viewing angle, horizontal: 91°
Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Video compression formats: H.265, H.264
Image quality adjustment: DNR
Digital Wide Dynamic Range (DWDR): Yes
Bit rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
Maximum resolution: 2880 x 1620 pixels
Night vision
Night vision: Yes
Night vision distance: 30 m
Lens system
Number of lenses: 2
Lens diameter: 6 mm
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste.
