Technical details
Sustainability certificates: Federal Communications Commission (FCC), RoHS, WEEE, UL ECOLOGO, CE, UKCA, REACH
Sustainability compliance: Yes
Lens mount interface: M12
Design
Product colour: White
Form factor: Turret
Weatherproof: Yes
Mounting type: Ceiling/wall
Power
Power consumption (typical): 12 W
Power source type: AC, DC
DC output current: 1 A
DC output voltage: 12
Security
Anti-flicker: Yes
Heartbeat: Yes
Password protection: Yes
Digital watermark: Yes
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 50 °C
Weight & dimensions
Depth: 129.2 mm
Package weight: 730 g
Package width: 140 mm
Width: 100 mm
Package height: 192 mm
Height: 149.8 mm
Package depth: 140 mm
Weight: 420 g
Network
Bluetooth: No
Frequency band: 2.4835 GHz
Wi-Fi: No
Ethernet LAN: Yes
Channel bandwidth: 20 MHz
Wi-Fi data rate (max): 11 Mbit/s
Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
Ethernet interface type: Gigabit Ethernet
Supported network protocols: Proprietary EZVIZ Cloud protocol
Works with Amazon Alexa: Yes
Works with the Google Assistant: Yes
Performance
Connectivity technology: Wired & Wireless

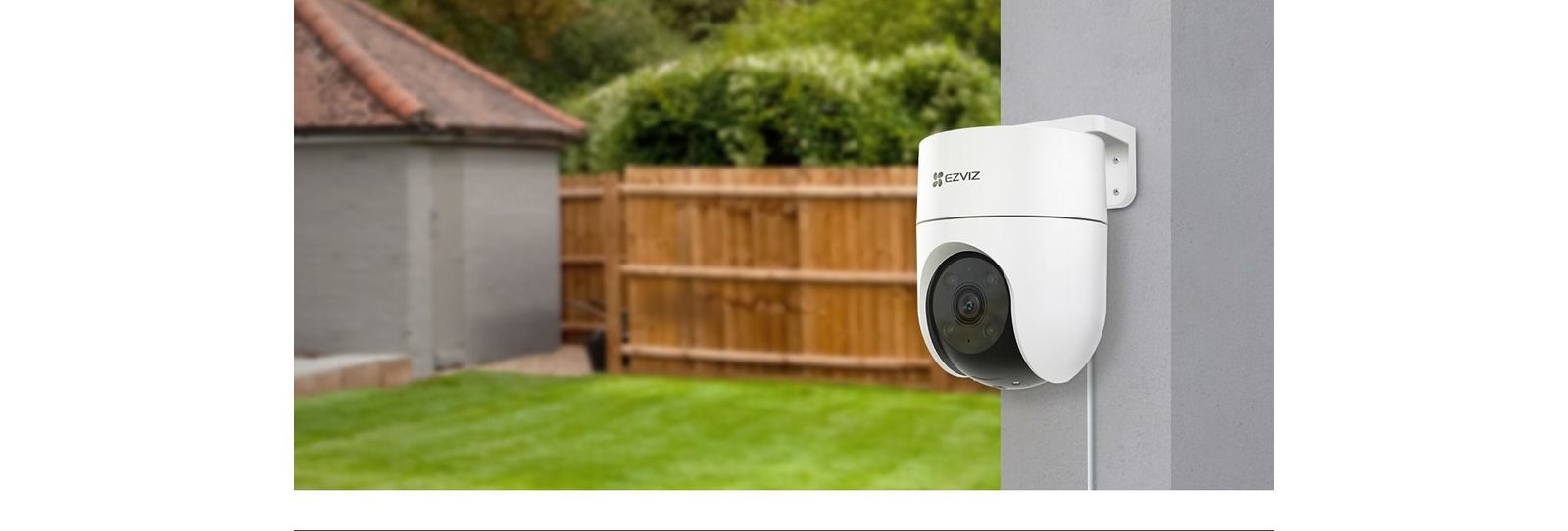

Type: IP security camera
Wide Dynamic Range (WDR): Yes
Placement supported: Indoor & outdoor
Day/night mode: Yes
Luminous flux: 0.5 lm
Packaging content: - H8c-Camera
- Bohrschablone
- set of screws
- Waterproof set
- Power adapter
- Legal Notice
- Quick start Guide
Packaging content
Manual: Yes
Number of cameras: 1
Screws included: Yes
Audio
Bit rate range: 0 - 2000 Kbit/s
Built-in loudspeaker: Yes
Built-in microphone: Yes
Two-way talk: Yes
Storage
Cloud services supported: EZVIZ Cloud
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt angle range: 0 - 80°
Lens viewing angle, vertical: 46°
Lens viewing angle, horizontal: 89°
Lens viewing angle, diagonal: 104°
Pan range: 0 - 350°
Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Maximum resolution: 1920 x 1080 pixels
Full HD: Yes
Bit rate: self-adjusting
Image quality adjustment: DNR
Video formats supported: H.264, H.265
Video recording: Yes
Frame rate: 30 fps
Video streaming: Yes
Night vision
Night vision distance: 30 m
Night vision: Yes
Lens system
Number of lenses: 1
Lens diameter: 4 mm
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
