Design
International Protection (IP) code: IP65
Product colour: White
Form factor: Turret
Mounting type: Wall
Power
Power consumption (max): 10 W
Power source type: Battery, Solar
DC output current: 2 A
DC output voltage: 5
Power consumption: 5200 mA
Security
Anti-flicker: Yes
Digital watermark: Yes
Heartbeat: Yes
Security algorithms: WPA-PSK, 64-bit WEP, WPA2, WPA, 128-bit WEP, WPA2-PSK
Password protection: Yes
Operational conditions
Operating temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
Weight: 660 g
Depth: 100 mm
Width: 137.2 mm
Height: 168 mm
Network
4G standard: LTE-TDD & LTE-FDD
Mobile network generation: 4G
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 6 (802.11ax)
Frequency band: 2.4 - 2.4835 GHz
Wi-Fi data rate (max): 114 Mbit/s
Ethernet LAN: No
Wi-Fi: Yes
Bluetooth: No
Channel bandwidth: 20 MHz
Mobile network connection: Yes
Certification: CE / REACH / WEEE / RoHS
Performance
Connectivity technology: Wireless

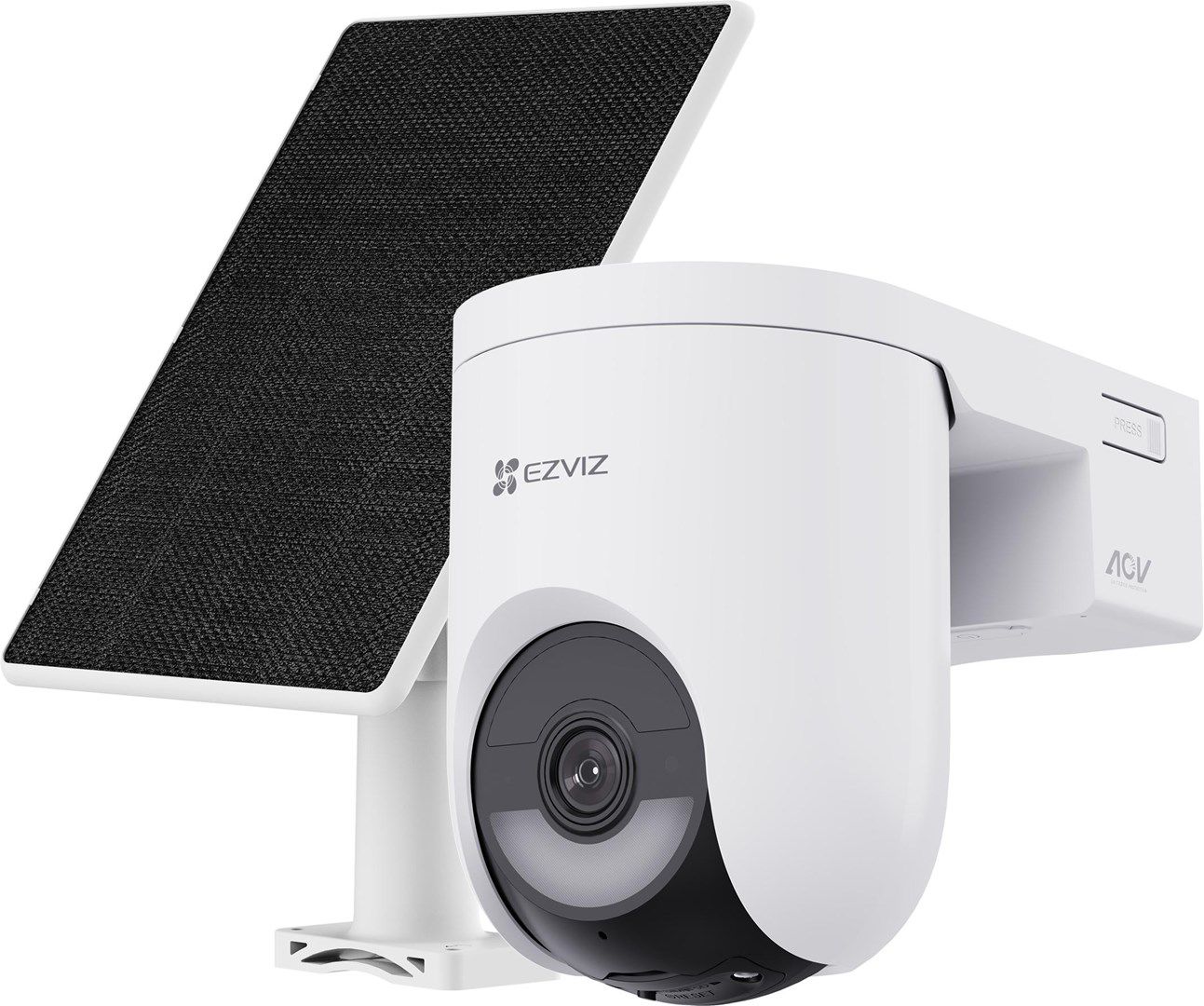

Type: IP security camera
Day/night mode: Yes
Placement supported: Outdoor
Infrared (IR) cut-off filter: Yes
Packaging data
Package type: Box
Package height: 194 mm
Package width: 205 mm
Package depth: 145 mm
Package weight: 1.12 kg
Packaging content
Number of cameras: 1
Screws included: Yes
Cables included: AC
Storage
Maximum memory card size: 512 GB
Card reader integrated: Yes
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Camera
Lens viewing angle, vertical: 40°
Lens viewing angle, horizontal: 75°
Lens viewing angle, diagonal: 90°
Tilt angle range: 0 - 80°
Minimum illumination: 0 lx
Pan range: 0 - 340°
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Video
Frame rate: 15 fps
Maximum resolution: 2560 x 1440 pixels
Bit rate: 4 Mbps
Total megapixels: 4 MP
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Video compression formats: H.265, H.264
Night vision
LED type: IR
Night vision distance: 15 m
Night vision: Yes
Lens system
Maximum aperture number: 1.6
Fixed focal length: 4 mm
Sustainability
Compliance certificates: WEEE, RoHS, CE, REACH
