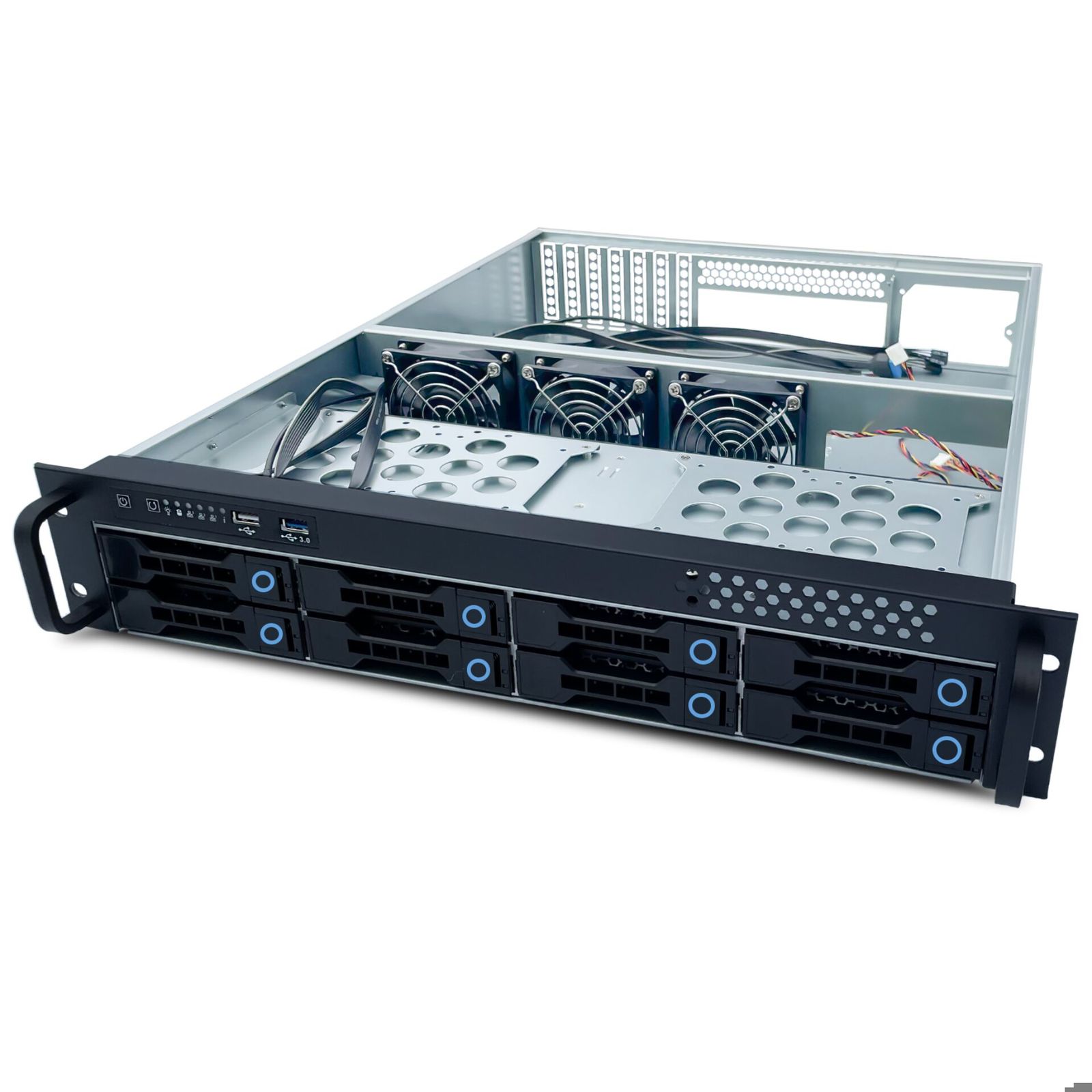

FANTEC SRC-2080X07-12G /6G-BCE 2HE 8xSAS&SATA (ohne Netzteil)

FANTEC SRC-2080X07 (without power supply)

19" Storage enclosure for installation in 19" industrial cabinets 12G/6G version: upgrade the 6G backplane to 12G variant with SFF8643. 6G continues to be supported Robust construction and high-quality workmanship. Pre-installed backplane to accommodate SAS or SATA hard drives.

Features:

• Housing type: 19 inch storage enclosure
• Mainboard types: M-ATX, ATX, SSI CEB
• Drive slots: 8x 3.5" slots
• Supports SAS 12Gbit/s ports (backward compatible)
• Supports SATA 6Gbit/s ports (backward compatible)
• Supports SAS and SATA hard drives with 29/22Pin (female)
• 2x SFF-8643: 4x each SAS/SATA to 1x SFF-8643
• 2x 4PIN Molex power connector for backplane supply
• Supports hard drives with DC +12V, +5V and +3.3V
• 8x yellow power LED - lights up when hard drive connected
• 8x blue status LED - blinks when hard drive access
• Ready for NT-MR redundant power supply (eg 2164 or 2169) with mounting bracket E2452 (power supply and mounting bracket not included)
• For the connection of an SFF backplane to a SATA controller, suitable cables are required (optionally available)
• Installation depth: 550 mm
• Fan type: 3x 80 mm in the central wall
• Number of PCI slots: 7x low profile PCI slots
• Front USB
• Material: steel / aluminium
• Dimensions (W x D x H): 430 x 550 x 88 mm
• Weight: 7.7 kg
