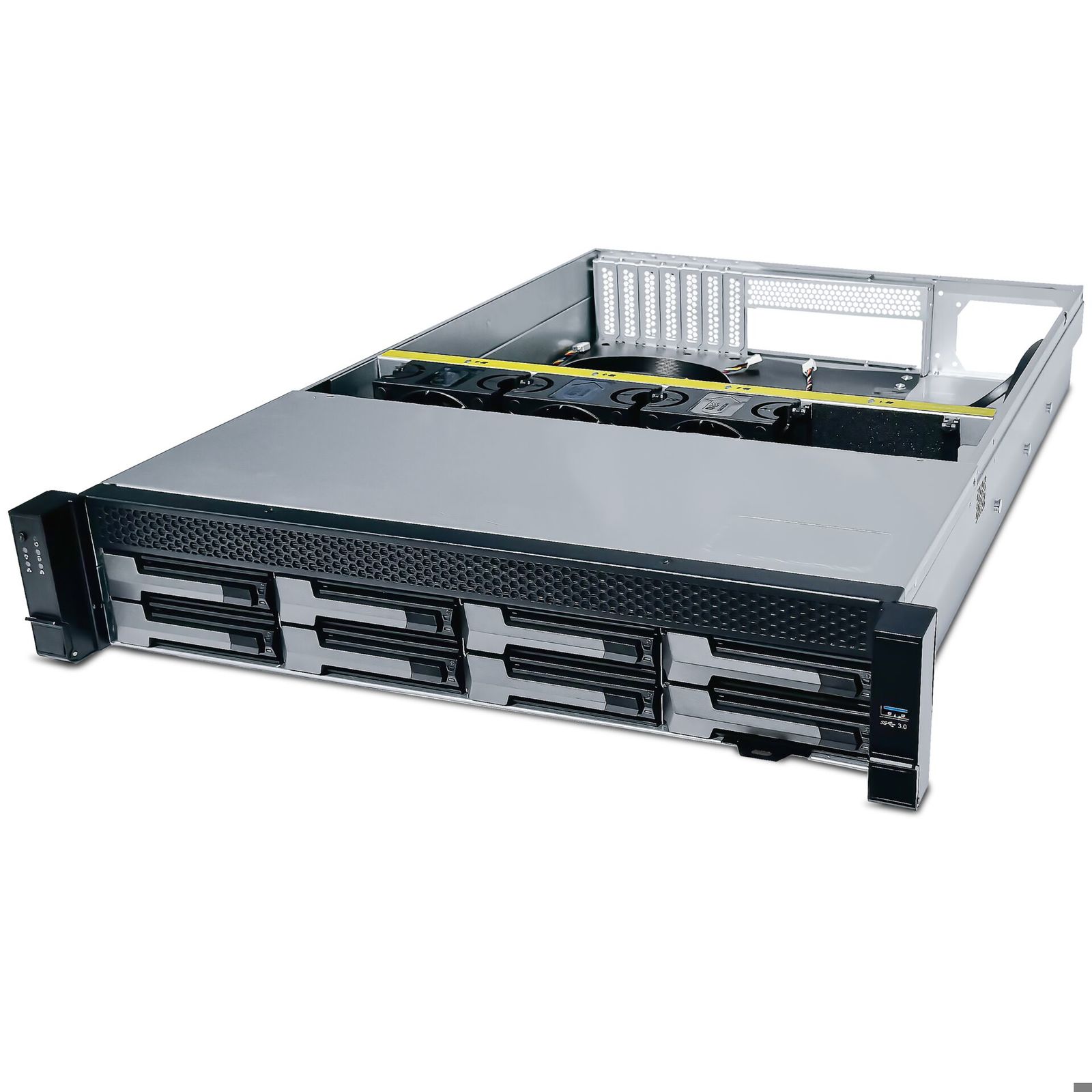

FANTEC SRC-TL-2680X07 (without power supply)

FANTEC SRC-TL-2680X07 (without power supply)

8x 3.5" or 2.5", SAS or SATA, hard drives or SSDs with maximum 12G or 6G transfer rates.Mainboard maximum 12" x 13". Pre-installed 12G SFF-8643 backplane to accommodate SAS or SATA hard drives. Hard disks are clipped on the carrier slot, not screwed. The housing is prepared to be mounted with the telescopic rail 2588 (not included).

Features:

• Housing type: 19 inch storage enclosure
• Installation depth: 680 mm
• 2U IPC Storage
• Mainboard type: 12" x 13"
• 8x 3.5" drive slots on hard disk carriers
• 3,5" hard disks are clipped without tools on the carrier, almost without tools, toolless, therefore "TL"
• 2.5" SSD are screwed to the carrier
• 12G backplane, 2x SFF-8643 Connector
• 6G hard drives or SSDs can be used
• 2x internal mounting options for 2.5" SSD under the front cover
• 3x fan (80 mm) in the center wall, supply via the backplane, unregulated
• 1x Front USB3, matching mainboard provided
• Front LED for status indicators
• Front touch switch for the operation of the motherboard
• Number of PCI slots: 7x low profile PCI slots
• Material: steel / aluminium
• Dimensions (W x H x D): 650 x 450 x 89 mm
• Weight: 12.5 kg
