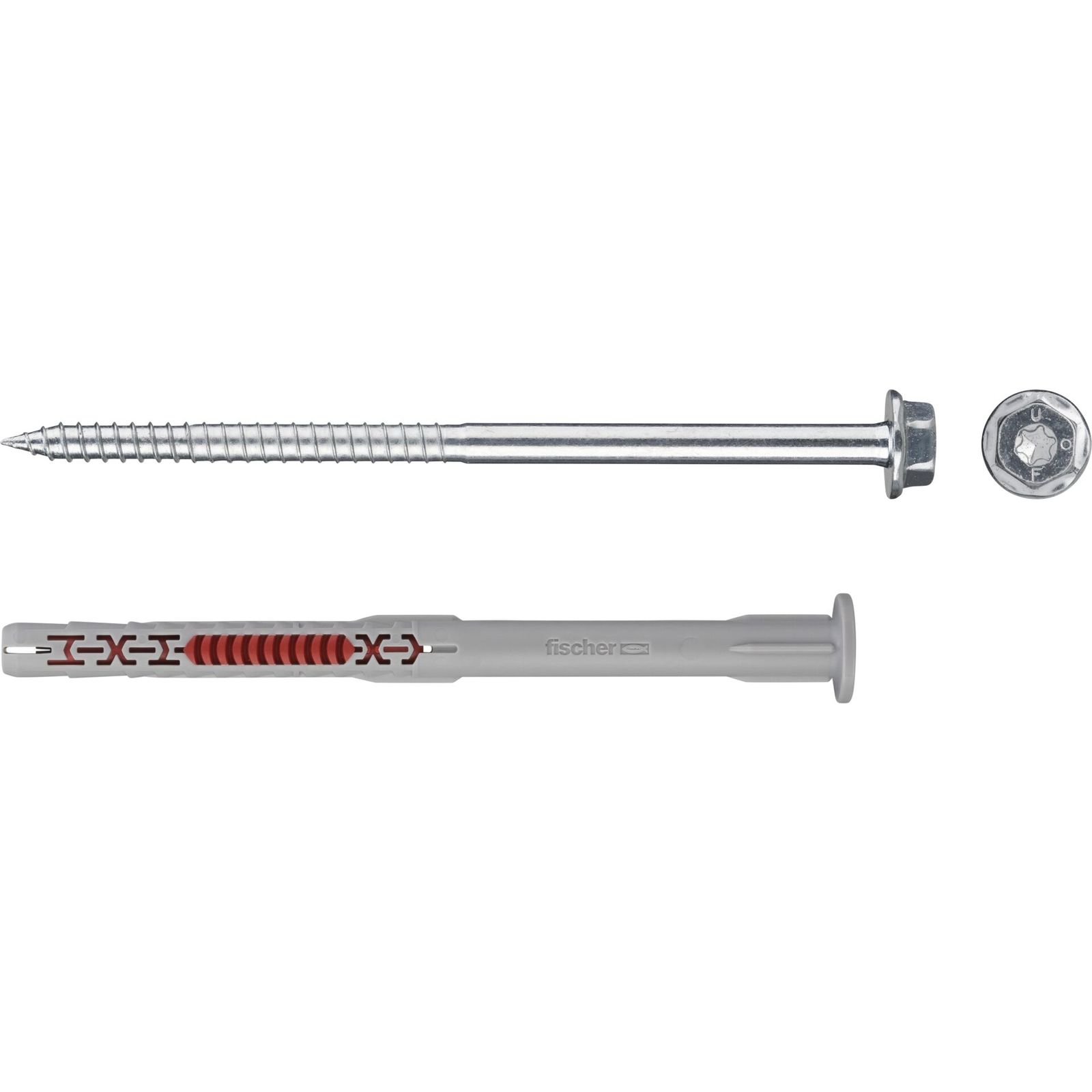

Fischer DuoXpand 10x140 FUS 50 pc.

fischer long shank plug DuoXpand 10 x 140 FUS hexagon screw with washer

Thanks to the special lamella geometry, the anchors expand gently in the respective building material. This prevents fractures in porous building materials and allows anchoring close to the edge.

Features:

• Drive: TX40/SW13
• Quantity: 50 pieces
• Plug length (l): 140 mm
• Drill core diameter (d0): 10 mm
• Effective length for anchorage depth 50 mm (tfix): 90 mm
• Effective length for anchorage depth 70 mm (tfix): 70 mm

Applications:

• Facade, ceiling and roof substructures made of wood or metal
• Windows, gates and doors
• Wardrobes, kitchen wall units and TV consoles
• Squared timber and beams
• Wall coverings
• Metal angles and metal brackets
• Cable ducts and cable trays

Construction materials

• Solid bricks
• Solid lime sandstone
• Solid block of lightweight and normal concrete
• Vertically perforated bricks
• Perforated sand-lime brick
• Concrete ≥ C12/15
• Hollow block of light concrete
• Aerated concrete
• Natural stone with dense structure
• Solid Gypsum Plates
