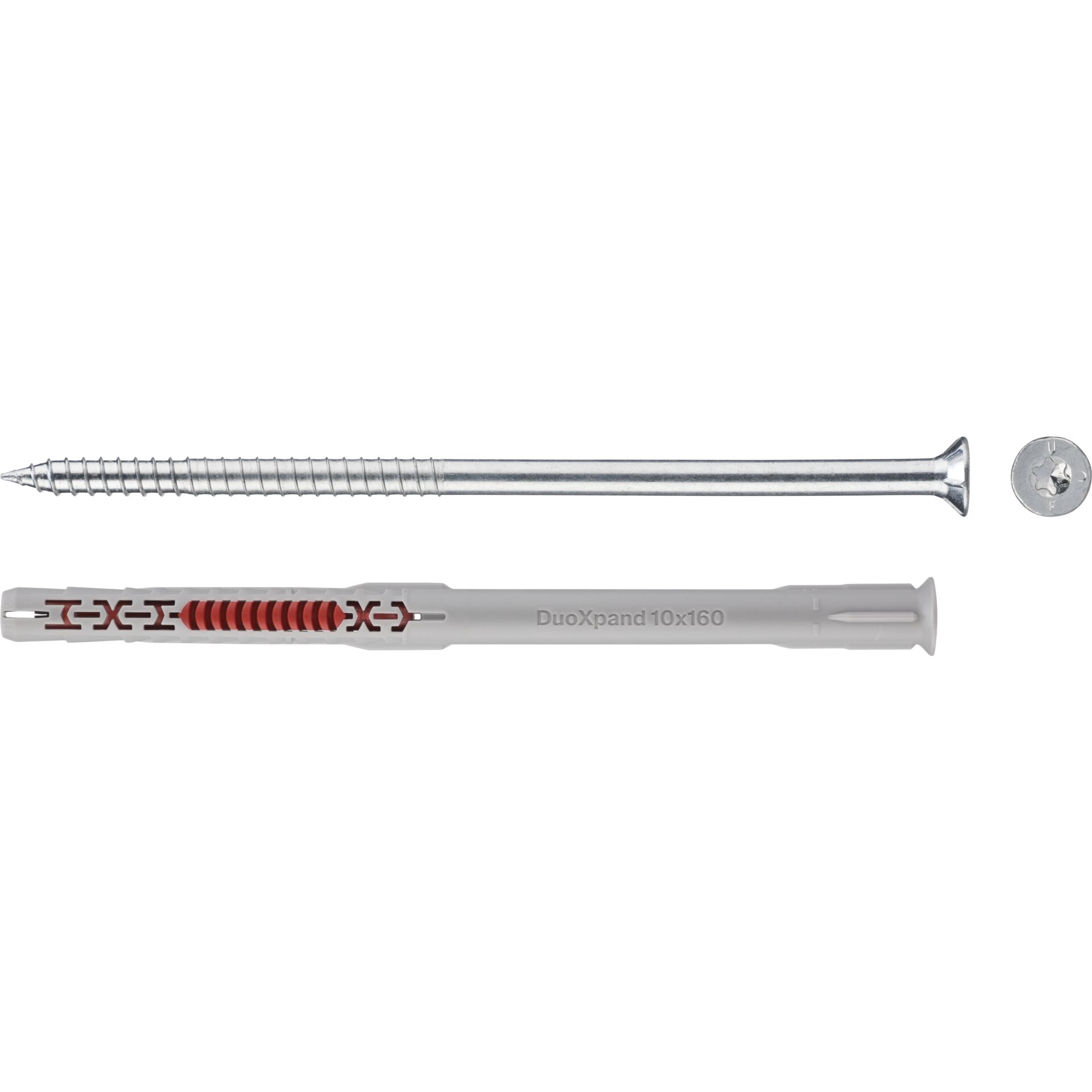

Fischer DuoXpand 10x160 T 50 pc.

fischer long shank plug DuoXpand 10 x 160 T countersunk head screw

The special lamella geometry of the fischer anchor expands in the respective building material in a way that is gentle on the material. This prevents fractures in porous building materials and enables anchoring close to the edge.

Features:

• Drive: TX40
• Quantity: 50 pieces
• Plug length (l): 160 mm
• Material: High-quality nylon
• Colour: red / grey
• Preassembled safety screw
• Drill core diameter (d0): 10 mm
• Effective length for anchorage depth 50 mm (tfix): 110 mm
• Effective length for anchorage depth 70 mm (tfix): 90 mm
• Effective length for anchorage depth 140 mm (tfix): 20 mm

Applications:

• Facade, ceiling and roof substructures made of wood or metal
• Windows, gates and doors
• Wardrobes, kitchen wall units and TV consoles
• Squared timber and beams
• Wall coverings
• Metal angles and metal brackets
• Cable ducts and cable trays

Suitable for the following building materials:

• Solid bricks
• Solid lime sandstone
• Concrete ≥ C12/15
• Solid block of lightweight and normal concrete
• Hollow block of light concrete
• Aerated concrete
• Vertically perforated bricks
• Perforated sand-lime brick
• Natural stone with dense structure
• Solid Gypsum Plates
