Technical details
Sustainability certificates: RoHS
Design
Product colour: Black
Form factor: Cube
Mounting type: Desk
Power
Power source type: DC
Power consumption (typical): 6 W
DC output voltage: 5
DC output current: 2 A
Security
Video motion detection: Yes
IP address filtering: Yes
Operational conditions
Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 20 - 85%
Weight & dimensions
Height: 119 mm
Width: 74 mm
Depth: 74 mm
Network
Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Wi-Fi: Yes
Supported network protocols: WPA, WPA2
Ethernet LAN: Yes
System requirements
Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Certification: CE, FCC
Performance
Connectivity technology: Wired & Wireless

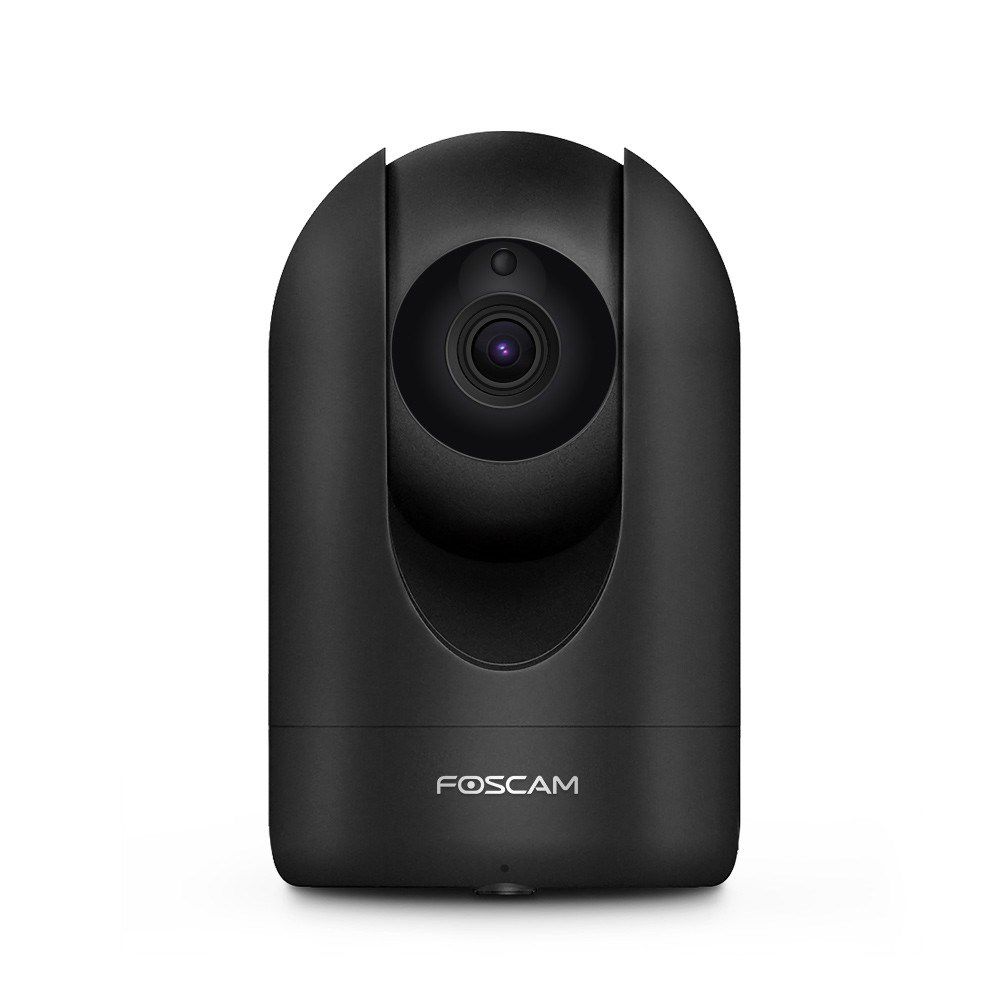

Type: IP security camera
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Wide Dynamic Range (WDR): Yes
Placement supported: Indoor
Packaging content
Number of cameras: 1
Audio
Built-in microphone: Yes
Audio system: 2-way
Built-in speaker(s): Yes
Storage
Card reader integrated: Yes
Maximum memory card size: 128 GB
Compatible memory cards: MicroSD (TransFlash)
Camera
Tilt angle range: 0 - 100°
Lens viewing angle, diagonal: 112°
Camera pan control: Yes
Camera tilt control: Yes
Pan range: 0 - 350°
Logistics data
Harmonized System (HS) code: 85258900
Image sensor
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Number of sensors: 1
Video
Maximum resolution: 2560 x 1440 pixels
Privacy masking: Yes
Total megapixels: 4 MP
Video formats supported: H.264
Frame rate: 25 fps
Video compression formats: H.264
Video streaming: Yes
Night vision
Night vision distance: 10 m
Number of illumination LEDs: 13
Infra-red wavelength: 850 nm
LED type: IR
Night vision: Yes
Lens system
Number of lenses: 1
Fixed focal length: 4 mm
Maximum aperture number: 2.1
Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
