Design
Product colour: White
Form factor: Dome
International Protection (IP) code: IP66
Mounting type: Wall
Protection features: Waterproof
Power
Power consumption (max): 20 W
Power source type: DC
DC output current: 2 A
DC output voltage: 12
Security
Security algorithms: WPA, WPA2
Alert notification type: E-mail
Video motion detection: Yes
IP address filtering: Yes
Operational conditions
Storage temperature (T-T): -20 - 60 °C
Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 85%
Storage relative humidity (H-H): 0 - 90%
Weight & dimensions
Length: 180 mm
Weight: 1 kg
Width: 111 mm
Height: 180 mm
Network
Wi-Fi standards: 802.11g, 802.11b, 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n)
Ethernet interface type: Fast Ethernet
Supported network protocols: IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, RTSP
Ethernet LAN: Yes
Wi-Fi: Yes
System requirements
Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: iOS
Certification: CE, RoHS, FCC, IP66
Performance
Antenna type: External
Connectivity technology: Wireless

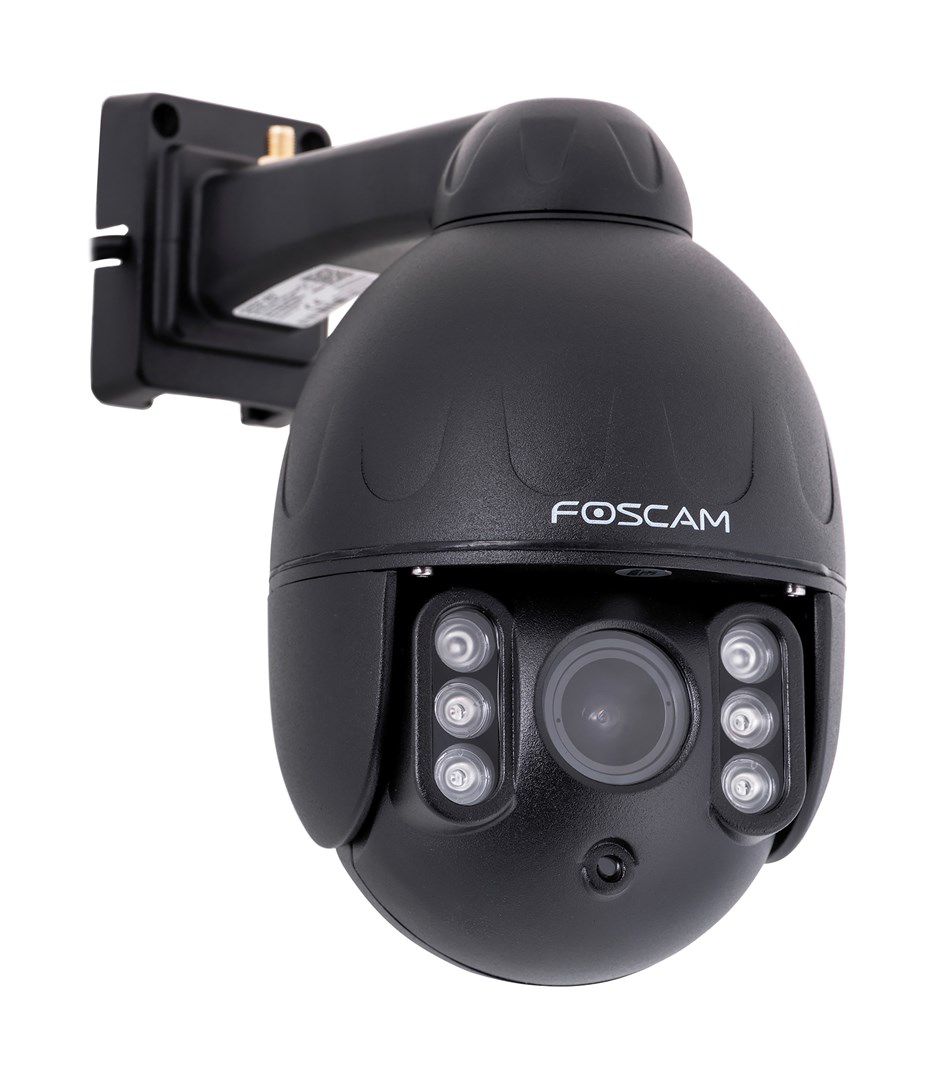

Type: IP security camera
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor
Packaging content
Cables included: LAN (RJ-45)
Number of cameras: 1
Audio
Audio system: 2-way
Audio formats supported: PCM
Audio detection: Yes
Built-in speaker(s): Yes
Storage
Card reader integrated: Yes
Maximum memory card size: 256 GB
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Camera
Minimum illumination: 0 lx
Lens viewing angle, diagonal: 97°
Lens viewing angle, horizontal: 83°
Camera pan control: Yes
Lens viewing angle, vertical: 44.6°
Camera tilt control: Yes
Image sensor
Sensor type: CMOS
Video
Supported graphics resolutions: 1920 x 1080 (HD 1080), 2304 x 1296, 1280 x 720 (HD 720), 640 x 480 (VGA), 2560 x 1440
Maximum resolution: 2304 x 1536 pixels
Supported video modes: 1080p, 720p
Total megapixels: 4 MP
Video formats supported: H.264
Image quality adjustment: Contrast, Saturation, Sharpness, Brightness
Frame rate: 20 fps
Video compression formats: H.264
Flip & mirror: Yes
Night vision
LED type: IR
Night vision distance: 50 m
Number of illumination LEDs: 6
Night vision: Yes
Lens system
Number of lenses: 1
Zoom capability: Yes
Optical zoom: 4x
Minimum aperture number: 1.8
Focal length range: 2.8 - 12 mm
