Technical details
Sustainability certificates: Triman, ErP
Sustainability compliance: Yes
Design
On/off switch: Yes
Number of fans: 1 fan(s)
Product colour: Black
Cooling type: Active
Fan location: Top
Fan diameter: 12 cm
Power
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+12V): 70.5 A
Max output current (+5Vsb): 3 A
Power Good signal delay range: 100 - 150 ms
AC input voltage: 100 - 240 V
Power protection features: Over power, Under voltage, Surge & inrush protection (SIP), Overheating, Surge protection, Short circuit, Over voltage, No load operation
AC input frequency: 50/60 Hz
Input current: 10 - 5 A
Total power: 850 W
Power Factor Correction (PFC) type: Active
Efficiency: 90%
Combined power (+12V): 846 W
Combined power (+3.3V): 110 W
Max output current (+3.3V): 20 A
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Hold time: 16 ms
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Height: 86 mm
Depth: 140 mm
Width: 150 mm
Performance
80 PLUS certification: 80 PLUS Gold
Bearing technology: FDB
ATX version: 3.1
Mean time between failures (MTBF): 100000 h
Purpose: PC
Power supply unit (PSU) form factor: ATX
Packaging data
Package type: Box

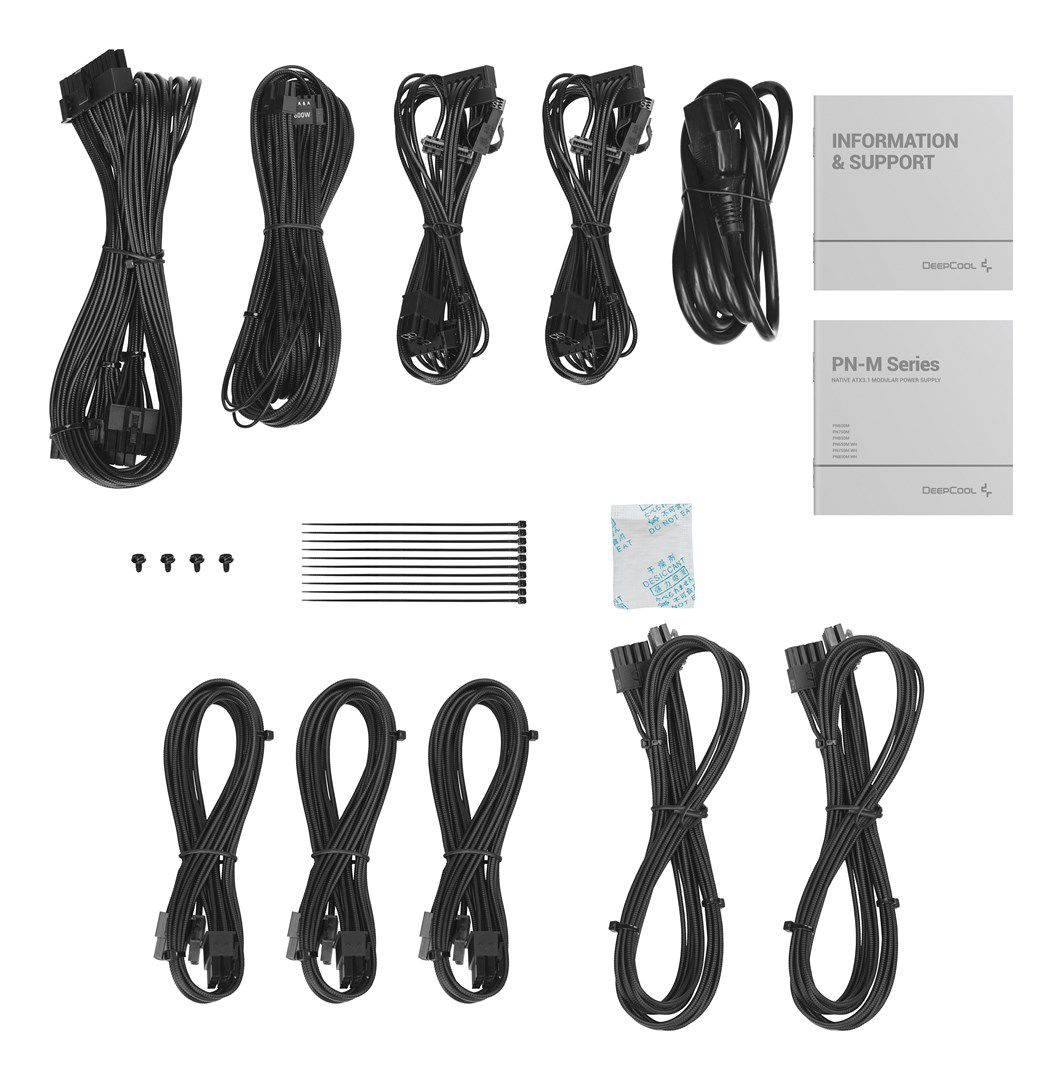

Packaging content
Cable tie(s) included: Yes
Cables included: AC
Certificates
Compliance certificates: Federal Communications Commission (FCC), EAC, WEEE, RCM, RoHS, CE, CCC
Ports & interfaces
SATA power cable length: 570, 690, 810, 450
CPU power cable length: 70 cm
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power cable length: 930 mm
Motherboard power cable length: 55 cm
PCI Express power connectors (16-pin): 1
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 2
Cabling type: Fully-Modular
PCI Express power connectors (6+2 pin): 3
