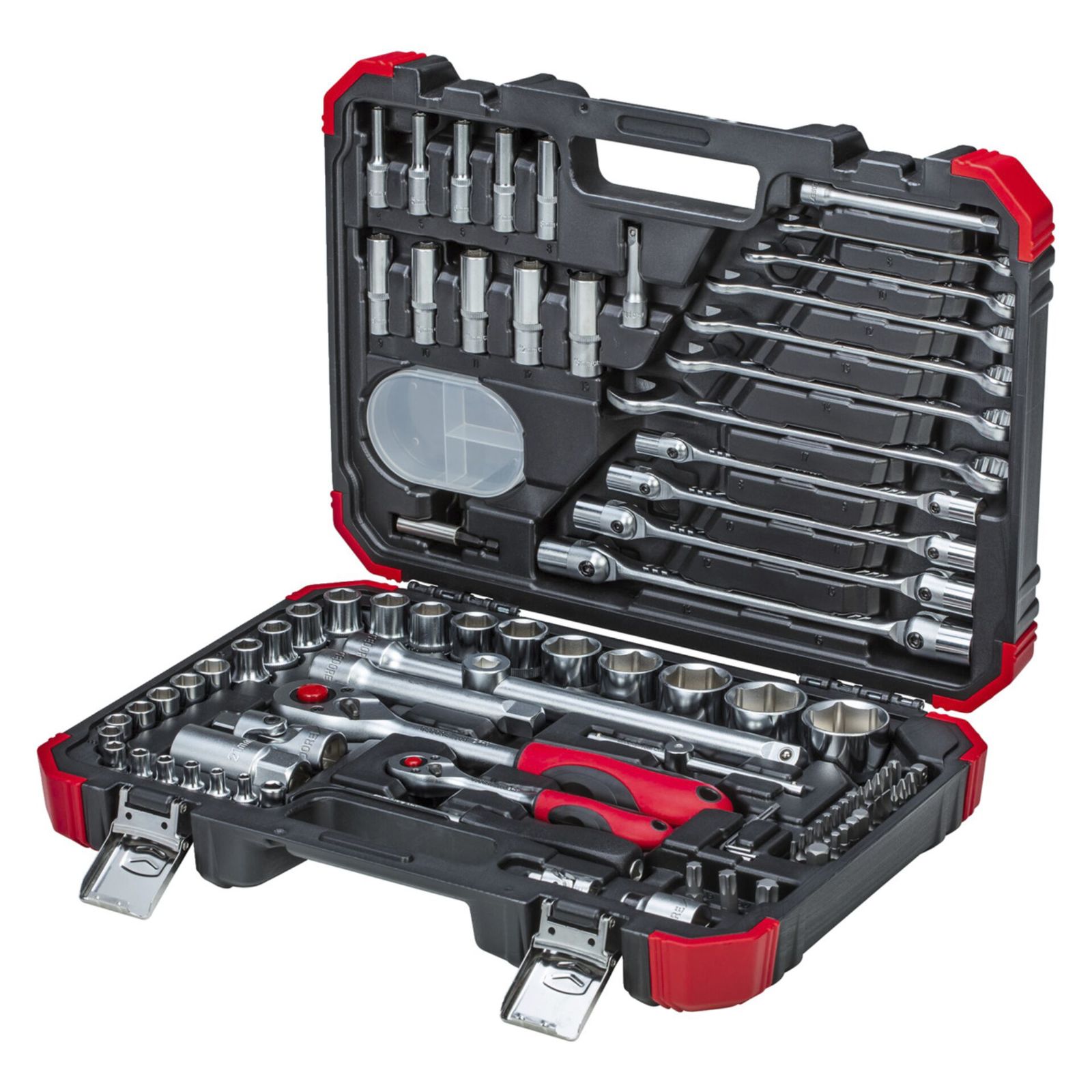

GEDORE red Socket Set 1 /4 + 1 /2 92-pieces

GEDORE red socket spanner set 1/4" + 1/2" 92 pieces

Scope of delivery:

• Connection square drive to DIN 3120, ISO 1174, with ball catch groove
• Internal square drive to DIN 3120, ISO 1174, with ball catch groove
• 2C reversible ratchet, right/left rotation reversible by lever, push button release, fine toothing, oval head, 2-component handle, hand-friendly power transmission, for sockets
• Square socket 1/4", 1-component handle with square socket
• Socket 1/4" + 1/2", hexagonal, metric, design according to DIN 3124, ISO 2725
• Spark plug socket 1/2", with pressed-in retaining rubber and additional drive hexagon SW 23
• Socket spanner extension 1/4"+1/2"
• Cross handle with sliding piece 1/4", design according to DIN 3122, ISO 3315
• Cardan joint 1/4"+ 1/2", joint screwed, design according to DIN 3123 - C 12.5
• Enlargement adapter/sliding piece 3/8" x 1/2", for driving sockets and screwdriver bits
• Bit adapter 1/4", with hexagon socket and square socket, for all bits and tools with 1/4" hexagon socket
• Bit adapter 1/2", with hexagon socket and square socket, for all bits and tools with 5/16" hexagon socket
• Bit holder with magnet 1/4", machine-operated, design according to DIN 7427
• Bit 1/4", hexagonal, slotted, PH, PZ, TX suitable for holder according to DIN ISO 1173 - D 6,3
• Bit 5/16", TX suitable for holders according to DIN ISO 1173 - D 8
• Double-ended spanner, 12 mm, metric, screwed joint
• Combination spanners, metric, design to DIN 3113, form A, ISO 3318, ISO 7738, ring side angled 15°, jaw position 15
• Hexagon socket offset screwdriver set, design to DIN ISO 2936
• Small parts magazine, plastic
• Ideal for all screwing tasks during maintenance, in the trade or in the workshop
• Chrome-vanadium steel, satin chrome-plated
• Plastic case in GEDORE red design
• Clamp-secured tools
• Metal hinges/lock

Technical data:

• 1/4" 2K lever-action ratchet fine-toothed, 72 teeth, length 150 mm
• 1/4" square socket, length 165 mm
• 1/4" hexagon socket SW 4 / 4.5 / 5 / 5.5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 mm
• 1/4" Socket hexagonal SW 4 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 mm, length 50 mm
• 1/4" socket extension 50 / 100 mm
• 1/4" cross handle with slide, length 115 mm
• 1/4" universal joint, length 32 mm
• Bit holder 1/4" hexagonal / 1/4" hexagonal, with magnet, length 60 mm
• Bit adapter 1/4" square / 1/4" hexagonal, length 25 mm
• Drive adapter 1/4" hexagonal x hexagonal with ball lock, length 25 mm
• 1/4" bits inner hexagon 3 / 4 5 / 6 / 8 / 10, length 25 mm
• 1/4" bits slotted 4 / 5,5 / 7, length 25 mm
• 1/4" bits cross recess PH 0 / 1 / 2 / 3 / 4, length 25 mm
• 1/4" bits cross recess PZ 1 / 2 / 3, length 25 mm
• 1/4" bits TX T8 / T10 / T15 / T20 / T25 / T27 / T30 / T40, length 25 mm
• 5/16" bits TX T45 / T50 / T55, length 30 mm
• 1/2" 2K lever ratchet fine toothing, 72 teeth, length 250 mm
• 1/2" Hexagon socket SW 10 / 11 / 12 / 13 / 14 / 15 / 17 / 19 / 22 / 24 / 27 / 30 / 32 mm
• 1/2" Spark plug socket 21 mm (13/16"), length 65 mm
• 1/2" socket spanner extension 125 / 250 mm
• 1/2" universal joint, length 65 mm
• Enlargement piece / sliding piece 3/8" x 1/2", length 44 mm
• Bit adapter 1/2" square x 5/16" hexagon, length 38 mm
• Double ended spanner SW 8x9 / 10x11 / 12x13 / 14x15 mm
• Combination spanner SW 8 / 10 / 12 / 13 / 14 / 17 mm
• Allen key hexagon SW 1.5 / 2 / 2.5 mm
