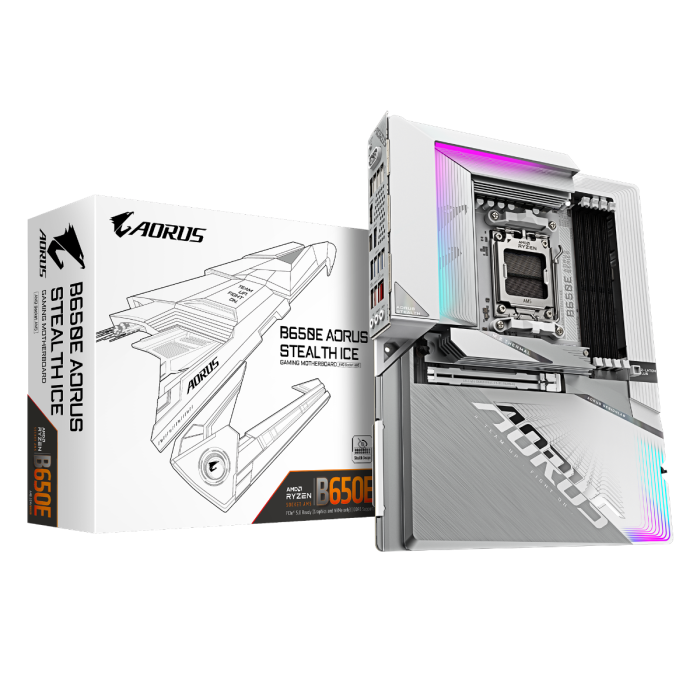

GIGABYTE B650E A STEALTH ICE, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, WiFi, AM5 ATX

BASE: AMD AM5
FOR PROCESSORS: AMD Ryzen 7000 / 8000 / 9000 series
FORMAT: ATX format 30.5 cm × 24.4 cm
CONNECTOR CHIP: AMD B650
REMINDER:
4 x DDR5 DIMM non-ECC, support for frequencies up to 8000 MHz (OC) and up to 256 GB total capacity, Dual channel architecture, support for un-buffered DIMM modules
RAID: DA (0,1,10) for NVMe and SATA SSD devices
EXPANSION SLOTS:
1 x PCI Express 5.0 x16 integrated in the processor
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless module: MediaTek Wi-Fi 7 MT7925
SOUND CARD: Realtek Audio CODEC High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTORS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan connector
1 x CPU fan/water cooling connector
3 x system fan connectors
1 x system fan/water cooling connector
2 x ARGB Gen2 LED connectors
1 x RGB LED connector
3 x M.2 connectors
4 x SATA 6Gb/s connectors
1 x front panel connector
1 x front audio connector
1 x USB Type-C® with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 connector
2 x USB 2.0/1.1 connectors
1 x TPM connector (for GC-TPM2.0 SPI modules)
1 x HDMI connector (Note 2)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
EXTERNAL CONNECTORS:
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI connector
1 x USB Type-C® (Note 2) (DisplayPort (Note 1))
2 x USB 3.2 Gen 2 Type-A (red)
5 x USB 3.2 Gen 1
4 x USB 2.0/1.1
1 x RJ-45
3 x audio connectors
OPTIONAL:
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Hardware Monitoring (H/W Monitoring)
Voltage Detection
Temperature Detection
Fan speed detection
Water cooling flow detection
Fan fault warning
Fan speed monitoring
Operating system: support for Windows 11 64-bit
BIOS
1 x 256 Mbit flash
Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
