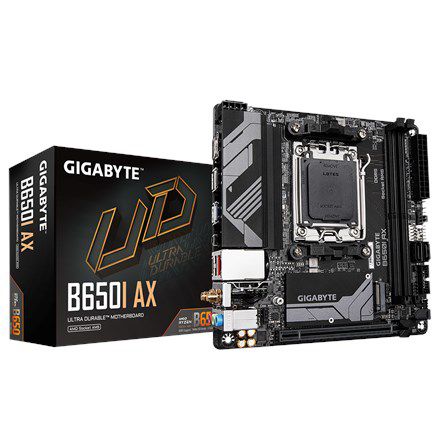

Gigabyte B650I AX 1.0 Processor family AMD Processor socket AM5 DDR5 DIMM Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 2

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

Graphics
HDCP: Yes
Parallel processing technology support: Not supported
Discrete graphics support: Yes
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0

Features
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: mini ITX
Motherboard chipset family: AMD
Motherboard chipset: AMD B650
Power source type: ATX
PC health monitoring: Fan, Voltage, Temperature
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio chip: Realtek ALC897
Product colour: Bronze

Memory
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 6400 MHz
Number of memory slots: 2
Unbuffered memory: Yes
Memory channels: Dual-channel
Maximum internal memory per slot: 64 GB
ECC сompatibility: Non-ECC
Maximum internal memory: 128 GB
Supported memory clock speeds: 4800, 6000, 6200, 6400, 5600 MHz, 4400, 5200

Weight & dimensions
Height: 35 mm
Depth: 170 mm
Width: 170 mm

Network
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
WLAN controller model: Realtek RTL8852CE
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
LAN controller: Realtek RTL8125
Bluetooth: Yes

Internal I/O
12V power connector: Yes
RGB LED pin header: Yes
Number of SATA III connectors: 2
Number of EATX power connectors: 1
USB 2.0 connectors: 1
Number of chassis fan connectors: 2
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Front panel connector: Yes
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 2

BIOS
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS jumper: Yes
ACPI version: 5.0
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI

Packaging data
Package height: 65 mm
Package depth: 180 mm
Package width: 222 mm
Package weight: 879 g
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software

Packaging content
Antenna included: Yes
Screws included: Yes
Batteries included: Yes

Storage controllers
Number of HDDs supported: 2
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
RAID levels: 1, 0
Number of storage drives supported: 3

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Line-in: Yes
WiFi-AP antenna jack: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 2.0 ports quantity: 3
Microphone in: Yes
HDMI version: 2.1
HDMI ports quantity: 1
Headphone outputs: 1
DisplayPort version: 1.4

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0

Battery
Number of battery cells: 1
Battery weight: 3 g
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g

Safety warning
Warnings: Do not disassemble by yourself., Product may contain materials harmful to the environment, dispose of in accordance with local regulations., Protect against moisture.
