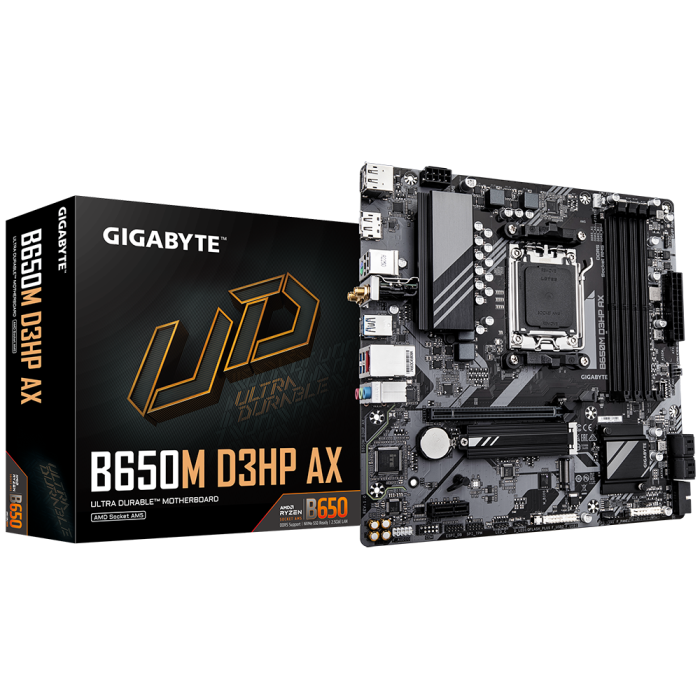

GIGABYTE B650M D3HP AX, DDR5, SATA3, USB3.2Gen1, DP, 2.5GbE, WiFi, AM5 mATX

BASE: AMD AM5
FOR PROCESSORS: AMD Ryzen 7000/8000/9000 Series
FORMAT: mATX format 24.4 cm x 24.4 cm
CONNECTOR CHIP: AMD B650
REMINDER:
4 x non-ECC DDR5 DIMMs, support for 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5600 / 5200 / 4800 MHz, up to a total of 256 GB capacity, Dual channel memory architecture, support for non-ECC Un-buffered DIMM modules, support for AMD EXPO™ and Extreme Memory Profile (XMP)
RAID: YES (0,1,10)
EXPANSION SLOTS:
1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x1
NETWORK CARD: Realtek 2.5 GbE LAN chip
SOUND CARD: Realtek High Definition Audio codec (2/4/5.1/7.1-channel)
INTERNAL CONNECTORS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
several x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header
1 x Clear CMOS jumper
EXTERNAL CONNECTORS:
4 x USB 2.0/1.1 ports
2 x USB 3.2 Gen 1 ports
1 x USB-C port (if present on the board)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
1 x Q-Flash Plus button
ADD-ON:
Digital VRM
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
