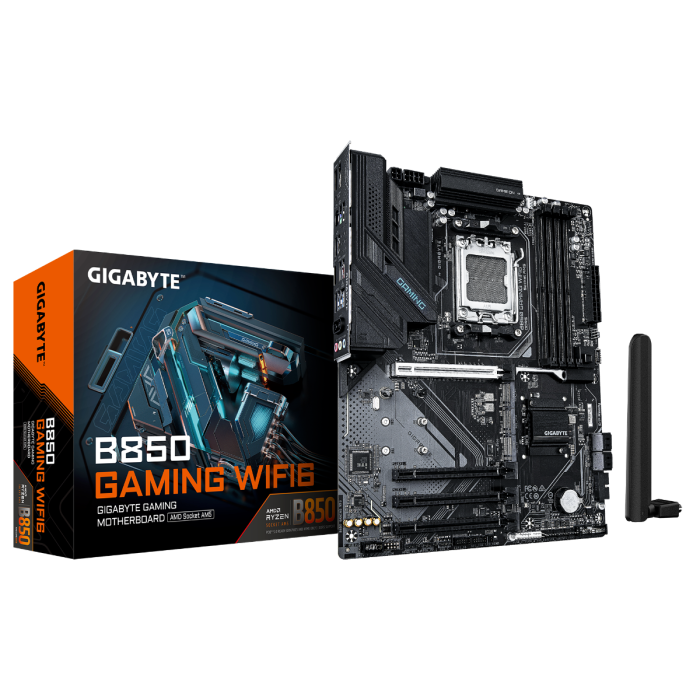

GIGABYTE B850 GAMING WF6, DDR5, SATA3, USB3.2Gen2, DP, WiFi, AM5 ATX

SOCKET: AMD AM5
FOR PROCESSORS: AMD Ryzen 7000 / 8000 / 9000 series
FORMAT: ATX format 30.5 cm × 24.4 cm
SOC: AMD B850
MEMORY:
4 x DDR5 DIMM non-ECC, support for frequencies up to 8200 MHz (OC) and up to a total capacity of 256 GB, dual channel architecture, support for unbuffered DIMM modules
RAID: YES (0,1,5,10)
EXPANSION SLOTS:
1 x PCI Express 5.0 x16
3 x PCI Express 3.0 x1
NETWORK CARD: GbE LAN (1 Gb/s)
SOUND CARD: Realtek® Audio CODEC High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTORS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
EXTERNAL CONNECTORS:
1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
3 x audio jacks
ADDITIONAL:
6+2+2 Digital VRM Design
UD Power Connector (24-pin ATX and 4+8-pin CPU)
VRM Thermal Armor
Smart Fan 6
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Norton® Internet Security (OEM version)
LAN bandwidth management software
