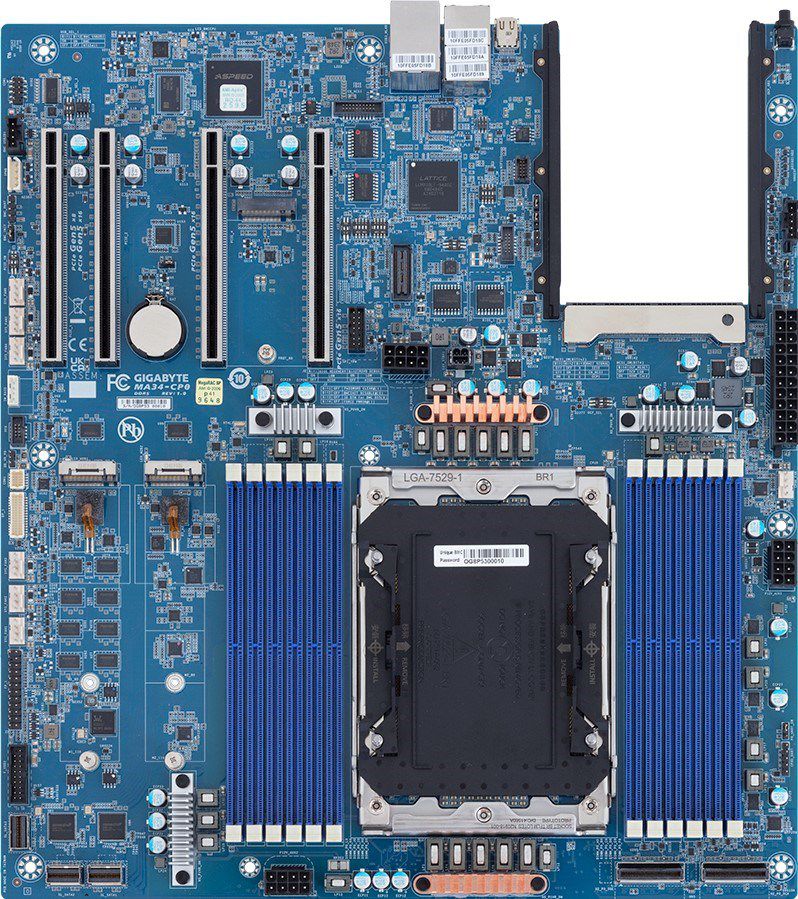

Gigabyte MA34-CP0 LGA7529 Intel motherboard

Processor
Maximum number of SMP processors: 1
Compatible processor series: Intel Xeon 6
Processor manufacturer: Intel
Processor socket: LGA 7529

Graphics
On-board graphics card model: Aspeed AST2600

Features
Component for: Server/workstation
Motherboard chipset: System on Chip
Product colour: Blue
Motherboard form factor: EATX

Memory
Number of memory slots: 12
Supported memory types: DDR5 RDIMM/MRDIMM
Memory slots type: DIMM
Supported memory clock speeds: 8800, 6400 MHz
Memory channels: Twelve-channel

Weight & dimensions
Width: 304.8 mm
Depth: 335,2 mm

Network
Ethernet interface type: 1 Gigabit Ethernet
Ethernet LAN: Yes

Internal I/O
Number of chassis fan connectors: 6
Number of SlimSAS connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes
PMBus connector: 1
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
IPMB connector: 1
CPU fan connector: Yes
TPM connector: Yes
USB 2.0 connectors: 1

Packaging data
Package height: 78 mm
Package width: 409 mm
Package depth: 355 mm

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Port Management LAN: Yes, 1
Mini DisplayPorts quantity: 1

Expansion slots
Number of M.2 (M) slots: 2
