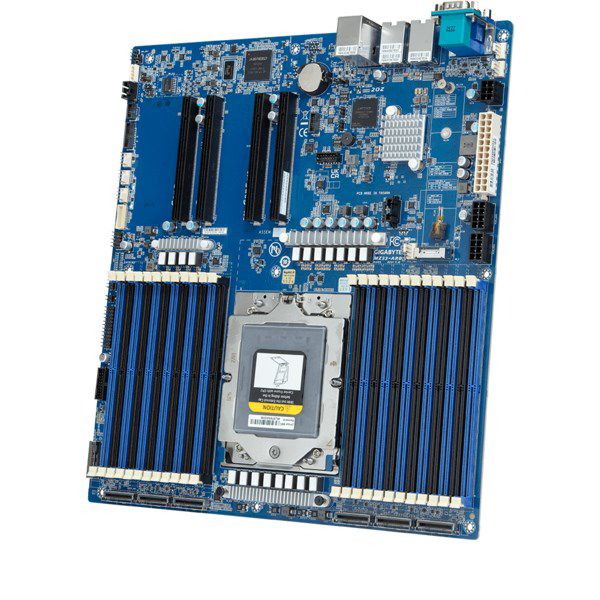

GIGABYTE MZ33-AR0 motherboard Socket SP5 Extended ATX

Processor
Processor manufacturer: AMD
Compatible processor series: AMD EPYC 9004
Processor socket: Socket SP5

Graphics
On-board graphics card model: Aspeed AST2600

Features
Motherboard form factor: Extended ATX
Component for: Server
Power source type: ATX
Product colour: Blue
Motherboard chipset family: AMD

Memory
Supported memory clock speeds: 3600, 4000, 4800, 4400 MHz
Number of memory slots: 24
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM

Operational conditions
Operating relative humidity (H-H): 8 - 80%
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): 10 - 40 °C
Storage relative humidity (H-H): 20 - 95%

Weight & dimensions
Depth: 330 mm
Width: 305 mm

Network
LAN controller: Broadcom BCM57416
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes

Internal I/O
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes
Number of EPS power connectors (8-pin): 2
Front panel connector: Yes
TPM connector: Yes

Packaging data
Package width: 409 mm
Package height: 78 mm
Package depth: 355 mm

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive interfaces: M.2
Number of storage drives supported: 8

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
COM ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 5.x) slots: 4
