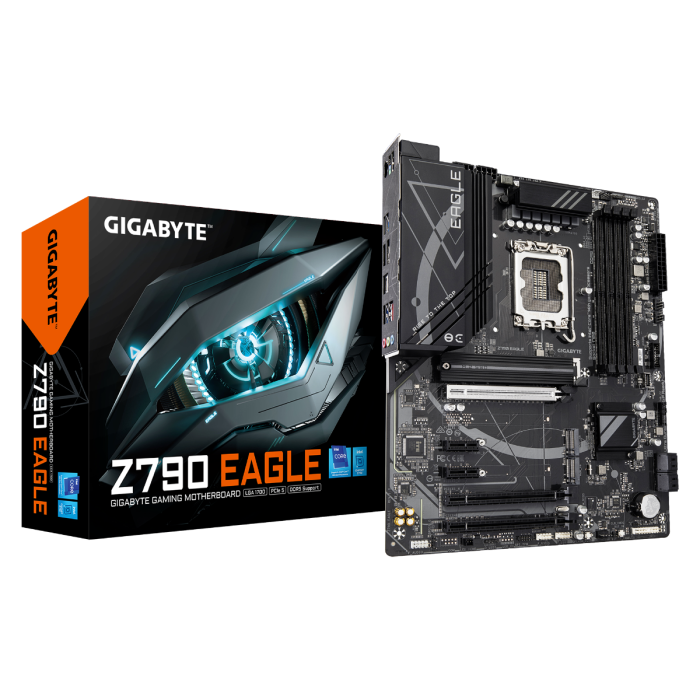

GIGABYTE Z790 EAGLE, DDR5, SATA3, USB3.2Gen2, DP, 2.5GbE, LGA1700 ATX

SOCKET: Intel LGA1700
FOR PROCESSORS: Intel Core 12th/13th/14th Generation Series
FORMAT: ATX format 30.5 cm x 24.4 cm
CHIPSET: Intel Z790
MEMORY:
4 x DDR5 DIMM non-ECC, support for frequencies up to 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5600 / 5200 / 4800MHz, up to a total capacity of 256 GB, dual channel memory architecture, support for non-ECC unbuffered DIMM modules, support for AMD EXtended Profiles for Overclocking (AMD EXPO™) or XMP (as this is an Intel XMP platform)
RAID: YES (0,1,5,10)
EXPANSION SLOTS:
1 x PCI Express 5.0 x16
1 x PCI Express 4.0 x16 (x4 mode)
1 x PCI Express 3.0 x1
NETWORK CARD: Realtek 2.5 GbE LAN chip
SOUND CARD: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTORS:
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 3.2 Gen 1 Type-C header – MISSING if single or multiple
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2) – MISSING if more detailed
1 x Clear CMOS jumper
EXTERNAL CONNECTORS:
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
ADDITIONAL:
Digital VRM Twin 12*+1+1 phase design
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan failure warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Norton Internet Security (OEM version)
LAN bandwidth management software
