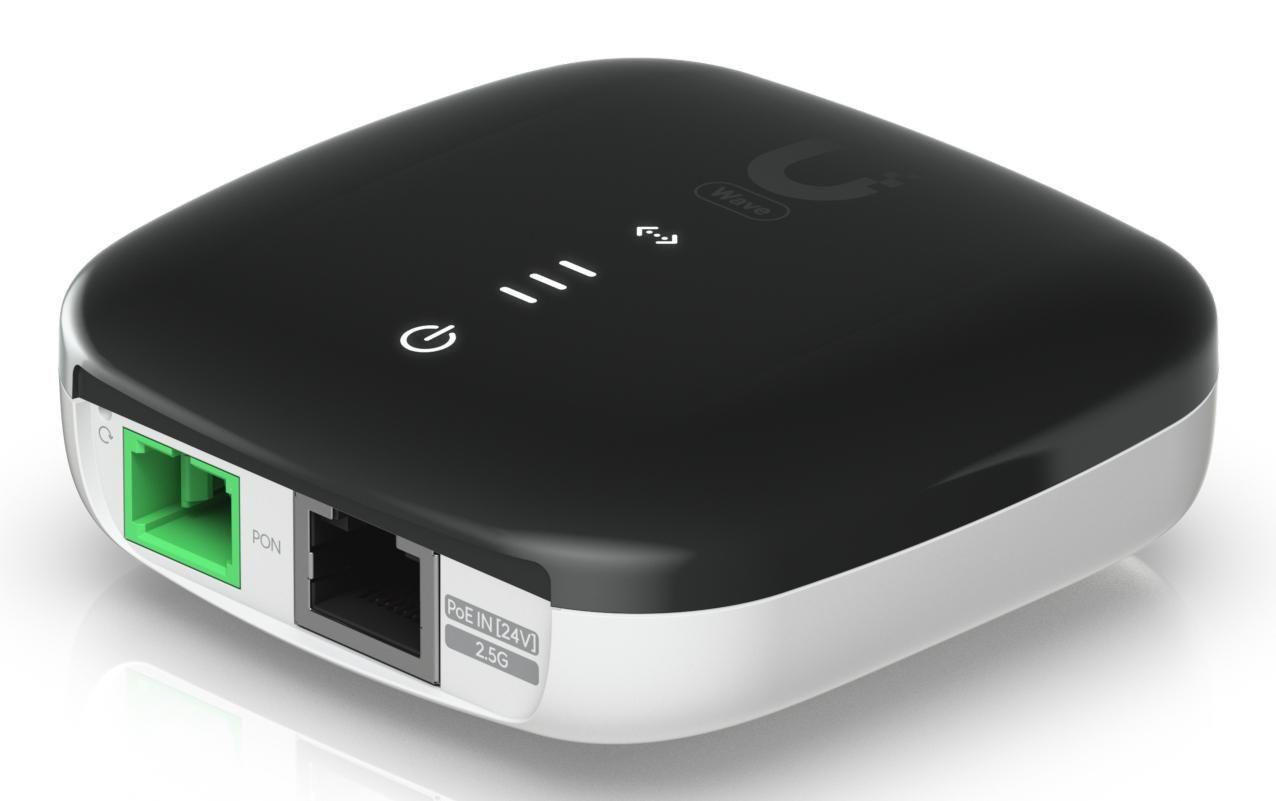

GPON optical network unit

Design
LED indicators: LAN, Status, Power
Product type: Optical network unit (ONU)
Product colour: Black
Housing material: Polycarbonate (PC)

Power
Power consumption (max): 5 W

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -15 - 45 °C

Management features
Reset button: Yes

Weight & dimensions
Height: 26.4 mm
Weight: 78 g
Depth: 76.5 mm
Width: 76.5 mm

Network
Ethernet LAN data rates: 2500 Mbit/s, 1000 Mbit/s
ITU standards: G.984
Tx power (min): 1.5 dBmW
Switch layer: L2/L3
Tx power (max): 5 dBmW
Upstream data rate: 1244 Mbit/s
Tx wavelength (min): 1310 nm
Downstream data rate: 2488 Mbit/s
VLAN support: Yes
Transmission distance (max): 20 km
Rx wavelength (min): 1490 nm

Packaging content
Quantity per pack: 1 pc(s)

Certificates
Compliance certificates: Industry Canada (IC), CE, Federal Communications Commission (FCC)

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Fiber optic connector: SC/APC
Fiber ports quantity: 1
