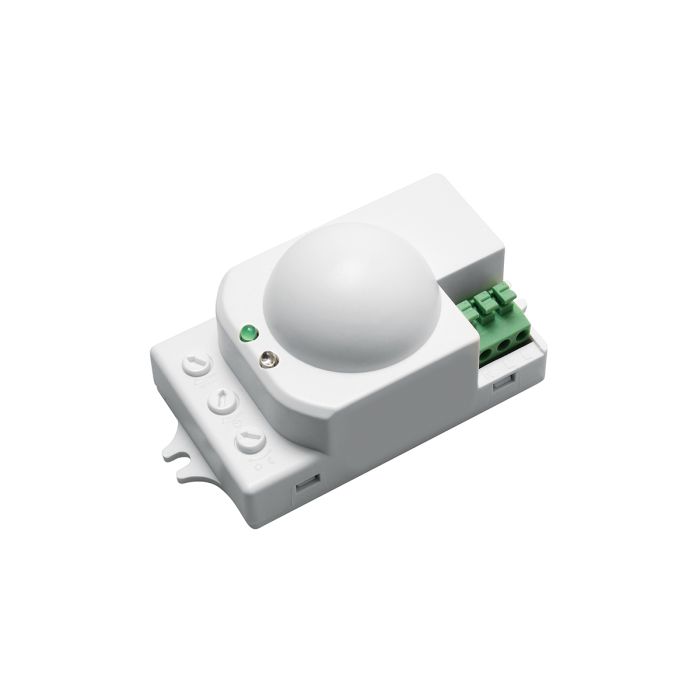

GTV 360° microwave motion sensor

The microwave motion sensor operates on the basis of heat and is more sensitive than an IR sensor. It can detect movement even through doors or thin walls.

In addition to light sensitivity and operating time settings, this sensor also has a sensitivity setting. This means that the sensor's range can be adjusted.

Suitable for indoor use (e.g., hallways, stairways, garages) and outdoor use (parking lots, gardens, courtyards) with a waterproof housing.

It connects directly to a 220V power supply.

It can be mounted on the ceiling or wall:

• recommended ceiling height for sensor installation: 2 - 8m
• recommended wall height for sensor installation: 1.5 - 3.5 m

Possible settings:

• custom light sensitivity setting: <3-2000LUX
• operation time setting: from 10s to 12min
• sensitivity setting (this sets the sensor range)

Technical specifications:

Sensor type: microwave Voltage: AC 220-240V, 50/60Hz

Maximum permissible load:

1,200W Detection range: 2m - 8m (radius) (<24°C) Detection angle: 360 Motion detection speed: 0.6 - 1.5 m/s Dimensions: 92 x 46 x 45 mm Adjustable operating time: Min. 5 sec ± 3 sec, max. 10 min ± 1 min Adjustable light sensitivity: <3-2000LUX Power consumption: approx. 0.9W Protection standard: IP20 Color white
