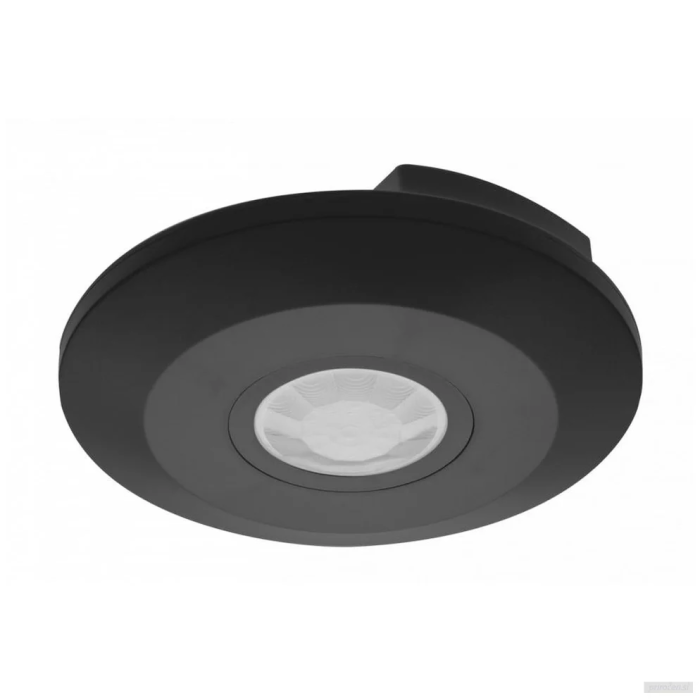

GTV IR motion sensor, ceiling 360°, black

The motion sensor detects movements within a range of up to 6 m and, depending on the set light parameters, switches on one or more connected lights.

Suitable for indoor use only.

It is connected directly to the 220V mains supply.

It is designed for ceiling mounting.

Possible settings:
operating time setting: from 10s to 15min
light sensitivity setting: 3-2000Lux

Installation:
mount the sensor with the housing to the ceiling using screws
Then place the cover on the sensor housing, which clicks into place
The recommended ceiling height for sensor installation is at least 2.2 m.

TECHNICAL DATA
Sensor type: infrared, ceiling
Voltage: AC 220-240V, 50/60Hz
Maximum permissible load:
0.1W - 1,000W for LED
0.1W - 2,000W for conventional lamps

Detection range: max. 6m
Detection angle: 360°
Motion detection speed: 0.6 - 1.5m/s
Dimensions: Ø115 x 24mm
Adjustable operating time: min. 10 sec ± 3 sec, max. 15 min ± 2 min
Adjustable light sensitivity: <3-2000LUX
Protection standard: IP20
Color: black
