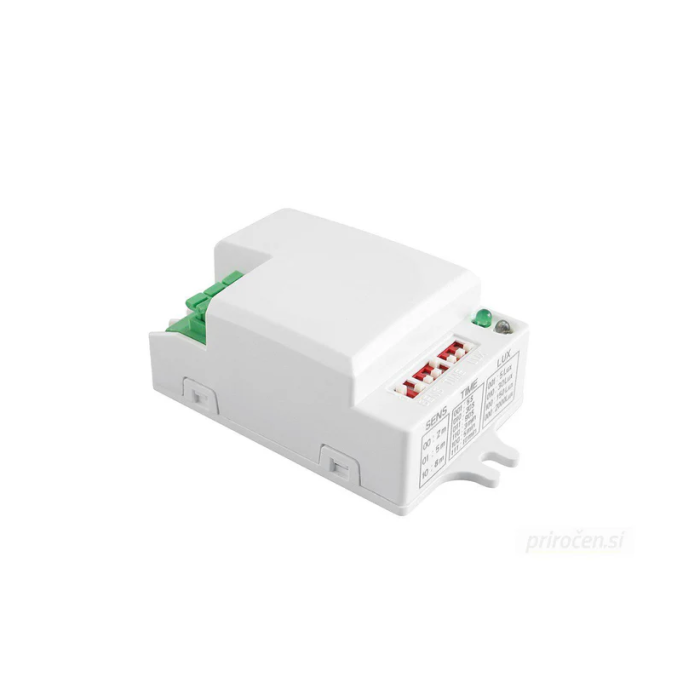

GTV microwave motion sensor 180° /360°

The microwave motion sensor operates on the basis of heat and is more sensitive than an IR sensor. It can detect movement even through doors or thin walls.

In addition to light sensitivity and operating time settings, this sensor also has a sensitivity setting. This means that the sensor's range can be adjusted.

Suitable for indoor use (e.g., hallways, stairways, garages) and outdoor use (parking lots, gardens, courtyards) together with a waterproof housing (click).

It connects directly to the 220V household power supply.

It can be mounted on the ceiling or wall:

• recommended ceiling height for sensor installation: 2 - 8m
• recommended wall height for sensor installation: 1.5 - 3.5 m

Possible settings:

• custom light sensitivity setting: <3-2000LUX
• operation time setting: from 5s to 10min
• sensitivity setting (this sets the sensor range to 2 m, 5 m, or 8 m)

TECHNICAL DATA
Sensor type: microwave
Voltage: AC 220-240V, 50/60Hz
Maximum permissible load: 1,200W
Detection range: 2 m - 8 m (radius) (<24°C)
Detection angle: 360° / 180°
Motion detection speed: 0.6 - 1.5m/s
Dimensions: 70 x 40 x 25mm
Adjustable operating time: Min. 5 sec ± 3 sec, max. 10 min ± 1 min
Adjustable light sensitivity: <3-2000LUX
Power consumption: approx. 0.9W
Protection standard: IP20
Color: white
