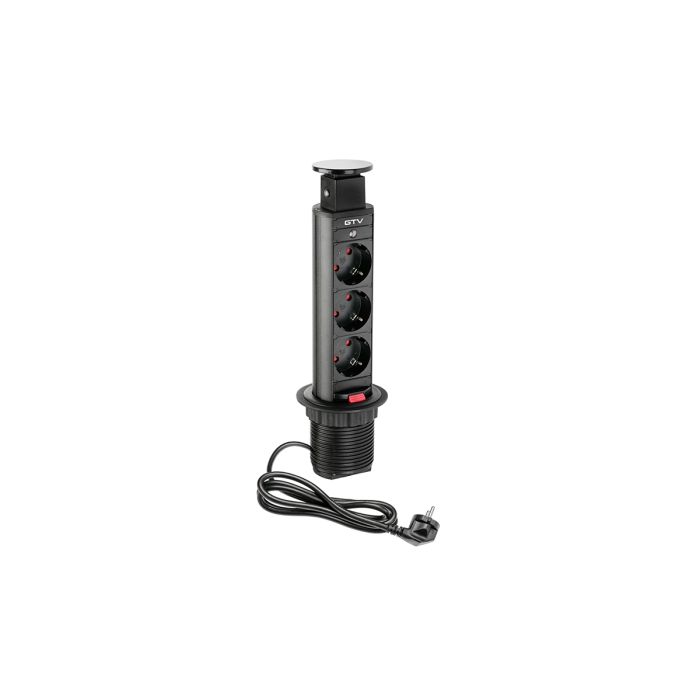

GTV Submersible socket 3x220V Ø60mm, black

The GTV flush-mounted socket helps save valuable space in your kitchen or work area.

For office, kitchen, or other furniture.

With cable and plug for easy connection to the mains.

Installation:
depending on the surface (wood, metal, or stone), you will need a 60 mm diameter crown bit; use an electric drill to drill a hole in the predetermined location, thread the connection cable with the socket through the hole, install the mounting ring from the bottom, and the socket is ready for use.

Use:
Press the socket cover and it will pop out automatically, then pull the socket upwards until it is fully extended. After use, press the red pin and the socket will retract into its housing. To close completely, press the socket cover again.

TECHNICAL DATA Number of sockets: 3x Schuko socket 16A/250V AC Other connections: / Max. permissible load: 3500W Protection standard: IP20 Child protection: YES Material: plastic + aluminum Installation dimensions: 60 mm (diameter) Suitable for surface thicknesses: 18-52 mm Installation: built-in Fastening: no screws required Connection cable length: 1.5 m Plug: YES Weight (net): 664 g
