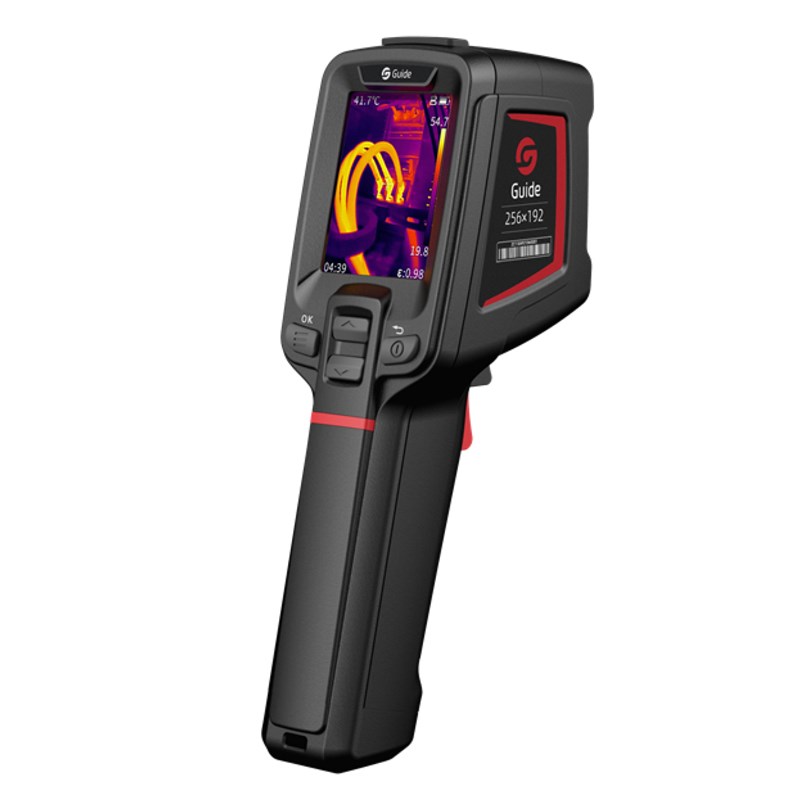

Guide Sensmart E2+ thermal imaging camera Vanadium Oxide Uncooled Focal Plane Arrays Black 256 x 192 pixels Built-in display LCD

Technical details
Warranty period: 2 year(s)

Features
Maximum memory card size: 16 GB
Wi-Fi: Yes

Design
Display diagonal: 6.1 cm (2.4")
Built-in display: Yes
Housing material: Metal
Product colour: Black
Display type: LCD

Weight & dimensions
Height: 76 mm
Depth: 62 mm
Weight: 350 g
Width: 194 mm

Performance
Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays
Temperature measurement range: -20 - 550 °C
Accuracy: 2 °C
Maximum resolution: 512 x 384 pixels
Horizontal field of view: 25°
Thermal frame rate: 25 Hz
Internal storage capacity: 16 GB
Vertical field of view: 19°
Image frequency: 25 Hz
Built-in laser pointer: Yes

Packaging data
Package type: Box

Packaging content
Wrist strap included: Yes
Cables included: USB Type-A to USB Type-C
Battery charger included: Yes
Manual: Yes

Ports & interfaces
USB port: Yes

Battery
Battery life (max): 11 h

Lens system
Sensor resolution (thermal module): 256 x 192 pixels

Optical module
Built-in camera: Yes
Total megapixels (optical module): 2 MP
