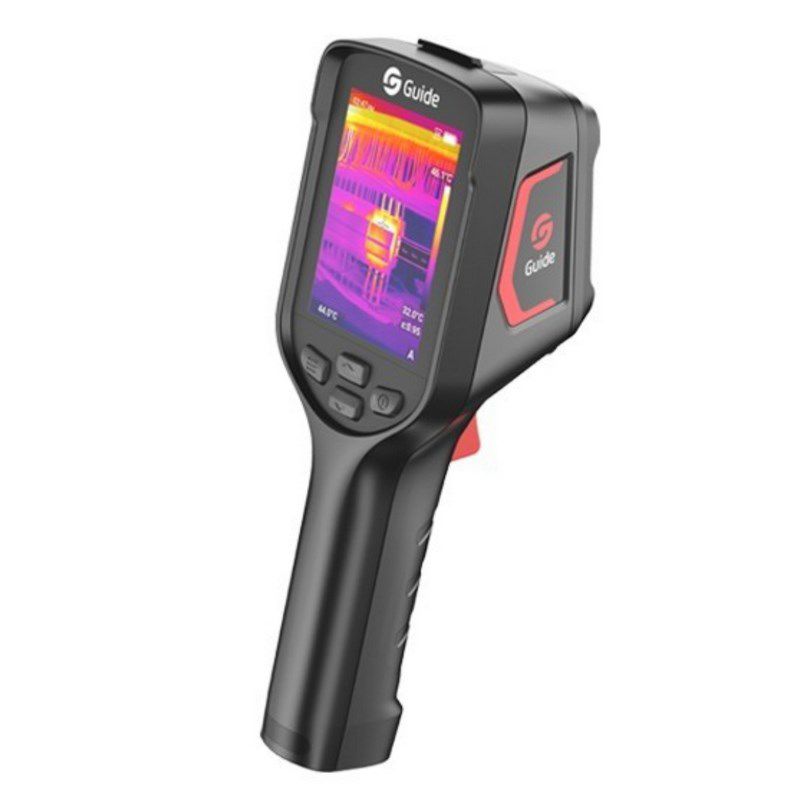

Guide Sensmart E4 thermal imaging camera Graphite 640 x 480 pixels Built-in display LCD

Features
Image formats supported: JPEG
Wi-Fi standards: 802.11b
Maximum memory card size: 32 GB
Wi-Fi: Yes

Design
Drop proof: 200 cm
Display type: LCD
International Protection (IP) code: IP54
Display diagonal: 8.89 cm (3.5")
Built-in display: Yes
Display resolution: 640 x 480 pixels
Housing material: Metal
Product colour: Graphite

Weight & dimensions
Weight: 370 g
Height: 76 mm
Depth: 62 mm
Width: 194 mm

Performance
Built-in laser pointer: Yes
Built-in viewfinder: Yes
Image modes: Thermal, Visual
Image frequency: 9 Hz
Horizontal field of view: 28°
Vertical field of view: 37°
Thermal frame rate: 30 Hz
Temperature measurement range: -20 - 650 °C
Internal storage capacity: 32 GB
Built-in flashlight: Yes
Thermal sensitivity (NETD): 25 mK
Maximum resolution: 384 x 288 pixels
Accuracy: 2 °C

Packaging content
Manual: Yes
Battery charger included: Yes
Charging base: Yes
Wrist strap included: Yes

Ports & interfaces
USB connector type: USB Type-C
USB port: Yes

Battery
Battery life (max): 12 h
Battery technology: Lithium-Ion (Li-Ion)

Lens system
Sensor resolution (thermal module): 640 x 480 pixels

Optical module
Total megapixels (optical module): 2 MP
Built-in camera: Yes
