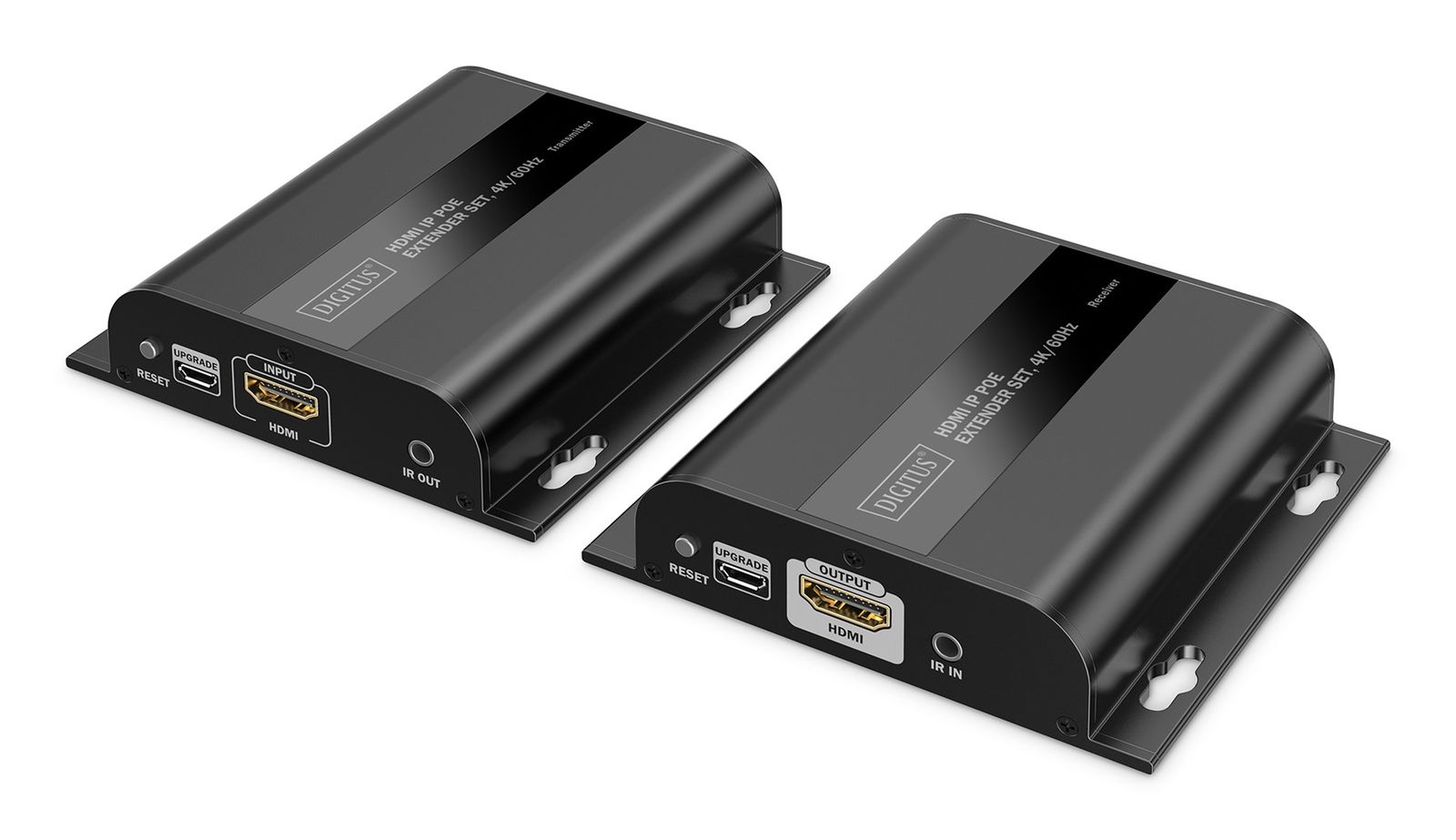

Features HDCP: Yes Supported video modes: 2160p Wall mountable: Yes Cable types supported: Cat6 LED indicators: Yes Maximum resolution: 4096 x 2160 pixels Bandwidth: 18 Gbit/s Maximum transfer distance: 200 m Material: Metal Type: AV transmitter & receiver HDCP version: 1.4/2.2 Product colour: Black Maximum refresh rate: 60 Hz Electrostatic Discharge (ESD) protection: Yes
Power Output current: 1 A Power consumption (receiver) (max): 2.5 W External power adapter: Yes Power source type: DC Power over Ethernet (PoE): Yes Operating voltage (receiver): 5 V Power consumption (transmitter) (max): 2.5 W Operating voltage (transmitter): 5 V
Operational conditions Operating temperature (T-T): -20 - 60 °C
Weight & dimensions Receiver dimensions (WxDxH): 94 x 97 x 24 mm Transmitter dimensions (WxDxH): 94 x 97 x 24 mm Transmitter weight: 166 g Receiver weight: 164 g
Packaging data Package height: 80 mm Package weight: 570 g Package width: 149 mm Package depth: 199 mm
Packaging content Cables included: IR Quick start guide: Yes AC adapter included: Yes
Ports & interfaces HDMI in: 1 RJ-45 input ports: 1 USB ports quantity: 2 HDMI version: 2.0 3.5 mm (1/8-inch) in: Yes Remote (IR) output: 1 USB connector type: Micro-USB DC-in jack: Yes Connectivity technology: Wired Number of HDMI outputs: 1 RJ-45 output ports: 1 Remote (IR) input: 1 3.5 mm (1/8-inch) out: Yes
