Technical details
Package volume: 3379.2 cm³
Features
Maximum resolution: 3840 x 2160 pixels
Supported video modes: 480i, 2160p, 576i, 720p, 576p, 480p, 1080p, 1080i
Wall mountable: Yes
Audio formats supported: LPCM

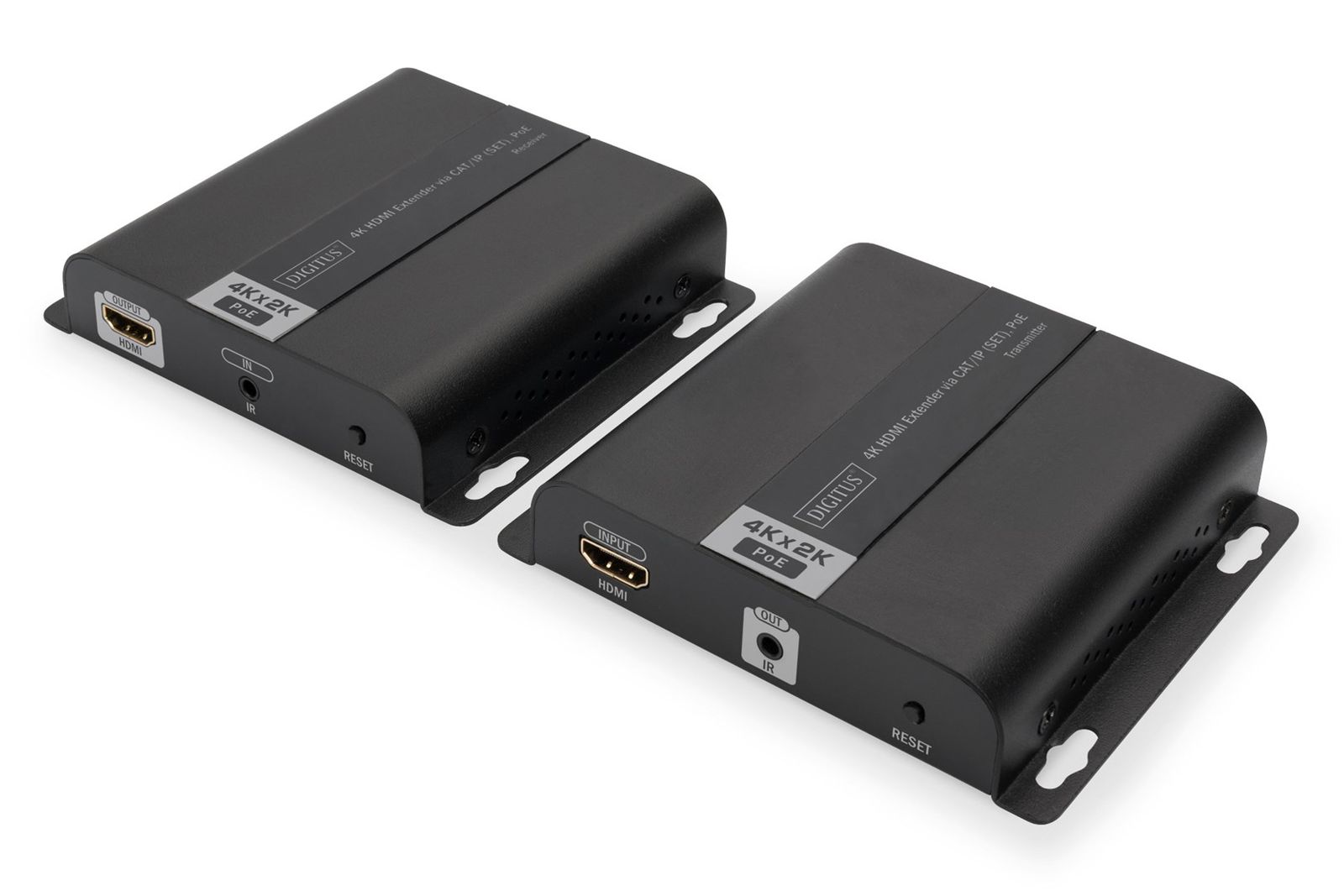

Type: AV transmitter & receiver
Bandwidth: 10.2 Gbit/s
Material: Metal
HDCP version: 1.4
Cable types supported: Cat6, Cat5, Cat5e
Colour depth: 24 bit
Maximum transfer distance: 120 m
Product colour: Black
Power
Operating voltage: 5 V
Power over Ethernet (PoE): Yes
Operational conditions
Operating temperature (T-T): 0 - 60 °C
Weight & dimensions
Height: 24 mm
Depth: 119 mm
Width: 94 mm
Weight: 280 g
Packaging data
Package weight: 850 g
Package width: 176 mm
Package height: 80 mm
Package depth: 240 mm
Packaging content
IR receiver included: Yes
IR blaster included: Yes
Manual: Yes
Ports & interfaces
Remote (IR) output: 1
Remote (IR) input: 1
DC-in jack: Yes
RJ-45 input ports: 1
Connectivity technology: Wired
Number of HDMI outputs: 1
HDMI in: 1
RJ-45 output ports: 1
HDMI version: 1.4
Logistics data
Master (outer) case height: 420 mm
Master (outer) case volume: 43092 cm³
Products per master (outer) case: 10 pc(s)
Master (outer) case length: 380 mm
Master (outer) case width: 270 mm
Master (outer) case gross weight: 8.5 kg
UK Trade Tariff code: 85176200
Safety warning
Warnings: Store in a dry place, avoid contact with water., Do not dismantle the appliance, it may contain small parts that can cause damage., The product may contain electronic components. Do not dispose of in the normal household waste.
