Holzmann ALA2 230V Anlaufautomatik für Absaugung

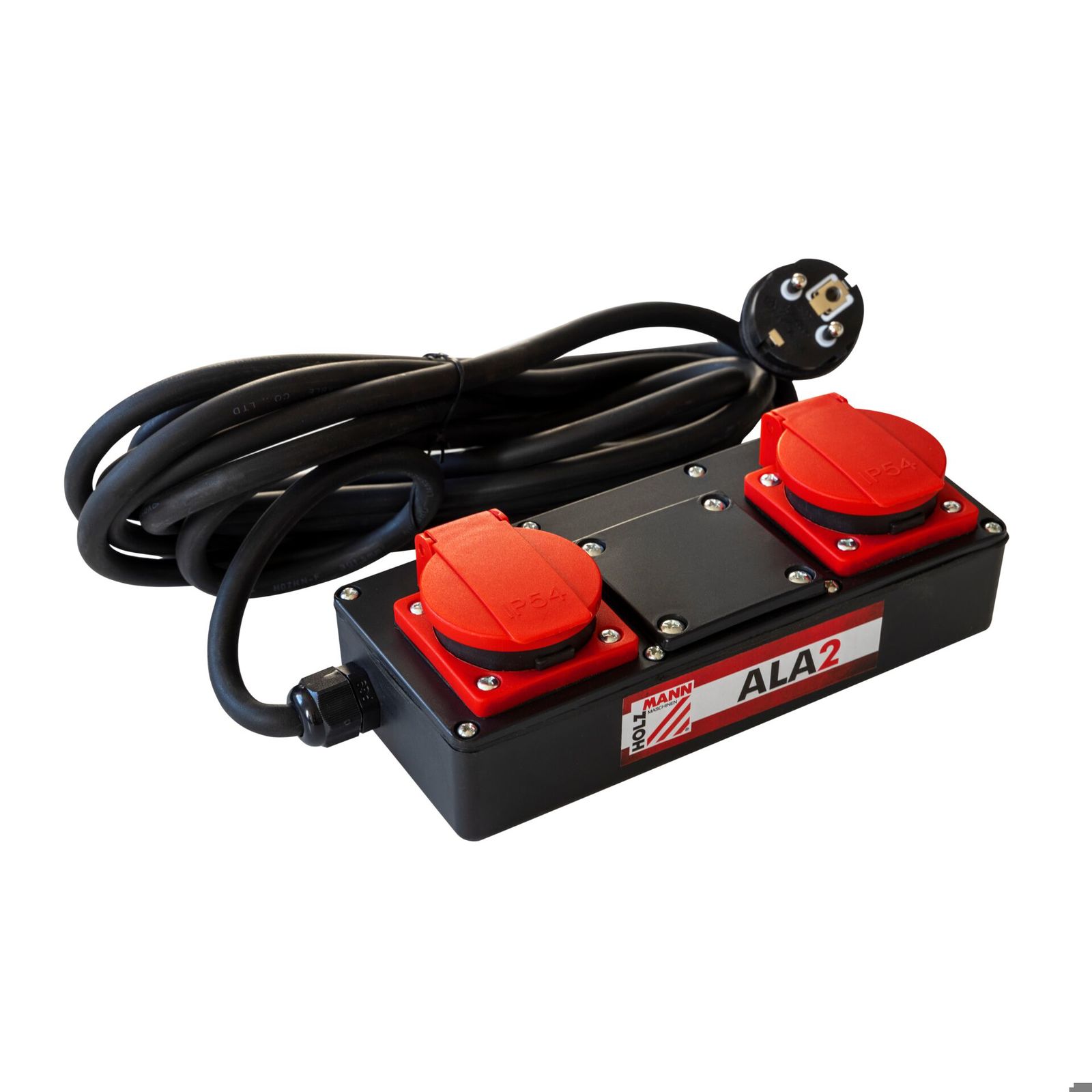

Holzmann ALA2 230V automatic start-up for extraction unit

With the HOLZMANN automatic start-up system for extraction units, your extraction unit can be switched on and off automatically once the woodworking machine has been activated (both on a 230 V basis). Connect the woodworking machine and the extraction unit to the automatic start-up and you are ready to go. (The prerequisites for the extraction system should be checked beforehand to ensure smooth operation).

Features:

• A processing machine can be connected to the automatic start-up system
• After switching on the working machine (master), the second connected machine, e.g. extraction unit (slave), is enabled after 2-4 seconds
• After switching off the working machine, the second machine is also switched off after 3-4 seconds
• Automatic start-up for 2 230V machines
• Max. Rated power 3680 W (16A)
• Connection cable H07RN-F 3G1.5mm² with 4 m length
• Master-slave socket with switch-on / switch-off delay of 2 - 4 seconds

Technical data

• Voltage: 230 V / 50 Hz
• Cable length: 4 m
• Protection class: IP44
• Installation dimensions: 195 x 80 x 65 mm
• Extraction system slave Switching delay: 2 - 4 s
• Mains input: 230 V
• Weight: approx. 0.93 kg
