Holzmann DHM330_230V debljača - hoblerica

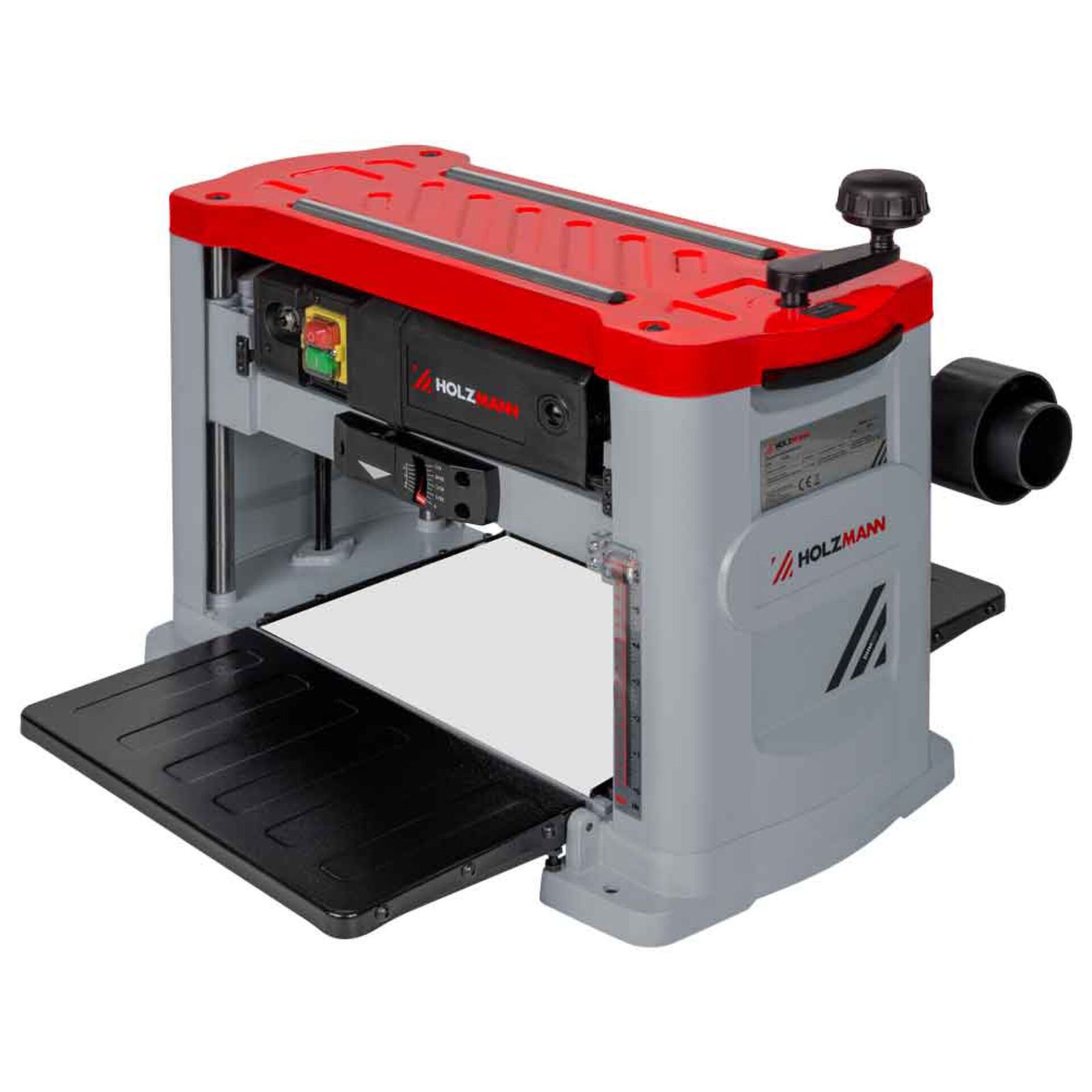

Holzmann DHM330, thickness planer 230 V

The DHM330 planes pieces of wood up to a width of 330 mm and a height of 152 mm exactly to size. You can easily adjust the clearance height using a hand crank and read the chip removal directly from the scale. With an engine power of 1500 W and a feed rate of 6 m/min, the machine operates powerfully and efficiently. Thanks to the extraction connection and compact design, it is suitable for both the workshop and mobile use.

Features:

• Engine power: 1500 W, 230 V / 50 Hz
• Planer width: max. 330 mm
• Passage height: max. 152 mm
• Chip removal:
  • up to 152 mm width: max. 2.8 mm
  • over 152 mm width: max. 0.8 mm
• Planer shaft: Ø 50 mm, 2 knives, speed 8500 rpm
• Table size: 330 × 235 mm
• Feed speed: 6 m/min
• Sound power level (LwA): approx. 96.8 dB(A)
• Sound pressure level (LpA): approx. 83.8 dB(A)
• Weight: 31 kg net, 33 kg gross
• Dimensions: 630 x 580 x 485 mm (set-up size)
• Extraction connection: Ø 65.5 / 101.5 mm
