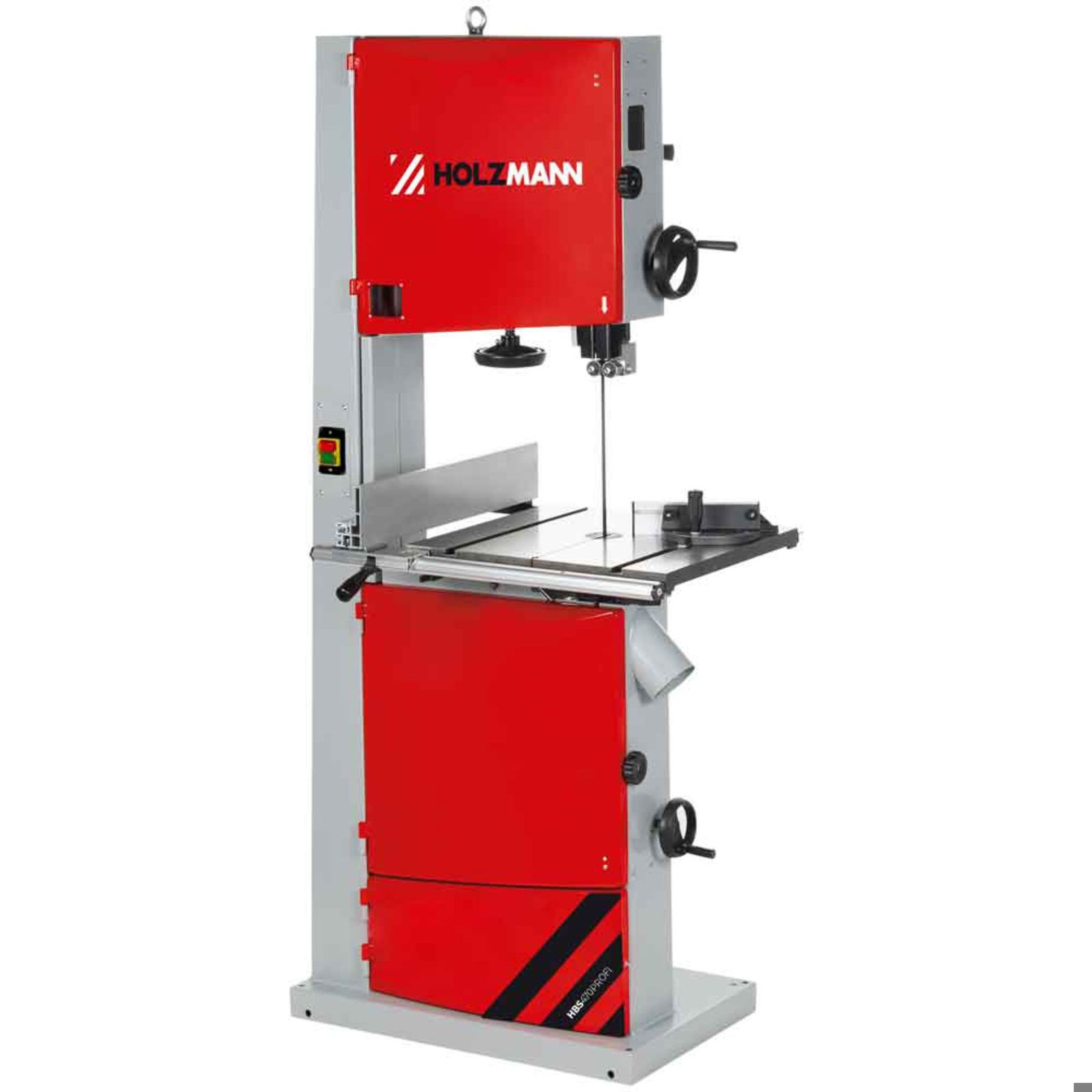

Holzmann HBS470PROFI_400V Holzbandsäge

Holzmann HBS470PROFI_400V Wood band saw

Features:

• Voltage: 400V (a 400V connection is required)
• For professional use with cast wheels
• Rubberized and precision-bearing cast spoke impellers enable quiet operation
• Aluminium cover with quick release
• Measurement scale at the stop and magnifier for accurate reading and adjustment
• Cutting height adjustment easily and quickly adjustable via handwheel- rack combination
• Saw band width from 6 mm to 25 mm possible
• Machine height: 186 cm
• 2 speeds (380 or 820 m/min)
• Angle adjustment table from 0°-45° via interlocking guide
• 2 connection options for extraction (Ø 100 mm)

Technical data:

• Motor power S6: 2100 W
• Motor power S1 (continuous operation): 1500 W
• Voltage: 400 V
• Swivel range: -10° +45°
• Table size: 530 x 480 mm
• Reach: 465 mm
• Table height: 960 mm
• Suction connection: 100 mm
• Cutting capacity: max cutting height 90°: 285 mm
• Cutting width at the parallel stop: 390 mm
• Saw band: 3454 mm
• Impeller diameter: 470 mm
• Saw band width: 6-25 mm
• Saw band speed 380/820 m/min
• Net weight: 162 kg

Please note that:
Electrical connection work / installations may only be carried out by qualified specialist personnel.
