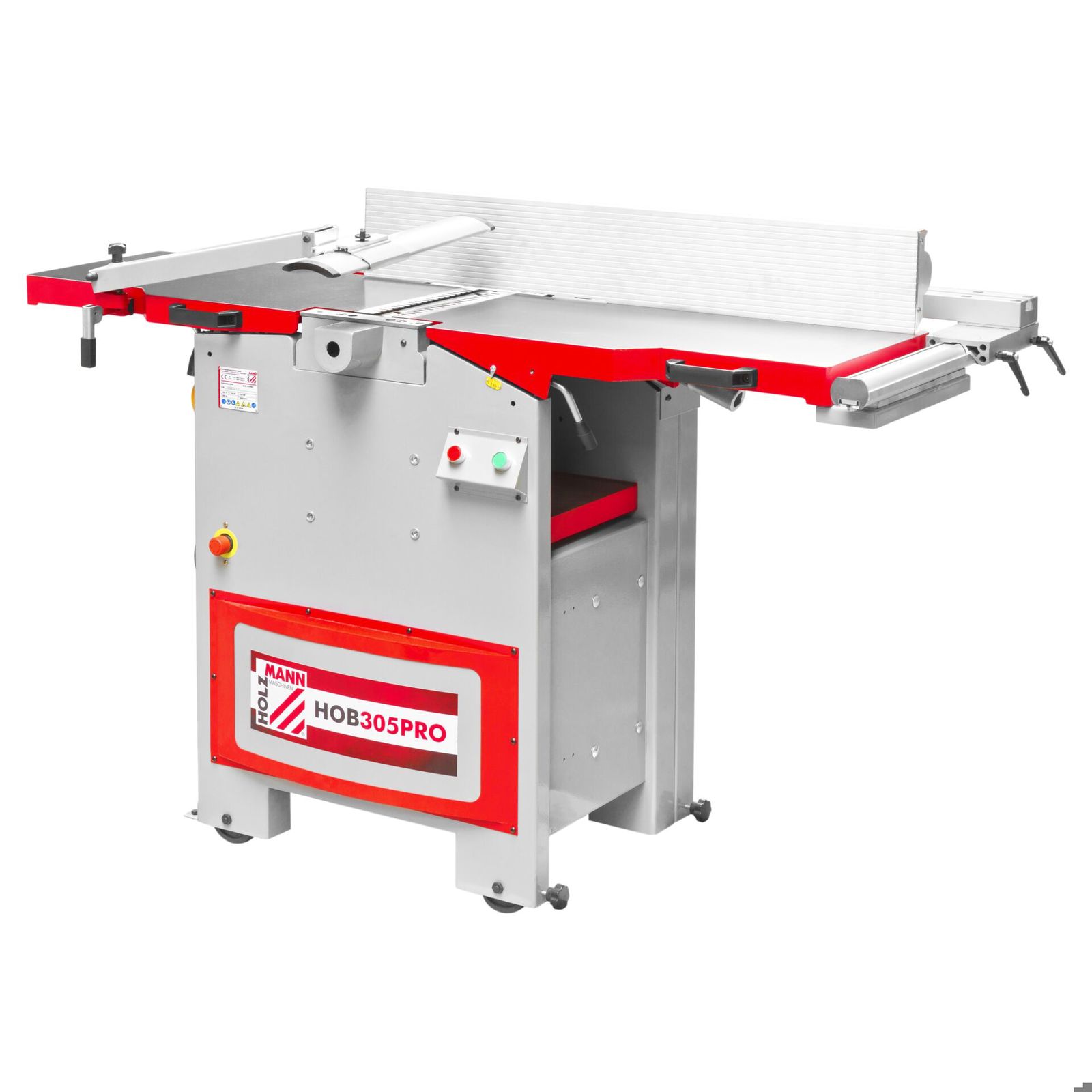

Holzmann HOB305PRO 400V Combined Planer and Thicknesser

Holzmann HOB305PRO 400V Dressing Thicknessing Planer

The dressing stop at the end of the table reduces the need for space on the side, and the integrated travel device also ensures free space in the workshop when no planning is required. The 4-knife planing shaft ensures a perfect planing pattern, whether hard or soft wood. Due to the 32 cm - planing knife shaft and a thickness of 22 cm, even larger projects can be easily realized with the HOB305PRO_400V.

Features:

• 4-blade shaft enables optimum planing result
• Smooth central height adjustment of the thickness table
• High-quality production of the machine by laser cutting technology
• Re-sharpening strip knives
• Spiral-toothed feed roller

Scope of delivery:

• Dressing stop
• Planer blade mounted
• Knife adjustment gauge
• Assembly tool
• Sliding wood

Technical data:

• Voltage: 400V (400V connection required)
• Dressing maximum chip removal: 3 mm
• Dressing fence: 1000 x 160 mm
• Swivel range dressing stop: 90° - 45°
• Dressing table size: 1512 x 400 mm
• Dressing table height: 900 mm
• Power: 2200 watts
• Feed speed: 5.5
• Extraction connection: 100 mm
• Table size: 585 x 300 mm
• Maximum chip removal: 3 mm
• Planing shaft diameter: 74 mm
• Planing shaft speed: 4000 U/min
• Number of knives: 4
• Weight: 258 kg

Please note:
Electrical connection work / installations may only be carried out by qualified specialists.
