Technical details
Compliance certificates: RoHS
Power
Input voltage: 5 V
Power consumption: 472 mA
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
Weight: 410 g
Width: 108 mm
Height: 148 mm
Depth: 103 mm
Certification: CE, RoHS
Performance
Built-in display: No
Product colour: Black
LED indicators: Status
Packaging data
Cables included: USB
Ports & interfaces
Connectivity technology: Wired
Standard interfaces: Keyboard wedge, RS-232, RS-485, USB
Logistics data
Harmonized System (HS) code: 84716070
Scanning

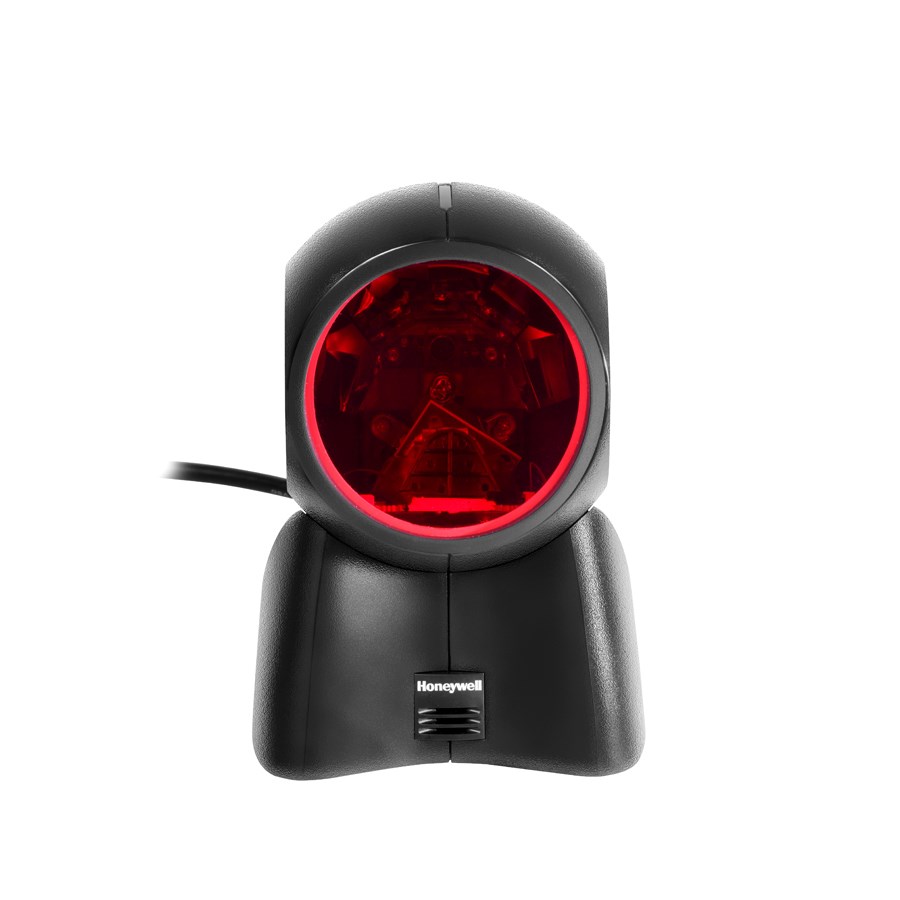

Type: Handheld bar code reader
Read rate (max): 1120 reads/s
2D (matrix & stacked) barcodes supported: QR Code, PDF417, Data Matrix
Light levels (direct sunlight): 4842 - 100000 lx
Yaw reading angle: 0 - 70°
Working distance: 32.7 cm
Sensor type: Laser
Pitch reading angle: 0 - 60°
Scanner type: 1D/2D
Linear (1D) barcodes supported: GS1 DataBar Omnidirectional, Code 39, U.P.C.
