Technical details
Master (outer) cases per pallet layer: 6 pc(s)
General Product Safety Regulation (GPSR) URL: https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Compliance certificates: CECP
Replacement cartridges: CF289A HP 89A Black Original LaserJet Toner Cartridge (5,000 pages);CF289X HP 89X High Yield Black Original LaserJet Toner Cartridge (10,000 pages);CF289Y HP 89Y Extra High Yield Black Original LaserJet Toner Cartridge (20,000 pages)
Features
Page description languages: PCL 6, PostScript 3, PDF 1.7
Printer fonts: TrueType, PostScript, Windows, Scalable, PCL
Maximum duty cycle: 150000 pages per month
Recommended duty cycle: 2000 - 7500 pages per month
Number of print cartridges: 1
Printing colours: Black
HP segment: Business
Certification: CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032:2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU, Issue 6 Class A. Other EMC approvals as required by individual countries.
Design
Colour display: Yes
Market positioning: Business
Control type: Buttons
Built-in display: Yes
Display diagonal: 6.86 cm (2.7")
Product colour: White
Display: LCD
Power
Power consumption (ready): 7.6 W
Power consumption (printing): 601 W
Energy Star Typical Electricity Consumption (TEC): 1.257 kWh/week
AC input voltage: 220 - 240 V
AC input frequency: 50/60 Hz
Power consumption (off): 0.06 W
Power consumption (PowerSave): 0.06 W
Operational conditions
Operating temperature (T-T): 10 - 32.5 °C
Storage temperature (T-T): -20 - 40 °C
Operating relative humidity (H-H): 10 - 80%
Weight & dimensions
Height: 299 mm
Pallet dimensions (W x D x H): 1200 x 1000 x 2481 mm
Weight: 11.5 kg
Width: 418 mm
Depth: 376 mm
Network
Mobile printing technologies: Mopria Print Service, Google Cloud Print, HP ePrint, Apple AirPrint
Network ready: Yes
Bluetooth: Yes
Security algorithms: HTTPS, IPSec, SNMPv3, SSL/TLS, EAP-PEAP, FIPS 140, EAP-TLS
Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Wi-Fi: Yes
System requirements
Other operating systems supported: Android, iOS
Linux operating systems supported: Yes
Windows operating systems supported: Windows 8.1 Enterprise, Windows 7 Professional, Windows 7, Windows 8 Enterprise, Windows 8.1 Pro, Windows 10 Pro, Windows 7 Starter, Windows 7 Ultimate, Windows 8.1, Windows 10 Enterprise, Windows 10, Windows 8 Pro, Windows 7 Enterprise, Windows 8
Mac operating systems supported: MacOS, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.12 Sierra
Performance
Sound pressure level (printing): 55 dB
Sound power level (printing): 6.9 dB
Internal memory: 512 MB
Built-in processor: Yes
Memory slots: 1
Maximum internal memory: 1536 MB
Processor frequency: 1200 MHz
Packaging data
Package width: 497 mm
Package height: 466 mm
Package depth: 398 mm
Package weight: 14.3 kg
Packaging content
Warranty card: Yes
Included cartridge capacity (black): 5 pages
Quick installation guide: Yes
Cables included: AC
Ports & interfaces
Standard interfaces: Ethernet, Wireless LAN, USB 2.0
Direct printing: Yes
USB port: Yes
USB 2.0 ports quantity: 3
Compatible operating systems: Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple macOS Sierra v10.12, Apple macOS High Sierra v10.13, Apple macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) - User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see http://www.hp.com/go/upd
Recommended system requirements: 2 GB available hard disk space; Internet connection; USB port; Internet browser; for additional OS hardware requirements.
2 GB available hard disk space; Internet connection or USB port; OS hardware requirements.
Manufacturer warranty: One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements.

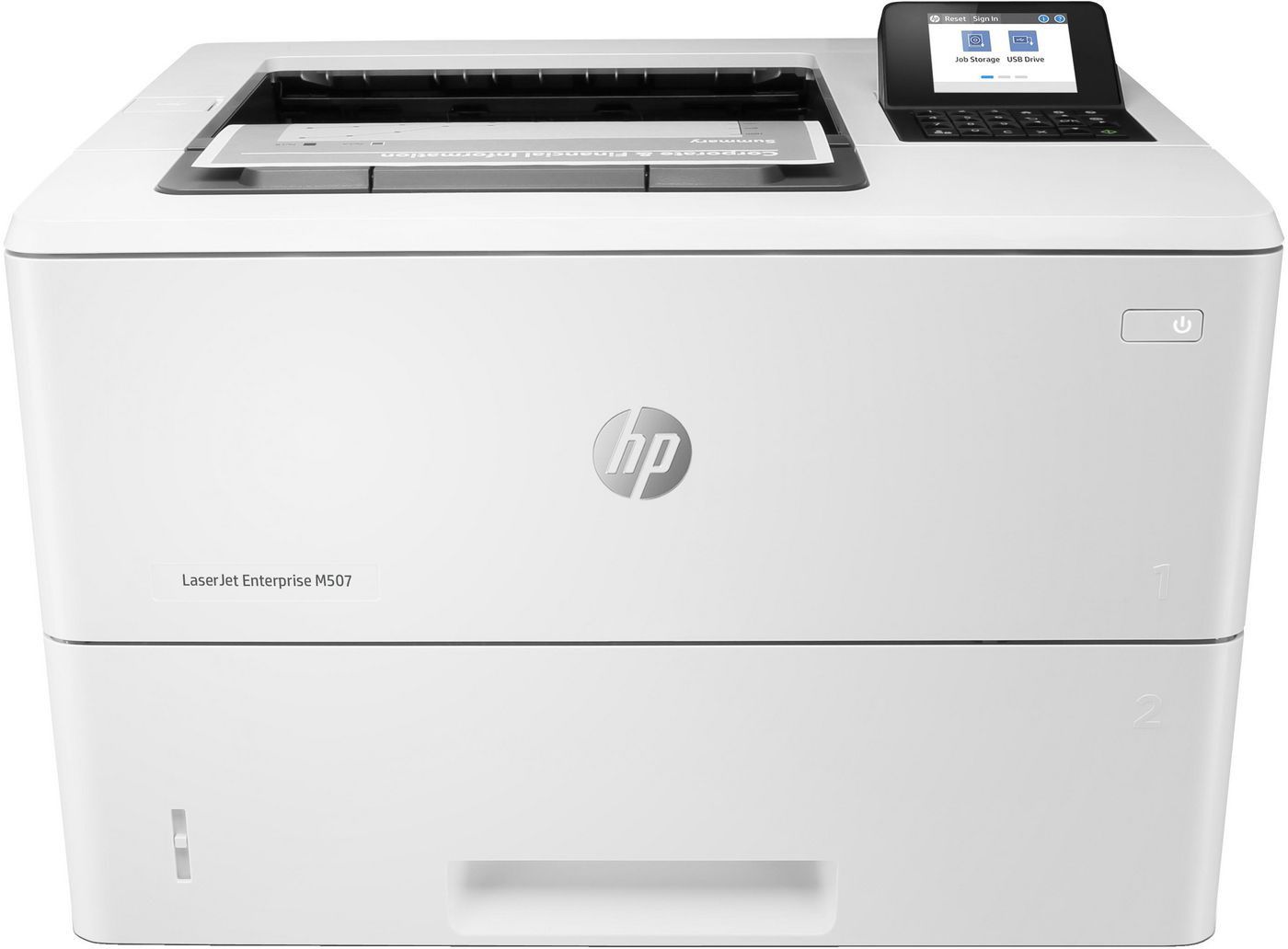

Box contents: HP LaserJet Enterprise M507dn Printer; HP Original LaserJet Toner Cartridge (5,000 pages); Regulatory flyer (CD replacement); Unpack flyer; Installation guide; Power cord; Warranty cards; Support flyers/number list
Other features
Recommended humidity operating range: 30 - 70%
Envelope feeder: No
Acoustic pressure emissions bystander (ready): 25 dB
Acoustic power emissions (ready): 39 dB
Typical electricity consumption (TEC) number: Blue Angel: 1.257 kWh/Week; Energy Star 3.0: 0.420 kWh/Week
Pallet dimensions (W x D x H) (imperial): 1198.9 x 1000.8 x 2481.6 mm (47.2 x 39.4 x 97.7")
Recommended operating temperature range (T-T): 15 - 27 °C
Pallet weight (imperial): 369.4 kg (814.3 lbs)
Printing: Mono printing
UNSPSC-code: 43212105
Processor frequency: 1.2 GHz
Printing
Watermark printing: Yes
Secure printing: Yes
Maximum resolution: 1200 x 1200 DPI
Print technology: Laser
Print margins (top, bottom, right, left): 4.3 mm
Colour: No
Duplex printing mode: Auto
Print speed (black, normal quality, A4/US Letter): 43 ppm
Print resolution black: 1200 x 1200 DPI
Time to first page (black, normal): 5.9 s
Duplex printing: Yes
Warm-up time: 150 s
Logistics data
Pallet gross weight: 369.4 kg
Layers per pallet: 5 pc(s)
Harmonized System (HS) code: 84433210
Input & output capacity
Maximum number of input trays: 5
Total number of input trays: 2
Total input capacity: 650 sheets
Total output capacity: 250 sheets
Maximum output capacity: 250 sheets
Paper tray 1 input capacity: 100 sheets
Paper tray 2 input capacity: 550 sheets
Multi-Purpose tray: Yes
Maximum input capacity: 2300 sheets
Multi-Purpose tray input capacity: 100 sheets
Paper handling
Paper tray media types: Plain paper, Card stock, Labels, Bond paper, Transparencies, Recycled paper, Envelopes, Rough paper
Paper tray media weight: 60 - 200 g/m²
Maximum ISO A-series paper size: A4
Custom media length: 127 - 355.6 mm
ISO B-series sizes (B0...B9): B5
Non-ISO print media sizes: Oficio, 16K
Custom media width: 76.2 - 215.9 mm
Envelopes sizes: C6, C5, DL, B5
Photo paper sizes: 10x15
ISO A-series sizes (A0...A9): A4, A6, A5
JIS B-series sizes (B0...B9): B5, B6
ISO C-series sizes (C0...C9): C5, C6
Safety warning
Warnings: Avoid contact with liquids and moisture., Do not cover the ventilation openings during operation., Connect the appliance to a grounded electrical outlet.
Brand-specific features
HP Dynamic security: Yes
HP GTIN (EAN/UPC): 199642200159
HP ePrint: Yes
HP Auto-On/Auto-Off: Yes
HP GTIN (EAN/UPC) with options: (ABT) 195122490829; (ABY) 195122490836; (B19) 195122490874; (BAZ) 195122490898
Sustainability
Doesn't contain: Mercury
Sustainability compliance: Yes
Sustainability certificates: Blue Angel, ENERGY STAR
Sustainable technologies and materials: Forest First product
Carbon footprint
Total carbon footprint (kg of CO2e): 240
Carbon emissions, logistics (kg of CO2e): 3
Carbon emissions, manufacturing (kg of CO2e): 141
Carbon emissions, end-of-life (kg of CO2e): 3
Total carbon emissions, w/o use phase (kg of CO2e): 96
