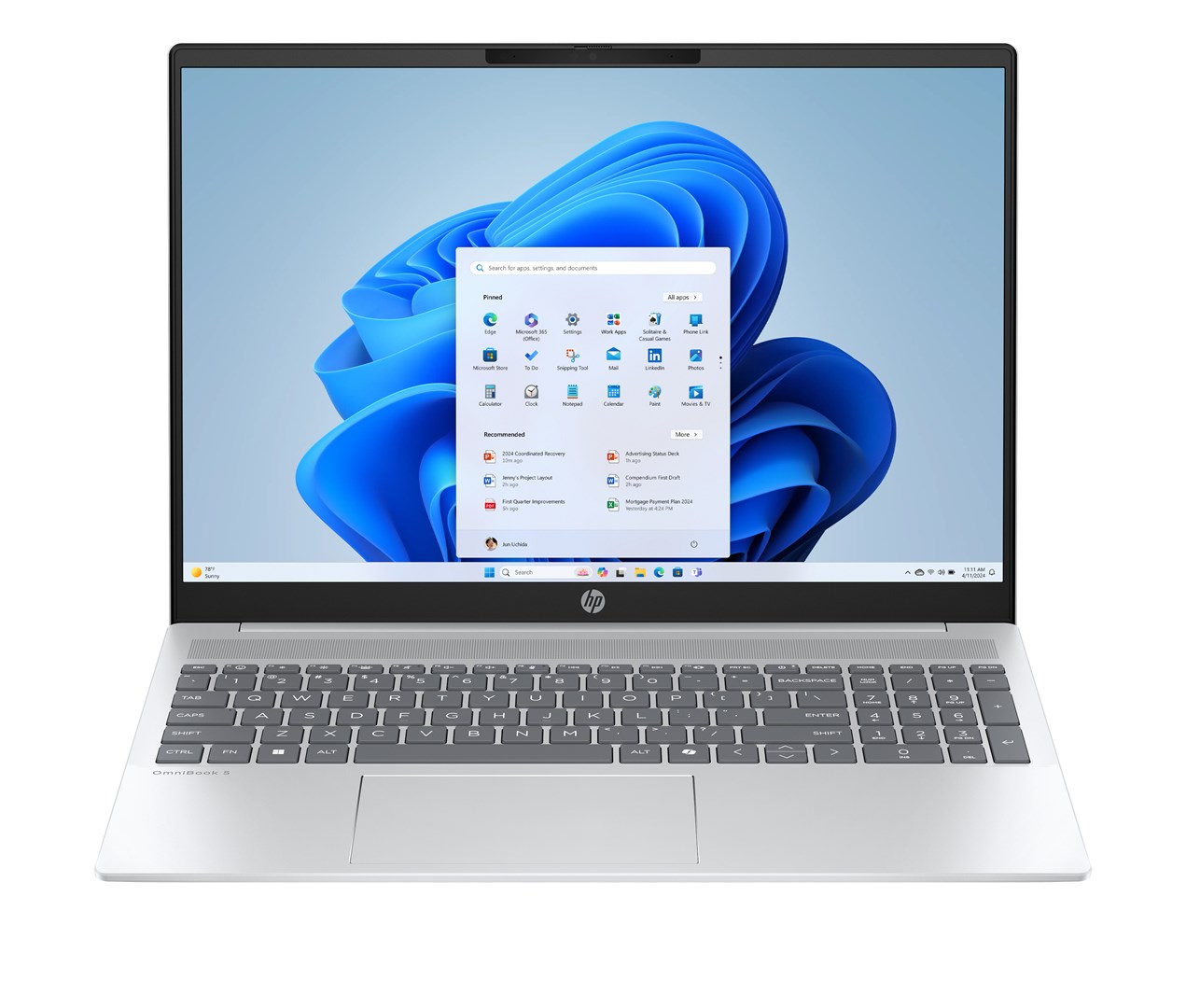

HP OmniBook 5 AI 16-af1216nw Intel Core Ultra 7 255U Laptop 40.6 cm (16) 2K Display 16 GB LPDDR5x SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home AI PC Silver

Technical details
General Product Safety Regulation (GPSR) URL: https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true

Processor
Efficient-core Max Turbo Frequency: 4.2 GHz
Efficient cores: 8
Processor cache type: L3
Performance-core Max Turbo Frequency: 5.2 GHz
Low Power Efficient-core Max Turbo Frequency: 2.4 GHz
Processor manufacturer: Intel
Performance-core base frequency: 2 GHz
Performance cores: 2
Processor generation: Intel Core Ultra (Series 2)
Maximum turbo power: 57 W
Low Power Efficient-cores: 2
Processor base power: 15 W
Low Power Efficient-core Base Frequency: 700 MHz
Efficient-core base frequency: 1.7 GHz
Processor threads: 14
Processor cores: 12
Processor boost frequency: 5.2 GHz
Processor model: 255U
Processor cache: 12 MB
Processor family: Intel Core Ultra 7

Graphics
Discrete graphics card: No
On-board graphics card family: Intel® Graphics
On-board graphics card: Yes
On-board GPU manufacturer: Intel
On-board graphics card model: Intel® Graphics
Discrete graphics card model: Not available

Memory
Memory layout (slots x size): Not available
Internal memory: 16 GB
Memory clock speed: 7467 MHz
Memory form factor: On-board
Maximum internal memory: 16 GB
Internal memory type: LPDDR5x-SDRAM

Design
Colour name: Glacier Silver
Original brand name: HP
Product type: Laptop
Introduction year: 2025
Product colour: Silver
Product design: Modern

Power
USB Power Delivery (USB PD): Yes
USB Type-C charging port: Yes
AC adapter frequency: 50 - 60 Hz
AC adapter power: 65 W
AC adapter input voltage: 100 - 240 V

Security
Password protection: Yes
Trusted Platform Module (TPM): Yes

Weight & dimensions
Depth: 254.8 mm
Height (front): 1.79 cm
Width: 357.7 mm
Weight: 1.77 kg

Network
Mobile network connection: No
WLAN controller model: Intel Wi-Fi 6E AX211
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
WLAN controller manufacturer: Intel
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Bluetooth version: 5.3
Antenna type: 2x2
Bluetooth: Yes

Performance
Motherboard chipset: Intel SoC

Packaging data
Package depth: 504 mm
Package width: 63 mm
Package weight: 2.52 kg
Package height: 305 mm

Packaging content
Keyboard included: Yes

Display
Panel type: OLED
Display response rise/fall: 0.2 ms
DCI-P3 coverage: 95%
Display bezel technology: Micro-Edge
Display diagonal (metric): 40.6 cm
Display brightness: 300 cd/m²
RGB colour space: DCI-P3
Colour gamut: 95%
Touchscreen: No
LED backlight: Yes
HD type: 2K
Display diagonal: 40.6 cm (16")
Native aspect ratio: 16:10
Display resolution: 1920 x 1200 pixels
Display surface: Gloss

Software
Pre-installed software: HP Audio Switch; HP Documentation; HP Setup Integrated OOBE Win10; HP Support Assistant; HP System Event Utility; McAfee LiveSafe™; Buy Office (sold separately); HP JumpStarts; Xerox® DocuShare® 90 da
Operating system installed: Windows 11 Home

Audio
Number of built-in speakers: 2
Number of microphones: 2
Built-in speaker(s): Yes
Built-in microphone: Yes
Audio system: DTS:X Ultra

Storage
Storage media: SSD
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
SSD capacity: 512 GB
Number of SSDs installed: 1
Total SSDs capacity: 512 GB
Optical drive type: No
Total storage capacity: 512 GB

Ports & interfaces
USB Sleep-and-Charge: Yes
USB Type-C DisplayPort Alternate Mode: Yes
HDMI version: 2.1
Microphone in: Yes
USB Sleep-and-Charge ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Combo headphone/mic port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Camera
Front camera HD type: Full HD
Front camera resolution: 1920 x 1080 pixels
Front camera: Yes

Battery
Number of battery cells: 3
Fast charging: Yes
Fast charging time (50%): 30 min
Battery life (max): 13 h
Battery capacity: 59 Wh
Battery technology: Lithium Polymer (LiPo)

Keyboard
Pointing device: Touchpad
Numeric keypad: Yes
Full-size keyboard: Yes
Keyboard backlit: Yes
Manufacturer warranty: 2-Year (2/2/0) Limited Warranty includes 2 years of parts and labor. No on-site repair available. Terms may vary by country. Some limitations and exclusions apply.

Other features
UNSPSC-code: 43211503

Brand-specific features
HP Software provided: HP 3D DriveGuard; HP Audio Switch; HP CoolSense; HP JumpStart; HP Support Assistant
HP Audio Boost: Yes
HP Artificial Intelligence: AI PC
HP Support Assistant: Yes
HP segment: Home
HP Connection Optimizer: Yes
HP Imagepad: Yes
HP speaker type: HP Dual Speakers
HP GTIN (EAN/UPC): 886112880644

Sustainability
Sustainability compliance: Yes
Sustainable technologies and materials: 50% post-consumer recycled plastic

Neural processor unit (NPU)
Windows Studio effects support: Yes
AI software frameworks supported by NPU: ONNX RT, DirectML, OpenVINO, Windows ML
NPU performance up to: 12 TOPs
Sparsity support: Yes
Neural processor unit (NPU): Intel AI Boost
