Design
Stackable: Yes
Product colour: White
Rack mounting: Yes
Form factor: 1U
Power
Power consumption note: Maximum: 100-127V: 790W 200-220V: 760W Idle: 100-127V: 60W 200-220V: 100W
Power source: AC
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 760 W
Power supply included: Yes
Security
SSH/SSL support: Yes
IGMP snooping: Yes
Authentication: Port-based authentication
Access Control List (ACL): Yes
Authentication type: RADIUS
DHCP features: DHCP snooping
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Operating altitude: 0 - 3000 m
Storage relative humidity (H-H): 15 - 90%
Operating relative humidity (H-H): 15 - 95%
Management features
ARP inspection: Yes
Switch layer: L2+
Switch type: Managed
System event log: Yes
Cloud-managed: Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
Weight & dimensions
Width: 402.8 mm
Depth: 442.5 mm
Height: 44 mm
Weight: 4.9 kg
Network
Rate limiting: Yes
Auto-sensing: Yes
Flow control support: Yes
Link aggregation: Yes
Port mirroring: Yes
Spanning tree protocol: Yes
Networking standards: IEEE 802.3u, IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3at, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1D, IEEE 802.3z, IEEE 802.1x, IEEE 802.3bt, IEEE 802.1AX, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1s
Auto MDI/MDI-X: Yes
VLAN support: Yes
Full duplex: Yes
10G support: Yes
Performance
Physical stacking (units): 4
Internal memory: 1024 MB
Processor model: ARM Cortex-A9
Built-in processor: Yes
Flash memory: 512 MB
Processor frequency: 800 MHz
Memory type: DDR3-SDRAM
Protocols
IPv4 FIB entries: 32
IPv6 FIB entries: 32
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
Ports & interfaces
10G Ethernet (copper) ports quantity: 2
SFP+ module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 48

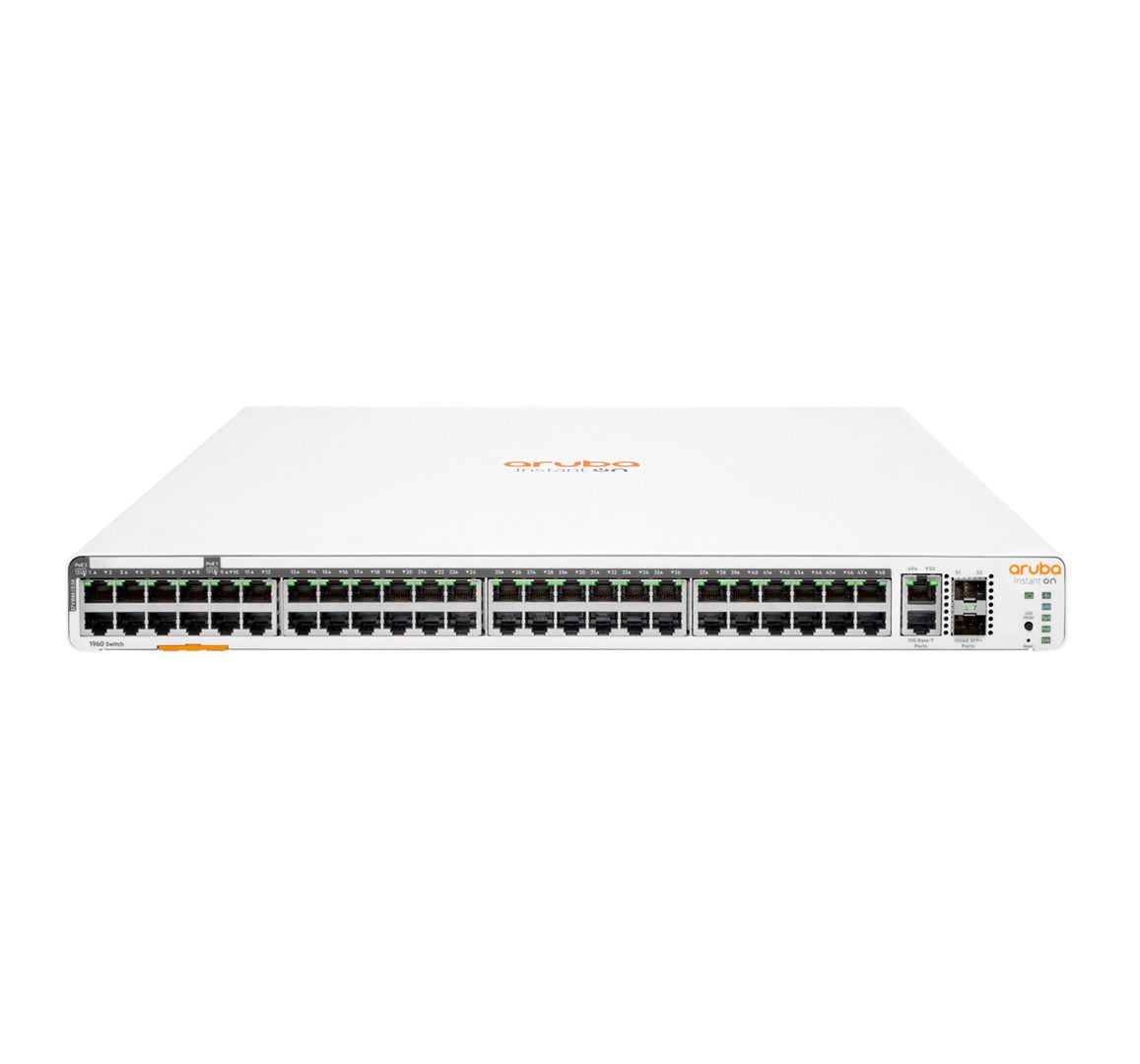

I/O ports: 48 RJ-45 autosensing 10/100/1000 BASE-T ports with 8 ports of IEEE 802.af/at/bt CL6 PoE and 40 ports of IEEE 802.af/at CL4 PoE (IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T, IEEE 802.an 10 GBASE-T); Duplex: 100 BASE-TX: half or full; 1000 BASE-T: full only 10 GBASE-T: full only 2 SFP+ 10 GbE ports 2 RJ-45 autosensing 100/1000/10 GBASE-T ports
Other features
Dimensions (W x D x H) (imperial): 402.8 x 442.5 x 43.9 mm (15.9 x 17.4 x 1.73")
Performance management: HPE Networking Instant On Cloud; Web browser; SNMP Manager
Memory and processor: Single-Core ARM v7 Cortex-A9 @800 MHz; 1 GB DDR3; 512 MB NAND flash; Packet buffer size: 1.5 MB
Weight (imperial): 4.9 kg (10.8 lbs)
Logistics data
Harmonized System (HS) code: 85176990
Data transmission
Latency (10-100 Mbps): 4.4 µs
Latency (10 Gbps): 1.1 µs
Jumbo frames: 9216
Latency (1 Gbps): 2.2 µs
Throughput: 131 Mpps
Packet buffer memory: 1.5 MB
MAC address table: 16000 entries
Jumbo frames support: Yes
Switching capacity: 176 Gbit/s
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 600 W
Multicast features
Multicast support: Yes
Safety warning
Warnings: The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself.
