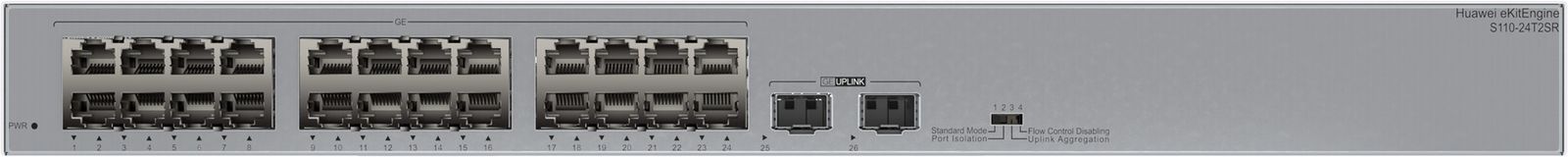

HUAWEI eKit S110 Series S110-24T2SR Unmanaged L2 Gigabit Ethernet (10 /100 /1000) 1U Grey

Design
Product colour: Grey
LED indicators: Yes
Form factor: 1U
Rack mounting: Yes

Power
Power source: AC
Power consumption (max): 17 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply included: Yes

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Non-operating altitude: 0 - 5000 m
Operating altitude: 0 - 5000 m
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Management features
Switch type: Unmanaged
Switch layer: L2

Weight & dimensions
Weight: 2 kg
Height: 90 mm
Width: 550 mm
Depth: 260 mm

Network
10G support: No
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Combo SFP ports quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission
Switching capacity: 52 Gbit/s
Forwarding rate: 38.69 Mpps
MAC address table: 8000 entries

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Safety warning
Warnings: Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
