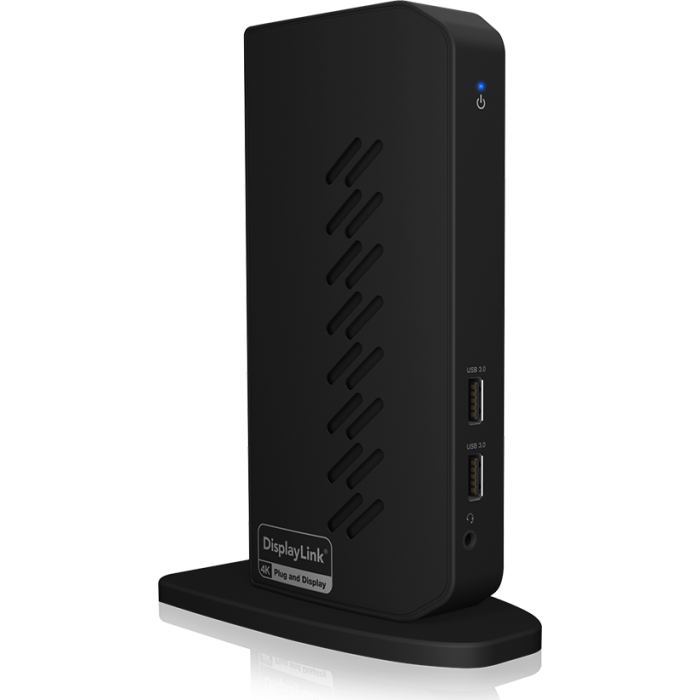

IcyBox IB-DK2252AC 12-in-1 USB-C /A Docking Station with DisplayLink

The ICYBOX IB‑DK2252AC docking station is a versatile solution that elevates your laptop or tablet to the level of a full workstation. It connects via USB-C (DisplayLink) and connects up to three displays (2× HDMI and 2× DisplayPort), allows you to connect peripherals via six USB 3.0 ports, provides a stable network connection via an RJ-45 Gigabit Ethernet port, and supports up to 65W charging via USB-C Power Delivery. The vertical design with a sturdy stand saves desk space and allows for natural cooling. It includes a 3.5 mm audio jack for headphones/microphone and a USB‑B pass-through interface. Plug‑and‑play operation is supported on Windows, macOS, and ChromeOS — ideal for offices, home setups, or advanced IT solutions.

Specifications:
Model: IB‑DK2252AC
Device type: USB‑C docking station (vertical setup)
Connectivity: USB 3.2 Gen 1 (DisplayLink)
Video outputs:
2× HDMI (4K @60 Hz)
2× DisplayPort (4K @60 Hz)
Total video capacity: Dual 4K @60Hz with a single cable
USB ports: 6× USB 3.0 Type‑A
Network: 1× RJ‑45 Gigabit Ethernet (10/100/1000 Mbit/s)
Audio output: 3.5 mm combo (headphones/microphone)
USB‑B port: yes (for indirect connection)
USB‑C PD input: yes (for laptop power supply)
Plug & Play: yes
Hot‑Plug: yes
Vertical stand: yes (compact desktop setup)
Cooling: passive, ventilation slots (top-down convection)
Compatibility: Windows, macOS, ChromeOS
Power supply: external power adapter (100–240 V AC)
Dimensions (W × H × D): 40 × 185 × 90 mm
Color: black
Material: ABS plastic, metal elements

Package contents: IB‑DK2252ACdocking station, power adapter, USB‑C cable, user manual
