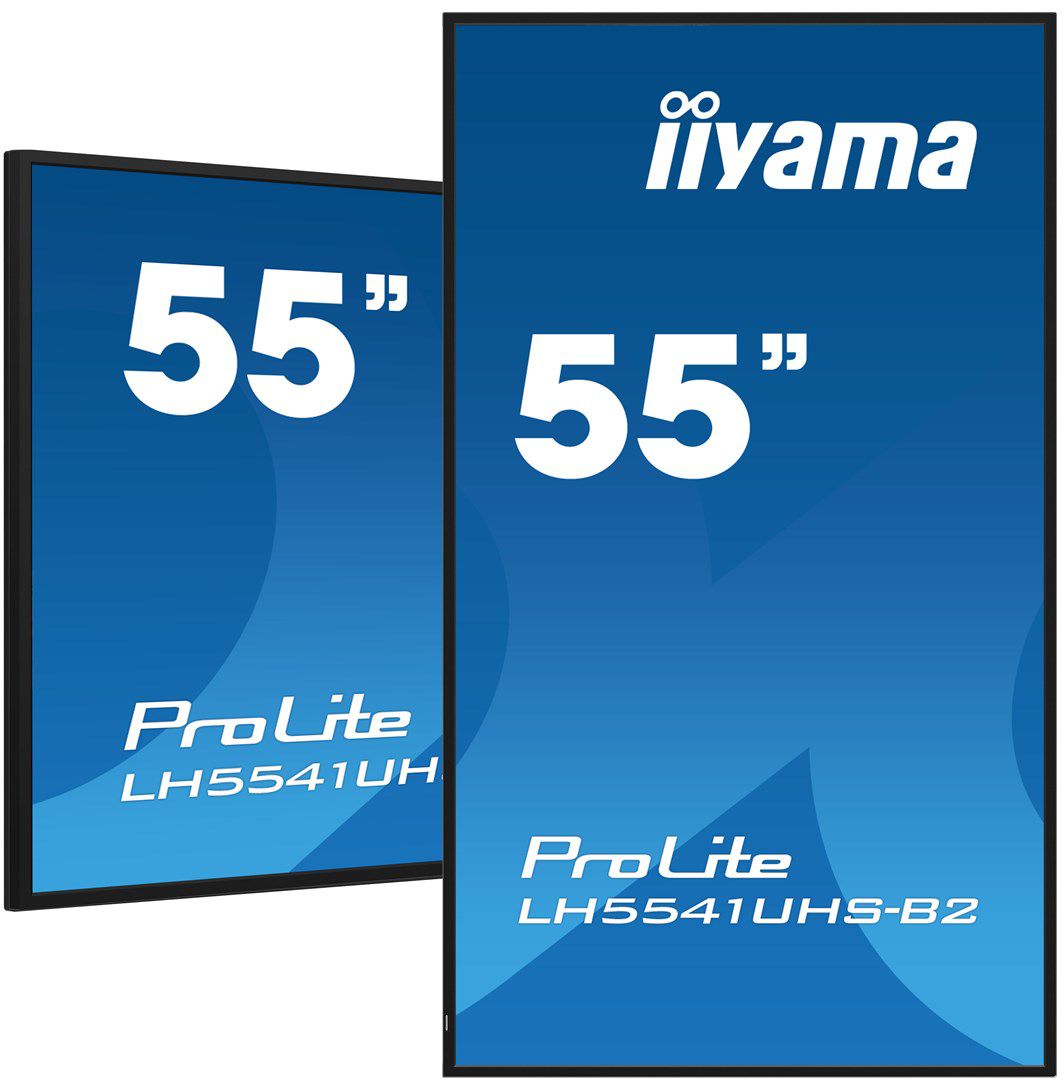

iiyama LH5541UHS-B2 Signage Display Kiosk design 138.7 cm (54.6) LCD 500 cd /m² 4K Ultra HD Black Built-in processor 24 /7

Technical details
Compliance certificates: TÜV mark, RoHS, CE, REACH, WEEE, CB, EAC
Audio in (mini jack): Yes
Playback media: Y
Sustainability certificates: ErP

Design
Product colour: Black
Panel mounting interface: 400 x 400
Product design: Kiosk design
VESA mounting: Yes
Placement supported: Indoor
Bezel colour: Black
Bezel width (side): 1.4 cm
Bezel width (bottom): 1.55 cm
Orientation: Horizontal/Vertical
Bezel width (top): 1.4 cm

Power
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (typical): 139 W
Energy efficiency scale: A to G
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 444 kWh

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions
Height: 710 mm
Width: 1237.5 mm
Weight: 14.3 kg
Depth: 55 mm
Display depth: 55 mm
Display weight: 14.3 kg
Display height: 710 mm
Display width: 1237.5 mm

Network
Wi-Fi: No
Ethernet LAN: Yes

Performance
On Screen Display (OSD) languages: English, German, Italian, Dutch, French, Russian, Japanese, Spanish
Number of OSD languages: 11
HDCP: Yes
On Screen Display (OSD): Yes
Purpose: Universal
Mean time between failures (MTBF): 50000 h
Operating hours (hours/days): 24/7
HDCP version: 2.2

Packaging data
Package depth: 130 mm
Package height: 845 mm
Package width: 1386 mm

Packaging content
Cables included: HDMI, AC, RS-232
Remote control included: Yes
Batteries included: Yes

Display
Viewing angle, horizontal: 178°
Touchscreen: No
HD type: 4K Ultra HD
Display resolution: 3840 x 2160 pixels
Contrast ratio (typical): 1200:1
Display diagonal: 138.7 cm (54.6")
Native refresh rate: 60 Hz
Display brightness: 500 cd/m²
Horizontal scan range: 30 - 83 kHz
Response time: 8 ms
Pixel pitch: 0.3155 x 0.3155 mm
Display number of colours: 1.07 billion colours
Viewing angle, vertical: 178°
Panel type: IPS
Display diagonal (metric): 139 cm
Native aspect ratio: 16:9
Display technology: LCD
Haze rate: 1%
Active display area (W x H): 1209.6 x 680.4 mm

Audio
RMS rated power: 20 W
Built-in speaker(s): Yes
Number of built-in speakers: 2

Ports & interfaces
PC Audio in: Yes
VGA (D-Sub) input ports: 1
Ethernet LAN (RJ-45) ports: 1
DVI port: Yes
USB ports quantity: 1
HDMI ports quantity: 3
RS-232C: Yes
Remote (IR) output: 1
Remote (IR) input: 1

Other features
Quick start guide: Yes
Power supply type: Internal
Housing material: Metal
Cable management: Yes

Logistics data
Harmonized System (HS) code: 85285210

Computer system
Processor model: V810
Built-in processor: Yes
Computer system: Yes
Internal memory: 2 GB
Internal storage capacity: 16 GB
