Technical details
Playback media: Y
Compliance certificates: EAC, UKCA, REACH, RoHS, CE, TÜV mark, WEEE
Sustainability certificates: ErP
Design
Bezel colour: Black
Product colour: Black
VESA mounting: Yes

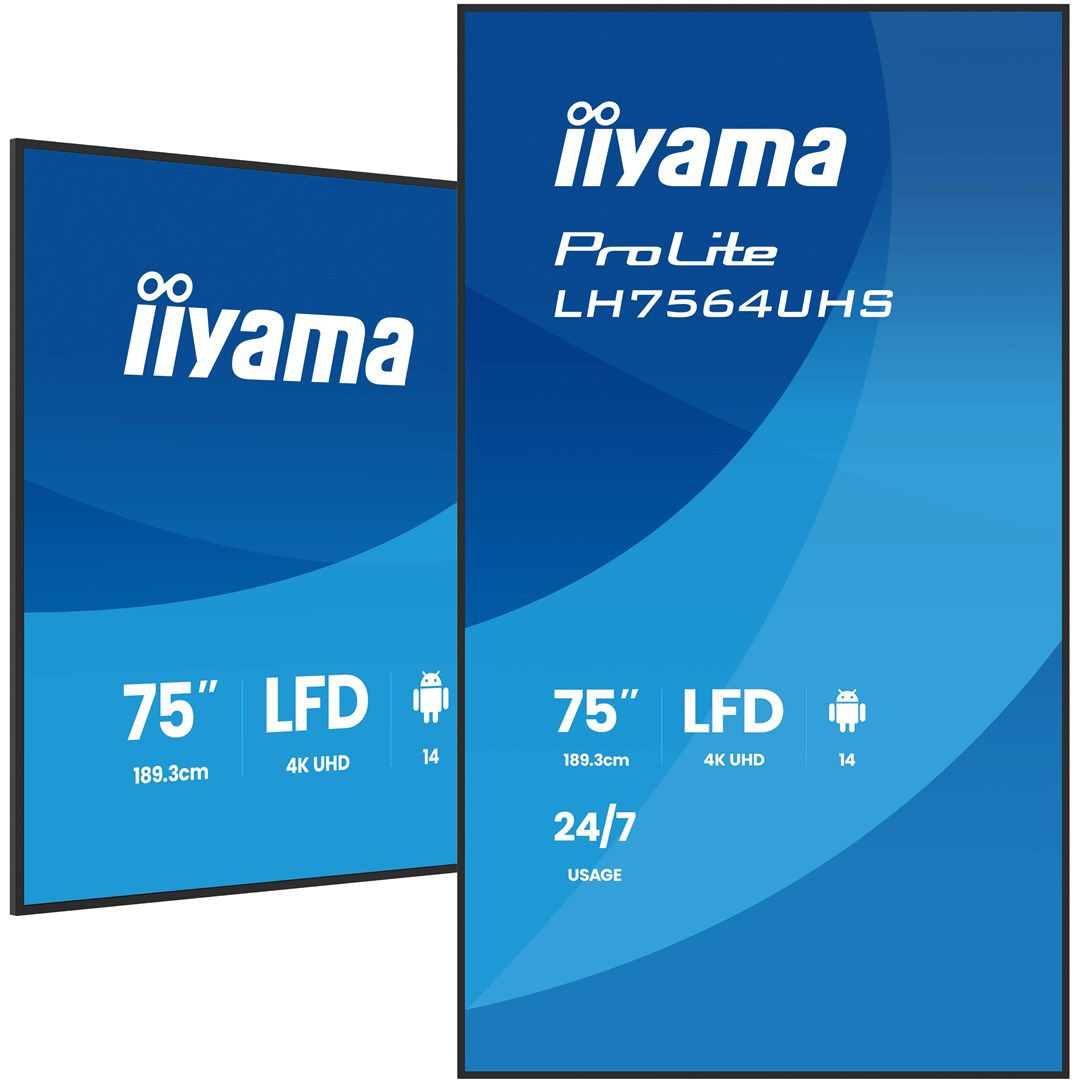

Product design: Digital signage flat panel
Panel mounting interface: 500 x 500 mm
Placement supported: Indoor
Bezel width (bottom): 1.28 cm
Bezel width (side): 1.28 cm
Orientation: Horizontal/Vertical
Bezel width (top): 1.28 cm
Anti-glare screen: Yes
Power
AC input frequency: 50/60 Hz
Power consumption (off): 0.3 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
Power consumption (typical): 219 W
Energy efficiency scale: A to G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 219 kWh
Energy efficiency class (SDR): G
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
Weight: 27.7 kg
Depth: 68.8 mm
Height: 957.1 mm
Width: 1679 mm
Display height: 957.1 mm
Display depth: 68.8 mm
Display weight: 27.7 kg
Display width: 1679 mm
Network
Ethernet LAN: Yes
Wi-Fi: Yes
Performance
On Screen Display (OSD) languages: Finnish, Spanish, Japanese, Russian, Czech, Danish, Swedish, German, Italian, Dutch, English, Norwegian, Polish, Traditional Chinese, French
HDCP: Yes
On Screen Display (OSD): Yes
Purpose: Universal
Mean time between failures (MTBF): 50000 h
Number of OSD languages: 15
Operating hours (hours/days): 24/7
HDCP version: 1.4/2.0
Packaging data
Package depth: 177 mm
Package weight: 39.1 kg
Package height: 1112 mm
Package width: 1840 mm
Packaging content
Cables included: HDMI, AC, RS-232
Mounting kit: Yes
Remote control included: Yes
Batteries included: No
Display
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Viewing angle, horizontal: 178°
Panel type: VA
Display diagonal (metric): 189.5 cm
Display diagonal: 190.5 cm (75")
Horizontal scan range: 57 - 62 kHz
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, vertical: 178°
Touchscreen: No
Pixel pitch: 0.43 x 0.43 mm
Display number of colours: 1.07 billion colours
Native aspect ratio: 16:9
Active display area (W x H): 1650.2 x 928.3 mm
Display brightness: 500 cd/m²
Native refresh rate: 60 Hz
Number of displays: 1
Haze rate: 25%
Audio
Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W
Ports & interfaces
USB port: Yes
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.0
USB version: 2.0
HDMI ports quantity: 2
USB Type-C DisplayPort Alternate Mode: Yes
USB Power Delivery (USB PD): Yes
RS-232C: Yes
USB Power Delivery up to: 15 W
Remote (IR) output: 1
USB ports quantity: 2
Remote (IR) input: 1
Other features
Quick start guide: Yes
Power supply type: Internal
Computer system
Operating system installed: Android
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Built-in processor: Yes
Processor architecture: ARM Cortex-A73
Operating system version: 14
Internal storage capacity: 32 GB
